77143 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

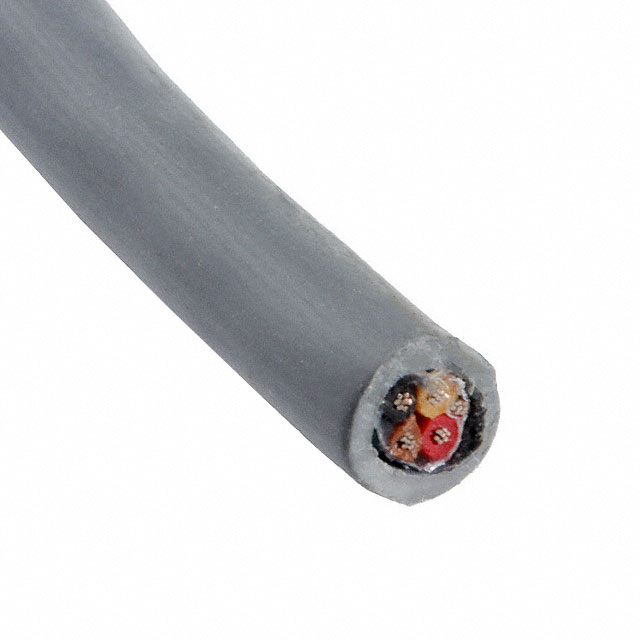

CABLE 4COND 14AWG SHLD
| Part | Shield Coverage | Shield Material | Features | Conductor Material | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Jacket (Insulation) Material | Cable Type | Conductor Insulation | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Biological Compatibility | Copper Tinned | Slate | 0.305 in | 7.75 mm | 600 V | 0.813 mm | 0.032 in | ISO 10993 | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | Foil | 41 | 30 | -50 °C | 105 ░C | 14.5 AWG | 4 | 304.8 m | 1000 ft |
ALPHA WIRE | 100 % | Aluminum | Biological Compatibility | Copper Tinned | Slate | 0.305 in | 7.75 mm | 600 V | 0.813 mm | 0.032 in | ISO 10993 | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | Foil | 41 | 30 | -50 °C | 105 ░C | 14.5 AWG | 4 |
