002205 Series

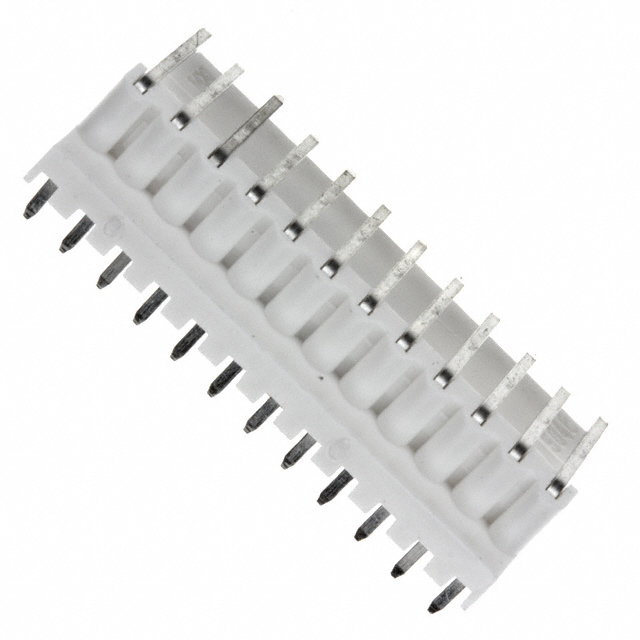

Headers & Wire Housings 2.54mm KK Hdr RA FricLK 5Sn 16Ckt

Manufacturer: Molex

Catalog

Headers & Wire Housings 2.54mm KK Hdr RA FricLK 5Sn 16Ckt

Catalog

Headers & Wire Housings 2.54mm KK Hdr RA FricLK 5Sn 16Ckt

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Shape	Contact Type	Contact Length - Post	Contact Length - Post	Number of Rows	Insulation Color	Termination	Connector Type	Insulation Material	Contact Length - Mating	Contact Length - Mating	Fastening Type	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Style	Number of Positions	Mounting Type	Contact Length - Post [x]	Contact Material	Insulation Height	Insulation Height	Contact Length - Post [x]

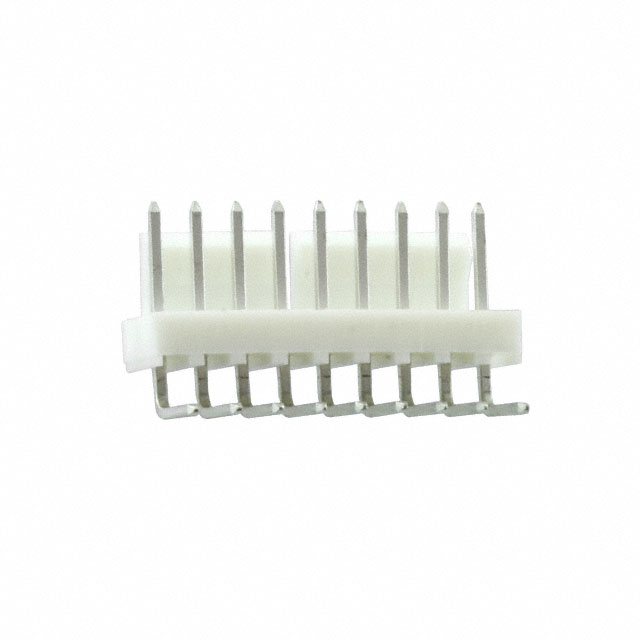

Molex 0022052111	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	0.1 "	2.54 mm	Tin	UL94 V-0	60 µin	1.52 Ám	Unshrouded	Square	Male Pin	0.124 in	3.15 mm	1	White	Solder	Header	Nylon Polyamide (PA)	9.37 mm	0.369 in	Push-Pull	0.13 in	3.3 mm	All	Board to Board Cable	11	Right Angle Through Hole
Molex 0022051122				0.098 in	2.5 mm	Tin	UL94 V-0	200 µin	5.08 µm	Shrouded - 1 Wall	Square	Male Pin		3.4 mm	1	Natural	Solder	Header	Nylon Polyamide (PA)	7.49 mm	0.295 in	Friction Lock			All	Board to Cable/Wire	12	Right Angle Through Hole	0.134 "	Brass

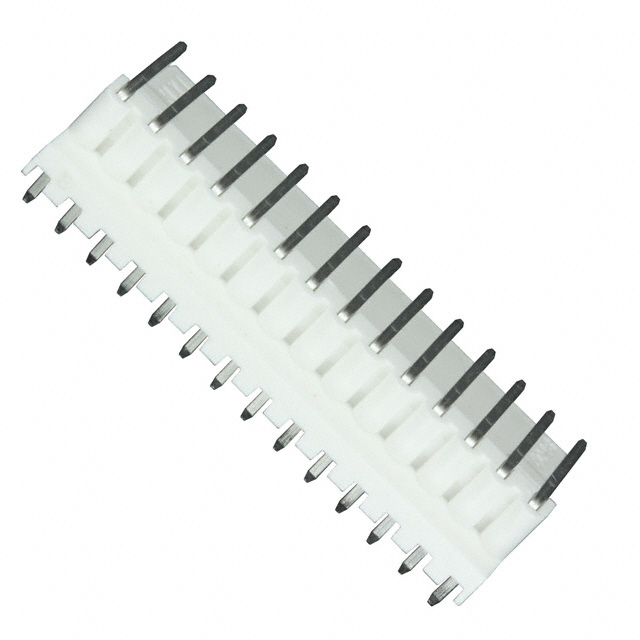

Molex 0022051142				0.098 in	2.5 mm	Tin	UL94 V-0	200 µin	5.08 µm	Shrouded - 1 Wall	Square	Male Pin		3.4 mm	1	Natural	Solder	Header	Nylon Polyamide (PA)	7.49 mm	0.295 in	Friction Lock			All	Board to Cable/Wire	14	Right Angle Through Hole	0.134 "	Brass

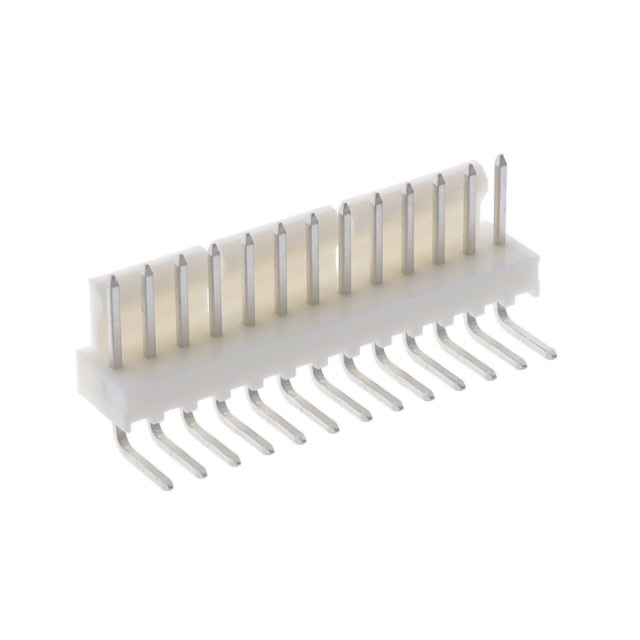

Molex 0022053131	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	0.1 "	2.54 mm	Tin	UL94 V-0	100 çin	2.54 çm	Shrouded - 1 Wall	Square	Male Pin	0.141 in	3.58 mm	1	White	Solder	Header	Nylon Polyamide (PA)	6.7 mm	0.264 in	Friction Lock			All	Board to Board Cable	13	Right Angle Through Hole		Brass	0.256 in	6.5 mm
Molex 0022052151	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	0.1 "	2.54 mm	Tin	UL94 V-0	60 µin	1.52 Ám	Unshrouded	Square	Male Pin	0.124 in	3.15 mm	1	White	Solder	Header	Nylon Polyamide (PA)	9.37 mm	0.369 in	Push-Pull	0.13 in	3.3 mm	All	Board to Board Cable	15	Right Angle Through Hole
Molex 0022053091	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	0.1 "	2.54 mm	Tin	UL94 V-0	100 çin	2.54 çm	Shrouded - 1 Wall	Square	Male Pin	0.141 in	3.58 mm	1	White	Solder	Header	Nylon Polyamide (PA)	6.7 mm	0.264 in	Friction Lock			All	Board to Board Cable	9	Right Angle Through Hole		Brass	0.256 in	6.5 mm
Molex 0022053211	2.54 m	100 in	Automotive General Purpose Medical Telecommunications	0.1 "	2.54 mm	Tin	UL94 V-0	100 in 100 çin	2.54 m 2.54 çm	Shrouded - 1 Wall	Square	Male Pin	0.141 in	3.58 mm	1	White	Solder	Header	Nylon Polyamide (PA)	6.7 mm	0.264 in	Friction Lock			All	Board to Board Cable	21	Right Angle Through Hole		Brass	0.256 in	6.5 mm

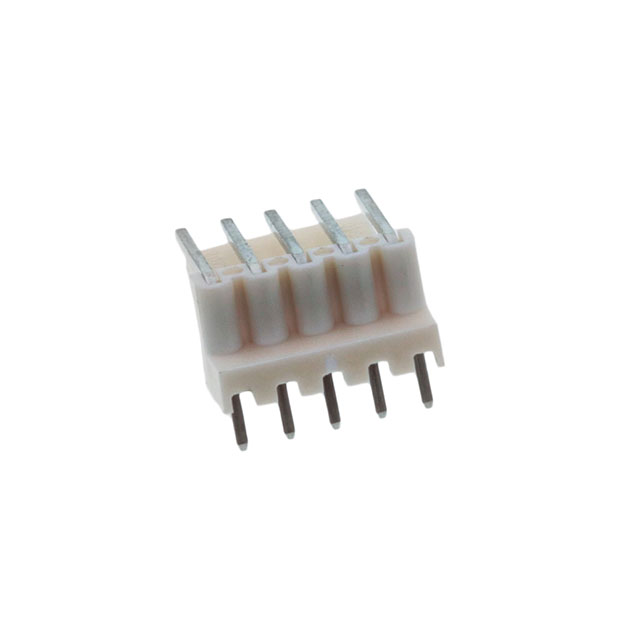

Molex 0022051052				0.098 in	2.5 mm	Tin	UL94 V-0	200 µin	5.08 µm	Shrouded - 1 Wall	Square	Male Pin		3.4 mm	1	Natural	Solder	Header	Nylon Polyamide (PA)	7.49 mm	0.295 in	Friction Lock			All	Board to Cable/Wire	5	Right Angle Through Hole	0.134 "	Brass

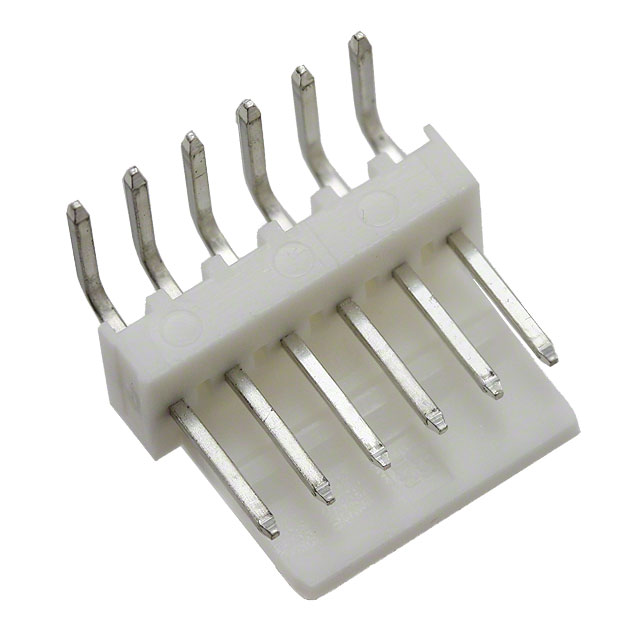

Molex 0022057068	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	0.1 "	2.54 mm	Tin	UL94 V-0	60 µin	1.52 Ám	Shrouded - 1 Wall	Square	Male Pin			1	Natural	Solder	Header	Nylon 6/6 Polyamide (PA66)	6.7 mm	0.264 in	Friction Lock	0.228 "	5.8 mm	All	Board to Board Cable	6	Right Angle Through Hole	0.15 in	Brass			3.81 mm
Molex 0022057118	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	0.1 "	2.54 mm	Tin	UL94 V-0	60 µin	1.52 Ám	Shrouded - 1 Wall	Square	Male Pin			1	Natural	Solder	Header	Nylon 6/6 Polyamide (PA66)	6.7 mm	0.264 in	Friction Lock	0.228 "	5.8 mm	All	Board to Board Cable	11	Right Angle Through Hole	0.15 in	Brass			3.81 mm
