LM2557 Series
Manufacturer: Texas Instruments
Beta
⌘K
BOARD EVALUATION FOR LM25576
| Part | Main Purpose | Voltage - Input [Min] | Voltage - Input [Max] | Utilized IC / Part | Current - Output | Outputs and Type | Outputs and Type | Board Type | Voltage - Output | Frequency - Switching | Regulator Topology | Supplied Contents | Voltage - Output [Max] | Voltage - Output [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

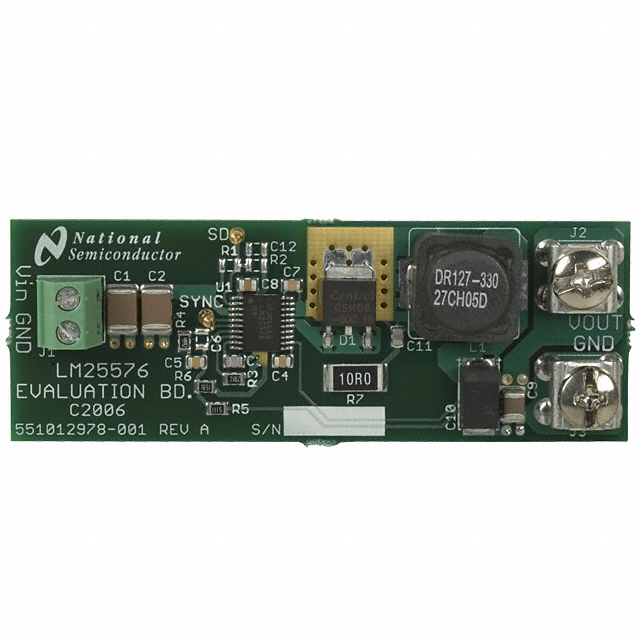

 Texas Instruments | DC/DC Step Down | 7 V | 42 V | LM25576 | 3 A | Non-Isolated | 1 | Fully Populated | 5 V | 300 kHz | Buck | Board(s) | ||

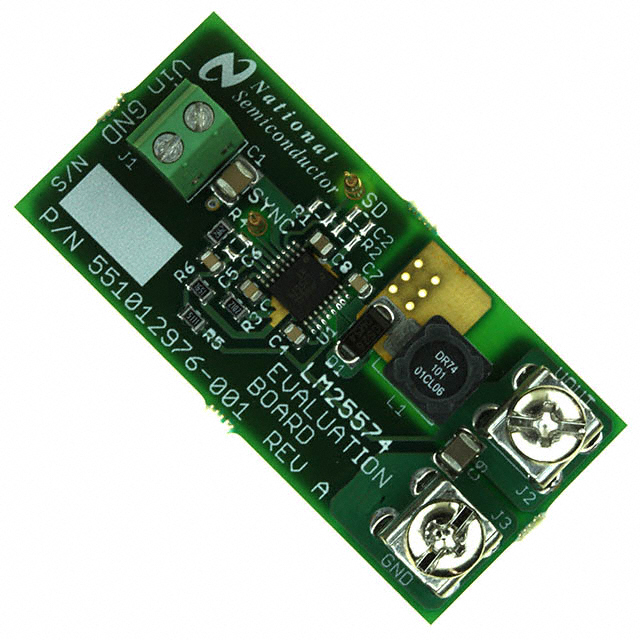

 Texas Instruments | DC/DC Step Down | 7 V | 42 V | LM25574 | 500 mA | Non-Isolated | 1 | Fully Populated | 5 V | 300 kHz | Buck | Board(s) | ||

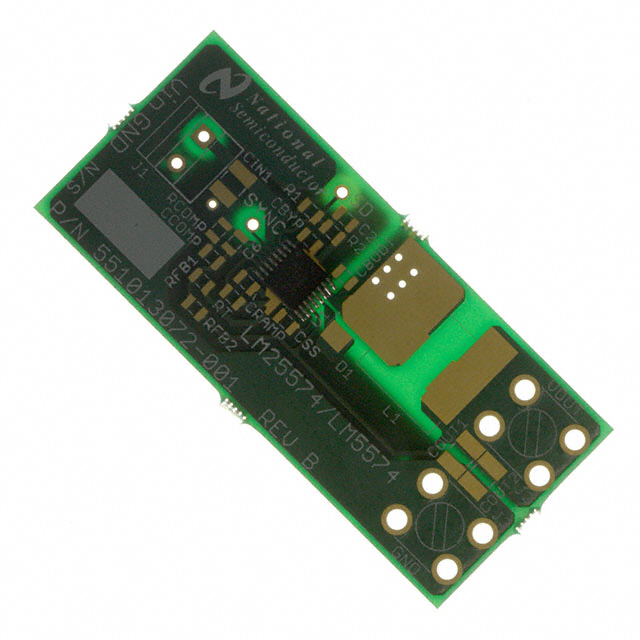

 Texas Instruments | DC/DC Step Down | 6 V | 42 V | LM25574 | 500 mA | Non-Isolated | 1 | Partially Populated - Main IC Only | Buck | Board(s) | 40 V | 1.23 V |
