SS-10-23 Series

Catalog

SWITCH ROTARY DIP DP3T 0.1A 5V

Part	Circuit	Mounting Type	Voltage Rating	Height Above Board	Height Above Board	Length	Length	Current Rating (Amps)	Electrical Life	Contact Material	Washable	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch	Pitch [x]	Contact Finish	Body Material	Termination Style	Actuator Type	Actuator Level	Height Above Board

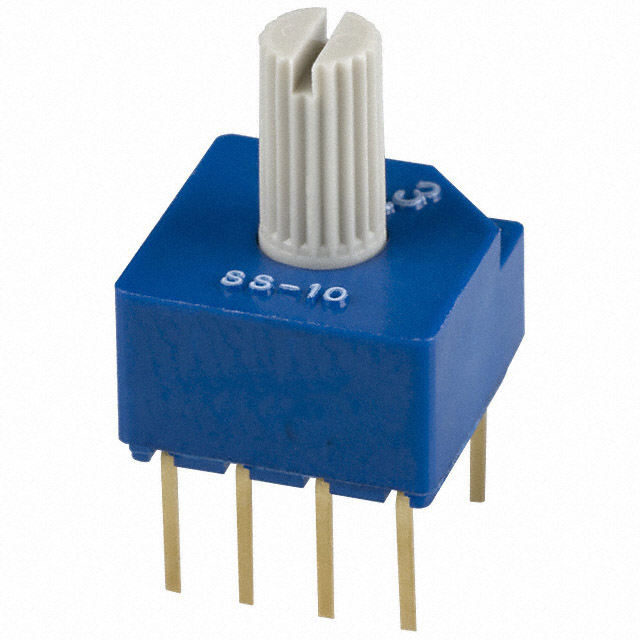

Nidec Components Corporation SS-10-23NP-LE	DP3T	Through Hole	5 V	0.535 in	13.59 mm	10 mm	0.394 in	100 mA	500 Cycles	Copper Alloy		70 °C	-25 °C	0.1 in	Full	2.54 mm	Gold	Polybutylene Terephthalate (PBT)	PC Pin	Rotary with Shaft	Raised

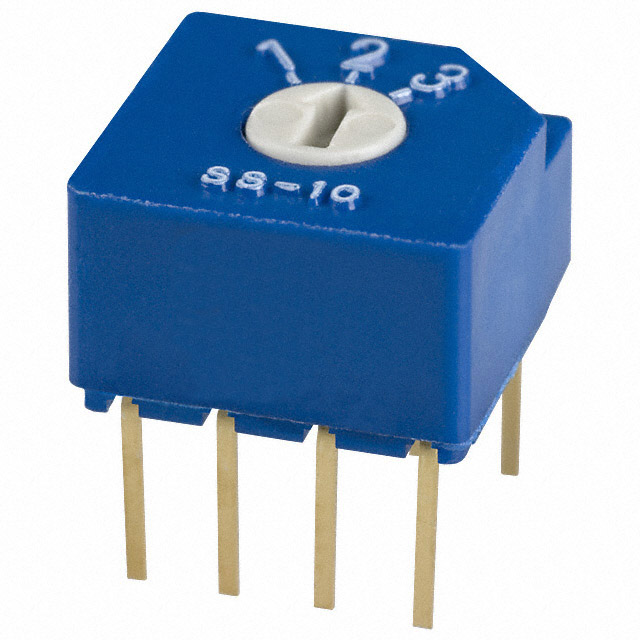

Nidec Components Corporation SS-10-23NPE	DP3T	Through Hole	5 V		0.275 in	10 mm	0.394 in	100 mA	500 Cycles	Copper Alloy		70 °C	-25 °C	0.1 in	Full	2.54 mm	Gold	Polybutylene Terephthalate (PBT)	PC Pin	Rotary for Tool	Flush Recessed	6.99 mm
