GFKC Series

Pluggable Terminal Blocks 10 Pos 7.62mm pitch Plug 24-12AWG Spring

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 10 Pos 7.62mm pitch Plug 24-12AWG Spring

Catalog

Pluggable Terminal Blocks 10 Pos 7.62mm pitch Plug 24-12AWG Spring

Part	Wire Strip Length	Material Flammability Rating	Insulation Height [custom]	Insulation Height [custom]	Housing Material	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Number of Positions	Voltage - IEC	Type	Positions Per Level	Plug Wire Entry	Current - UL	Features	Mounting Type	Color	Contact Mating Finish	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Style	Voltage - UL	Pitch	Pitch	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Current - IEC	Number of Levels
Phoenix Contact 1939840	10 mm	UL94 V-0	0.591 in	15 mm	Polyamide (PA) Nylon	2.5 mm˛	0.2 mm˛	12	1 kV	Plug Female Sockets	12	180 °	10 A	Mating Flange Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Green	Tin	12 AWG	26 AWG	Screwless - Push-In Spring	300 V	0.3 in	7.62 mm	2.5 mm²	0.2 mm²	12 A	1

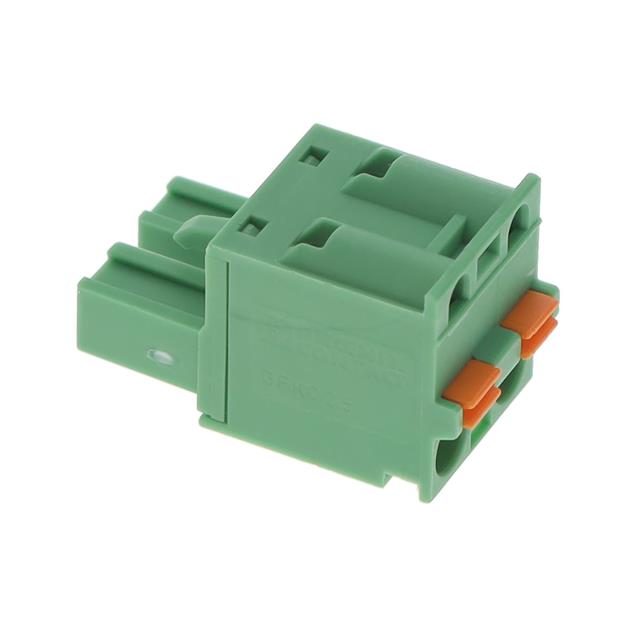

Phoenix Contact 1939413	10 mm	UL94 V-0	0.591 in	15 mm	Polyamide (PA) Nylon			2	1 kV	Plug Female Sockets	2	180 °	10 A		Free Hanging (In-Line)	Green	Tin	12 AWG	26 AWG	Screwless - Push-In Spring	300 V	0.295 in	7.5 mm	2.5 mm²	0.2 mm²	12 A	1
Phoenix Contact 1939824	10 mm	UL94 V-0	0.591 in	15 mm	Polyamide (PA) Nylon	2.5 mm˛	0.2 mm˛	10	1 kV	Plug Female Sockets	10	180 °	10 A	Mating Flange Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Green	Tin	12 AWG	26 AWG	Screwless - Push-In Spring	300 V	0.3 in	7.62 mm	2.5 mm²	0.2 mm²	12 A	1

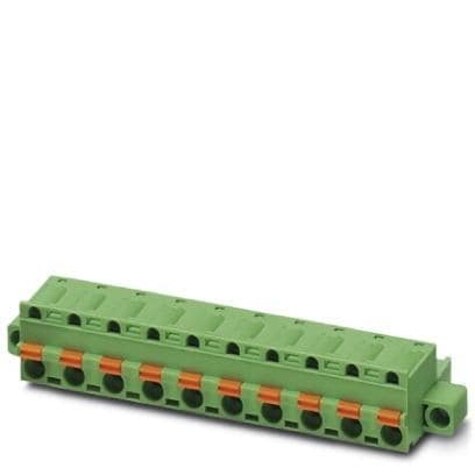

Phoenix Contact 1939785	10 mm	UL94 V-0	0.591 in	15 mm	Polyamide (PA) Nylon			6	1 kV	Plug Female Sockets	6	180 °	10 A	Mating Flange Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Green	Tin	12 AWG	26 AWG	Screwless - Push-In Spring	300 V	0.3 in	7.62 mm	2.5 mm²	0.2 mm²	12 A	1
Phoenix Contact 1939730	10 mm	UL94 V-0	0.591 in	15 mm	Polyamide (PA) Nylon	2.5 mm˛	0.2 mm˛	12	1 kV	Plug Female Sockets	12	180 °	10 A		Free Hanging (In-Line)	Green	Tin	12 AWG	26 AWG	Screwless - Push-In Spring	300 V	0.3 in	7.62 mm	2.5 mm²	0.2 mm²	12 A	1
Phoenix Contact 1939426									1 kV	Plug Female Sockets	3	180 °	10 A		Free Hanging (In-Line)	Green	Tin	12 AWG	26 AWG	Screwless - Push-In Spring	300 V	0.295 in	7.5 mm	2.5 mm²	0.2 mm²	12 A	1
