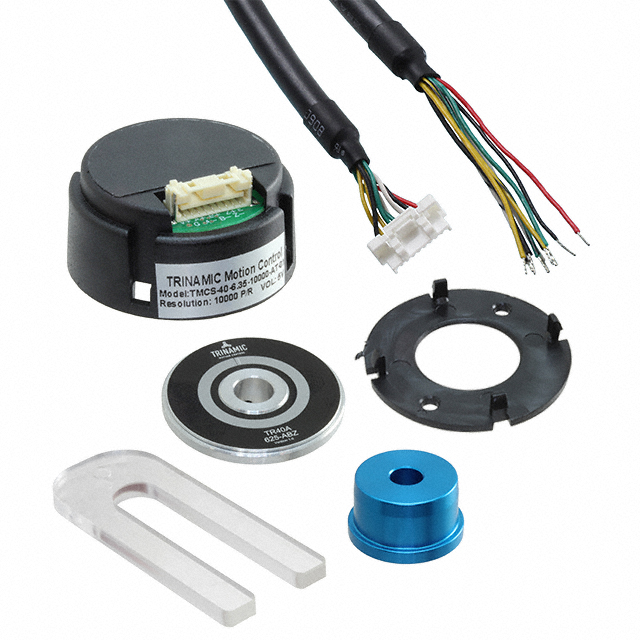

TMCS-40 Series

10.000 lines A/B/N encoder with 40mm housing diameter for 6.35mm shaft diameter

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

10.000 lines A/B/N encoder with 40mm housing diameter for 6.35mm shaft diameter

Part	Orientation	Encoder Type	Mounting Type	Pulses per Revolution	Output Type	Built in Switch	Detent	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Actuator Type	Actuator Type
Analog Devices Inc./Maxim Integrated TMCS-40-10K-KIT	Vertical	Optical	Chassis Mount	10000	TTL			5.5 V	4.5 V	Pin Header	Shaft
Analog Devices Inc./Maxim Integrated TMCS-40-6.35-10K-AT-01	Vertical	Incremental Optical	Chassis Mount	625	TTL			5.5 V	4.5 V	Cable with Connector	Open Center	6.35 mm

Catalog

10.000 lines A/B/N encoder with 40mm housing diameter for 6.35mm shaft diameter

Description

TMCS-40 is a low-cost and small-size optical incremental encoder for use with stepper motors and 3-phase PMSM/BLDC motors. It comes with high resolution optical code wheels with a resolution of up to 10K lines.APPLICATIONSStepper Motor FOCServo MotorsPrecision Motion ControlAutomated EquipmentRobotics
