9807 Series
Manufacturer: Belden Inc.
Beta
⌘K

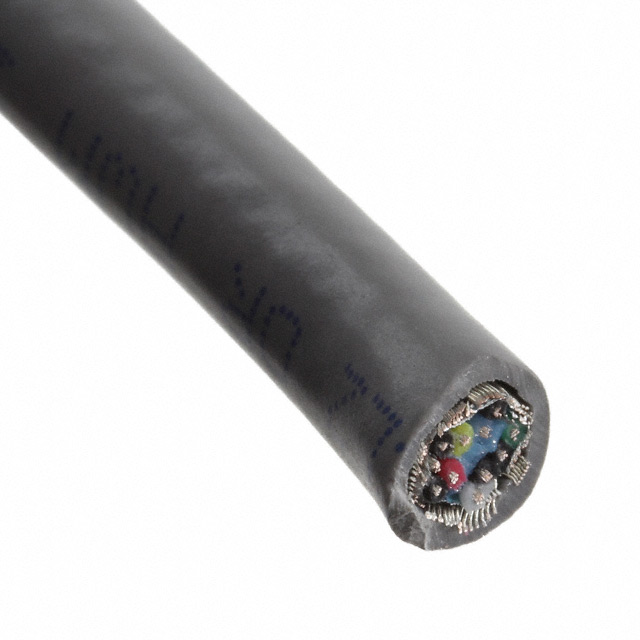

MULTI-PAIR 10COND 28AWG 100'
| Part | Shield Material | Shield Coverage | Conductor Insulation | Conductor Material | Jacket Color | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Wire Gauge | Features | Usage | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Jacket (Insulation) Material | Cable Type | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | Polypropylene (PP) | Copper Tinned | Chrome | 10 | 0.24 " | 6.1 mm | 100 ft | 30.5 m | 28 AWG | Drain Wire | Computer | -20 ░C | 60 °C | UL Style 2960 | Poly-Vinyl Chloride (PVC) | Multi-Pair | Braid Foil | 0.035 in | 0.889 mm | 7 | 36 AWG | ||
 Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | Polypropylene (PP) | Copper Tinned | Chrome | 10 | 0.24 " | 6.1 mm | 28 AWG | Drain Wire | Computer | -20 ░C | 60 °C | UL Style 2960 | Poly-Vinyl Chloride (PVC) | Multi-Pair | Braid Foil | 0.035 in | 0.889 mm | 7 | 36 AWG | 304.8 m | 1000 ft |
