SML-LX1110 Series

Catalog

LED TITANBRITE BLUE 470NM 4PLCC

Part	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Current - Test	Package / Case	Wavelength	Supplier Device Package	Temperature - Test	Height - Seated (Max)	Height - Seated (Max) [Max]	Current - Max [Max]	Luminous Flux @ Current/Temperature	Color	Voltage - Forward (Vf) (Typ)	Mounting Type	Thermal Resistance of Package	Flux @ 25°C, Current - Test

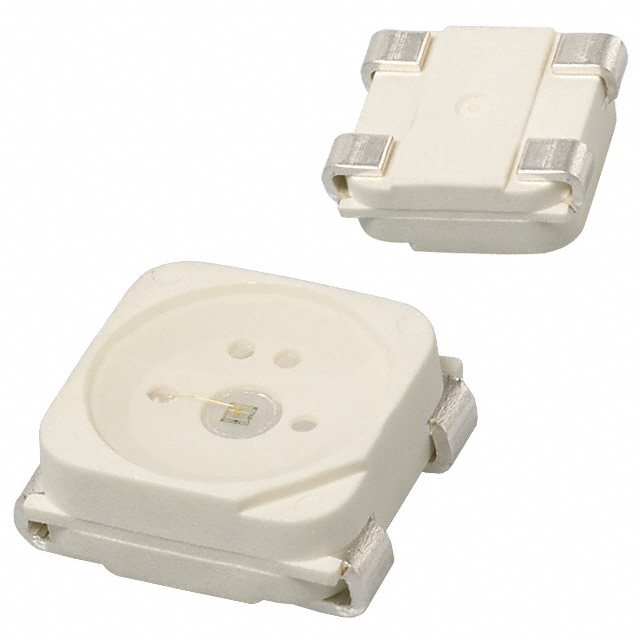

Lumex Opto/Components Inc. SML-LX1110USBC-BTR	6 lm/W	0.394 in	0.394 in	10 mm	10 mm	120 °	350 mA	4-SMD J-Lead	470 nm	4-PLCC	25 °C	4.4 mm	0.173 in	350 mA	7 lm	Blue	3.5 V	Surface Mount

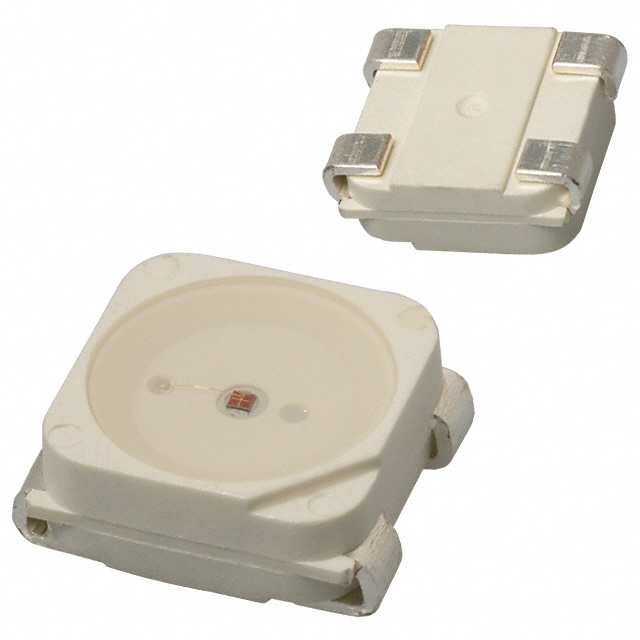

Lumex Opto/Components Inc. SML-LX1110UPGC-BTR	36 lm/W	0.394 in	0.394 in	10 mm	10 mm	120 °	350 mA	4-SMD J-Lead	525 nm	4-PLCC	25 °C	4.4 mm	0.173 in	350 mA	42 lm	Green	3.3 V	Surface Mount	47 °C/W
Lumex Opto/Components Inc. SML-LX1110SYC-BTR	30 lm/W	0.394 in	0.394 in	10 mm	10 mm	120 °	350 mA	4-SMD J-Lead	590 nm	4-PLCC	25 °C	4.4 mm	0.173 in	350 mA	21 lm	Yellow	2 V	Surface Mount

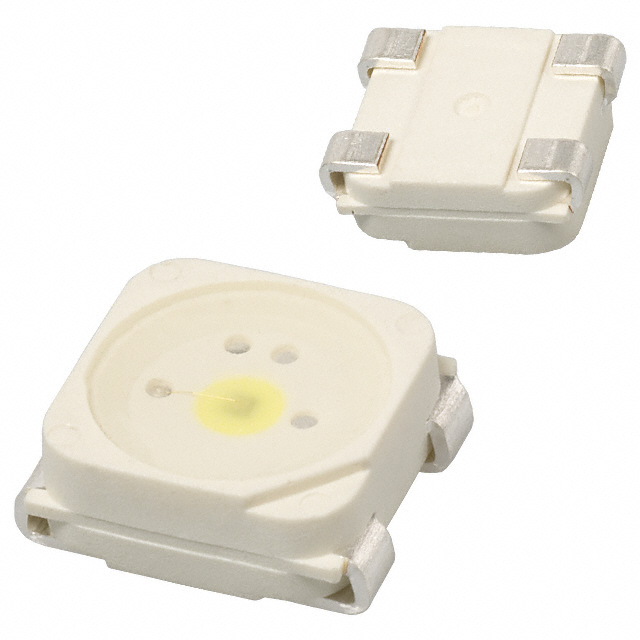

Lumex Opto/Components Inc. SML-LX1110UWC-BTR	18 lm/W	0.394 in	0.394 in	10 mm	10 mm	120 °	350 mA	4-SMD J-Lead		4-PLCC		4.4 mm	0.173 in	500 mA		White	3.5 V	Surface Mount		22 lm
Lumex Opto/Components Inc. SML-LX1110SOC-BTR	16 lm/W	0.394 in	0.394 in	10 mm	10 mm	120 °	350 mA	4-SMD J-Lead	620 nm	4-PLCC	25 °C	4.4 mm	0.173 in	350 mA	11 lm		2 V	Surface Mount
