PRPC021 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 21POS 2.54MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Insulation Material	Connector Type	Contact Material	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Contact Finish Thickness - Mating	Material Flammability Rating	Number of Positions	Contact Shape	Contact Finish Thickness - Post	Number of Rows	Current Rating (Amps)	Insulation Color	Contact Finish - Mating	Style	Insulation Height	Insulation Height	Contact Type	Shrouding	Termination	Mounting Type	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]

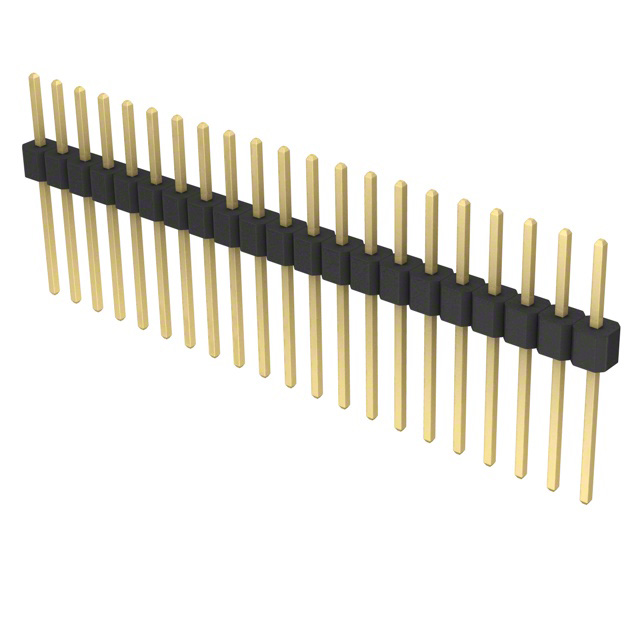

Sullins Connector Solutions PRPC021SADN-RC	-40 C	105 ░C	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Brass	19.01 mm	0.748 in	Gold	Flash	UL94 V-0	21	Square	Flash	1	3 A	Black	Gold	Board to Board Cable	0.098 "	2.5 mm	Male Pin	Unshrouded	Solder	Through Hole	Push-Pull	0.1 "	2.54 mm	10.67 mm	0.42 in	All

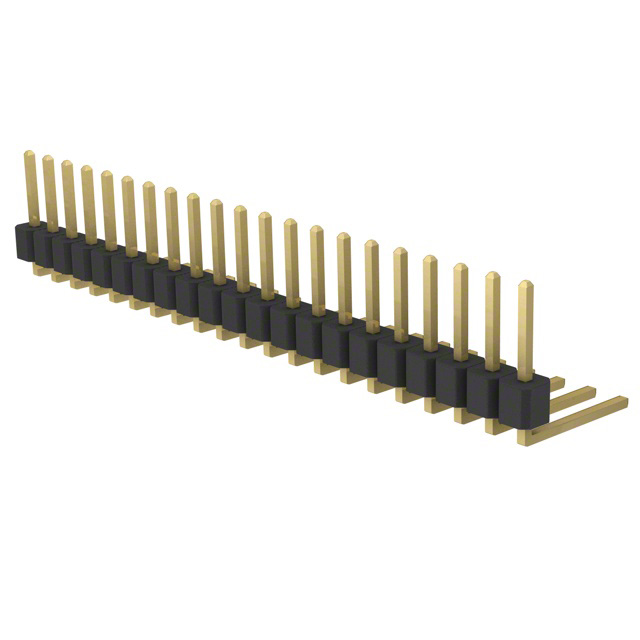

Sullins Connector Solutions PRPC021SBCN-M71RC	-40 C	105 ░C	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Brass			Gold	Flash	UL94 V-0	21	Square	Flash	1	3 A	Black	Gold	Board to Board Cable	0.098 "	2.5 mm	Male Pin	Unshrouded	Solder	Right Angle Through Hole	Push-Pull	0.1 "	2.54 mm	8.13 mm	0.32 in	All

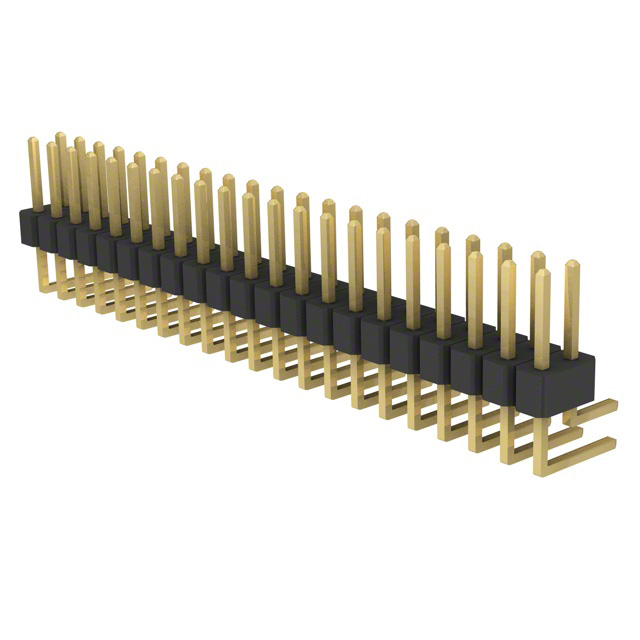

Sullins Connector Solutions PRPC021DBAN-M71RC	-40 C	105 ░C	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Brass			Gold	Flash	UL94 V-0	42	Square	Flash		3 A	Black	Gold	Board to Board Cable	0.197 "	5 mm	Male Pin	Unshrouded	Solder	Right Angle Through Hole	Push-Pull	0.1 "	2.54 mm	3.05 mm	0.12 in	All	2	0.1 in	2.54 mm
Sullins Connector Solutions PRPC021SAAN-RC	-40 C	105 ░C	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Brass	11.39 mm	0.448 in	Gold	Flash	UL94 V-0	21	Square	Flash	1	3 A	Black	Gold	Board to Board Cable	0.098 "	2.5 mm	Male Pin	Unshrouded	Solder	Through Hole	Push-Pull	0.1 "	2.54 mm	3.05 mm	0.12 in	All

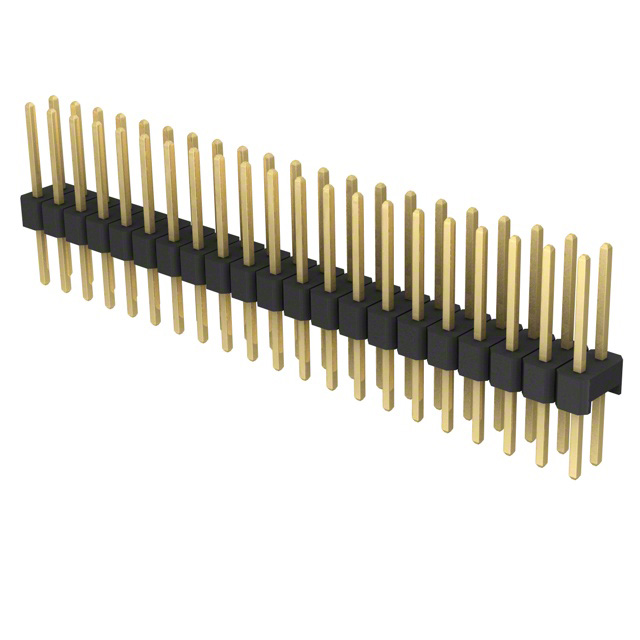

Sullins Connector Solutions PRPC021DFBN-RC	-40 C	105 ░C	0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Brass	0.637 in		Gold	Flash	UL94 V-0	42	Square	Flash		3 A	Black	Gold	Board to Board Cable	0.098 "	2.5 mm	Male Pin	Unshrouded	Solder	Through Hole	Push-Pull	0.1 "	2.54 mm	5.58 mm	0.22 in	All	2	0.1 in	2.54 mm	16.17 mm

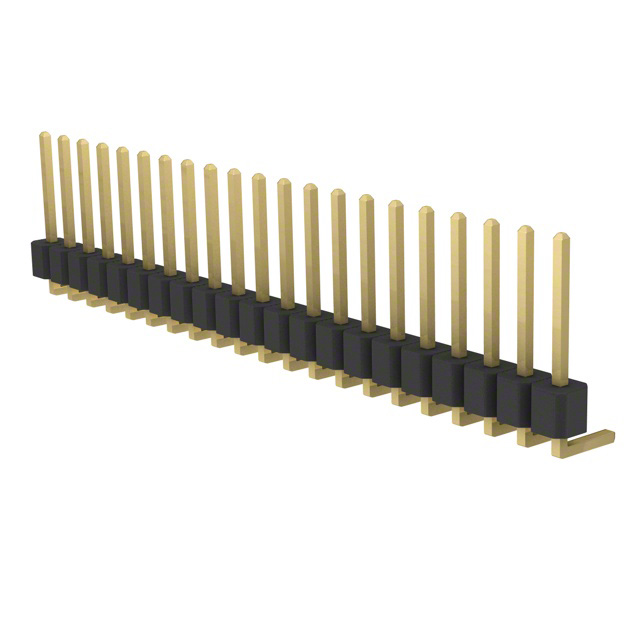

Sullins Connector Solutions PRPC021SGAN-M71RC	-40 C	105 ░C	0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Brass			Gold	Flash	UL94 V-0	21	Square	Flash	1	3 A	Black	Gold	Board to Board Cable	0.098 "	2.5 mm	Male Pin	Unshrouded	Solder	Right Angle Through Hole	Push-Pull	0.1 "	2.54 mm	3.05 mm	0.12 in	All
Sullins Connector Solutions PRPC021DABN-RC	-40 C	105 ░C	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Brass	14.18 mm	0.558 in	Gold	Flash	UL94 V-0	42	Square	Flash		3 A	Black	Gold	Board to Board Cable	0.098 "	2.5 mm	Male Pin	Unshrouded	Solder	Through Hole	Push-Pull	0.1 "	2.54 mm	5.84 mm	0.23 "	All	2	0.1 in	2.54 mm

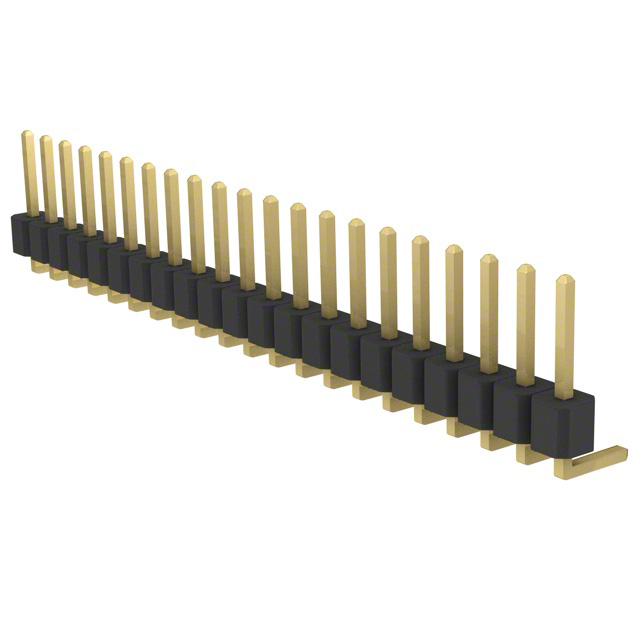

Sullins Connector Solutions PRPC021SBAN-M71RC	-40 C	105 ░C	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Brass			Gold	Flash	UL94 V-0	21	Square	Flash	1	3 A	Black	Gold	Board to Board Cable	0.098 "	2.5 mm	Male Pin	Unshrouded	Solder	Right Angle Through Hole	Push-Pull	0.1 "	2.54 mm	3.05 mm	0.12 in	All
Sullins Connector Solutions PRPC021SFAN-RC	-40 C	105 ░C	0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	Header Breakaway	Brass			Gold	Flash	UL94 V-0	21	Square	Flash	1	3 A	Black	Gold	Board to Board Cable	0.098 "	2.5 mm	Male Pin	Unshrouded	Solder	Through Hole	Push-Pull	0.1 "	2.54 mm	3.05 mm	0.12 in	All					13.63 mm	0.537 in
