171825 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER VERT 10POS 2.5MM

Part	Style	Fastening Type	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Material Flammability Rating	Number of Positions Loaded	Termination	Current Rating (Amps)	Voltage Rating	Insulation Color	Shrouding	Insulation Material	Applications	Number of Rows	Contact Material	Mounting Type	Connector Type	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish - Post

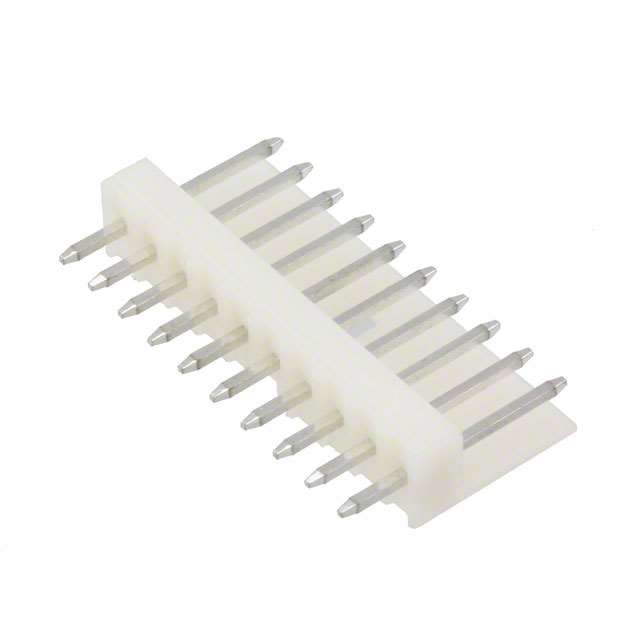

TE Connectivity Raychem Cable Protection 1-171825-0	Board to Cable/Wire	Latch Holder	Square	31.5 µin	0.8 µm	31.5 µin	0.8 µm	10	UL94 V-0	All	Solder	2 A	250 VAC 350 V	Natural	Shrouded - 1 Wall	Polyamide (PA66) Nylon 6/6	General Purpose	1	Brass	Through Hole	Header	7.49 mm	0.295 in	0.551 "	14 mm	3.6 mm	0.142 in	2.5 mm	0.098 in	Male Pin	Tin

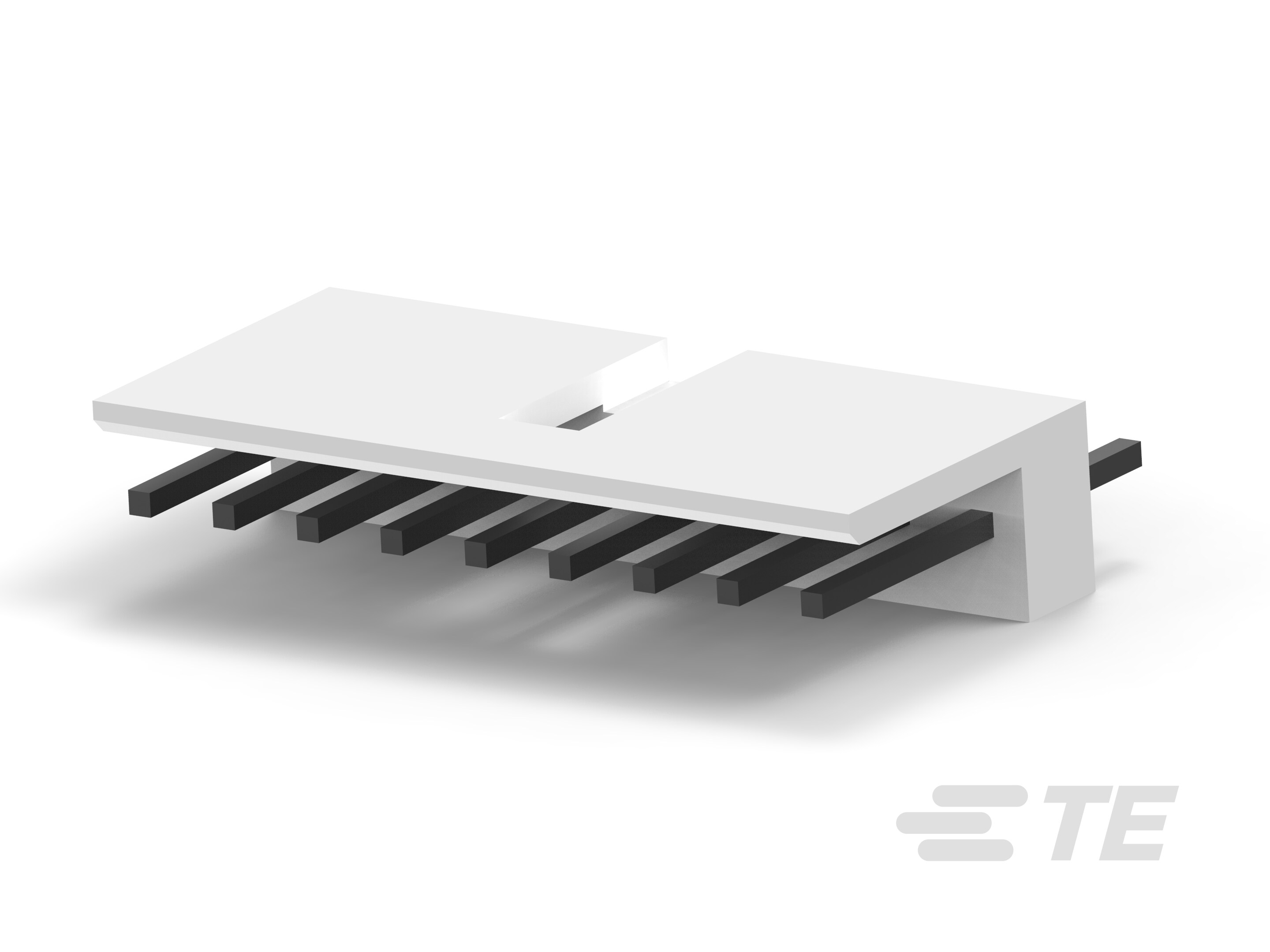

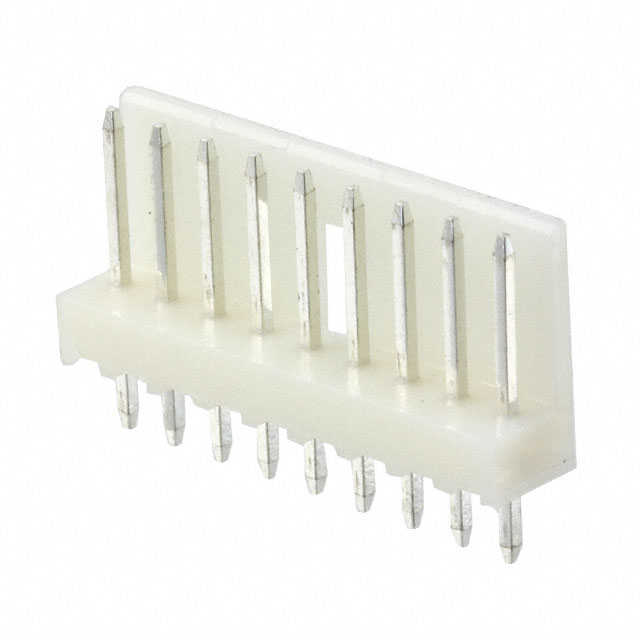

TE Connectivity Raychem Cable Protection 171825-9	Board to Cable/Wire	Latch Holder	Square	31.5 µin	0.8 µm	31.5 µin	0.8 µm	9	UL94 V-0	All	Solder	2 A	250 VAC 350 V	Natural	Shrouded - 1 Wall	Polyamide (PA66) Nylon 6/6	General Purpose	1	Brass	Through Hole	Header	7.49 mm	0.295 in	0.551 "	14 mm	3.6 mm	0.142 in	2.5 mm	0.098 in	Male Pin	Tin

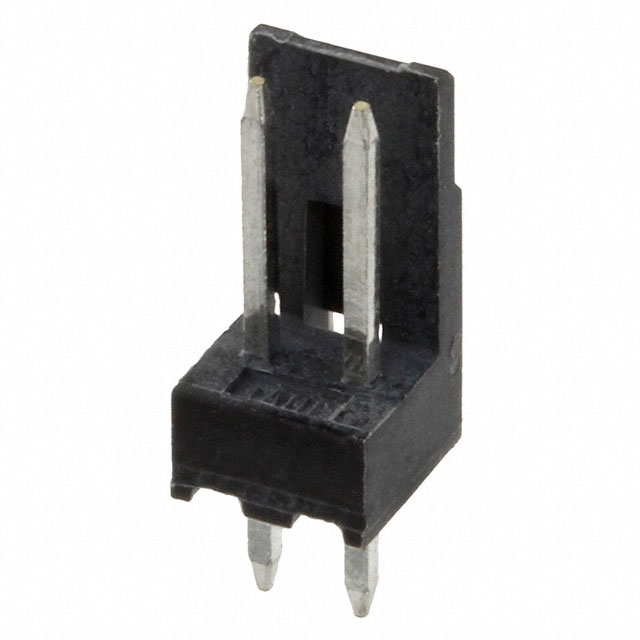

TE Connectivity Raychem Cable Protection 2-171825-2	Board to Cable/Wire	Latch Holder	Square	31.5 µin	0.8 µm	31.5 µin	0.8 µm	2	UL94 V-0	All	Solder	2 A	250 VAC 350 V	Black	Shrouded - 1 Wall	Polyamide (PA66) Nylon 6/6	General Purpose	1	Brass	Through Hole	Header	7.49 mm	0.295 in	0.551 "	14 mm	3.6 mm	0.142 in	2.5 mm	0.098 in	Male Pin	Tin

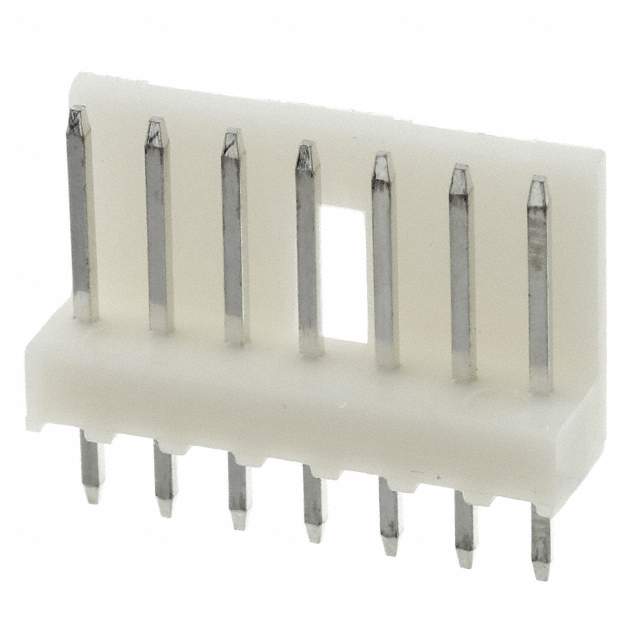

TE Connectivity Raychem Cable Protection 171825-7	Board to Cable/Wire	Latch Holder	Square	31.5 µin	0.8 µm	31.5 µin	0.8 µm	7	UL94 V-0	All	Solder	2 A	250 VAC 350 V	Natural	Shrouded - 1 Wall	Polyamide (PA66) Nylon 6/6	General Purpose	1	Brass	Through Hole	Header	7.49 mm	0.295 in	0.551 "	14 mm	3.6 mm	0.142 in	2.5 mm	0.098 in	Male Pin	Tin
TE Connectivity Raychem Cable Protection 2-171825-4	Board to Cable/Wire	Latch Holder	Square	31.5 µin	0.8 µm	31.5 µin	0.8 µm	4	UL94 V-0	All	Solder	2 A	250 VAC 350 V	Black	Shrouded - 1 Wall	Polyamide (PA66) Nylon 6/6	General Purpose	1	Brass	Through Hole	Header	7.49 mm	0.295 in	0.551 "	14 mm	3.6 mm	0.142 in	2.5 mm	0.098 in	Male Pin	Tin

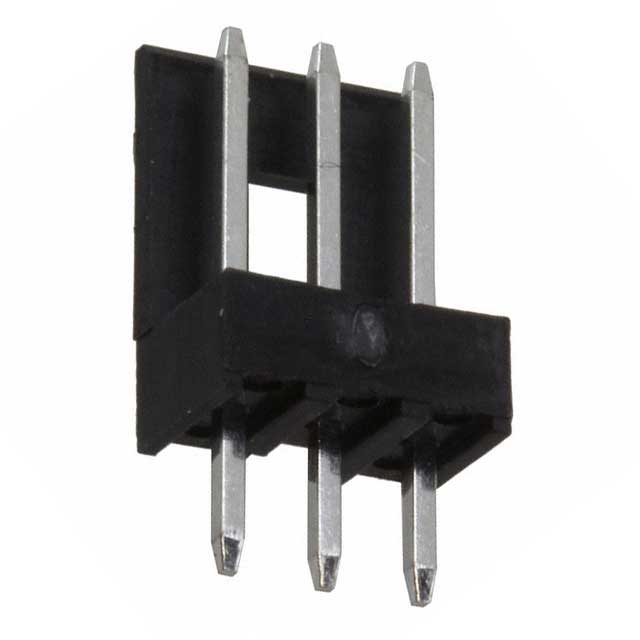

TE Connectivity Raychem Cable Protection 2-171825-3	Board to Cable/Wire	Latch Holder	Square	31.5 µin	0.8 µm	31.5 µin	0.8 µm		UL94 V-0	All	Solder	2 A	250 VAC 350 V	Black	Shrouded - 1 Wall	Polyamide (PA66) Nylon 6/6	General Purpose	1	Brass	Through Hole	Header	7.49 mm	0.295 in	0.551 "	14 mm	3.6 mm	0.142 in	2.5 mm	0.098 in	Male Pin	Tin
TE Connectivity Raychem Cable Protection 171825-2	Board to Cable/Wire	Latch Holder	Square	31.5 µin	0.8 µm	31.5 µin	0.8 µm	2	UL94 V-0	All	Solder	2 A	250 VAC 350 V	Natural	Shrouded - 1 Wall	Polyamide (PA66) Nylon 6/6	General Purpose	1	Brass	Through Hole	Header	7.49 mm	0.295 in	0.551 "	14 mm	3.6 mm	0.142 in	2.5 mm	0.098 in	Male Pin	Tin
TE Connectivity Raychem Cable Protection 2-171825-8	Board to Cable/Wire	Latch Holder	Square	31.5 µin	0.8 µm	31.5 µin	0.8 µm	8	UL94 V-0	All	Solder	2 A	250 VAC 350 V	Black	Shrouded - 1 Wall	Polyamide (PA66) Nylon 6/6	General Purpose	1	Brass	Through Hole	Header	7.49 mm	0.295 in	0.551 "	14 mm	3.6 mm	0.142 in	2.5 mm	0.098 in	Male Pin	Tin
TE Connectivity Raychem Cable Protection 4-171825-3	Board to Cable/Wire	Latch Holder	Square	31.5 µin	0.8 µm	31.5 µin	0.8 µm		UL94 V-0	All	Solder	2 A	250 VAC 350 V	Blue	Shrouded - 1 Wall	Polyamide (PA66) Nylon 6/6	General Purpose	1	Brass	Through Hole	Header	7.49 mm	0.295 in	0.551 "	14 mm	3.6 mm	0.142 in	2.5 mm	0.098 in	Male Pin	Tin

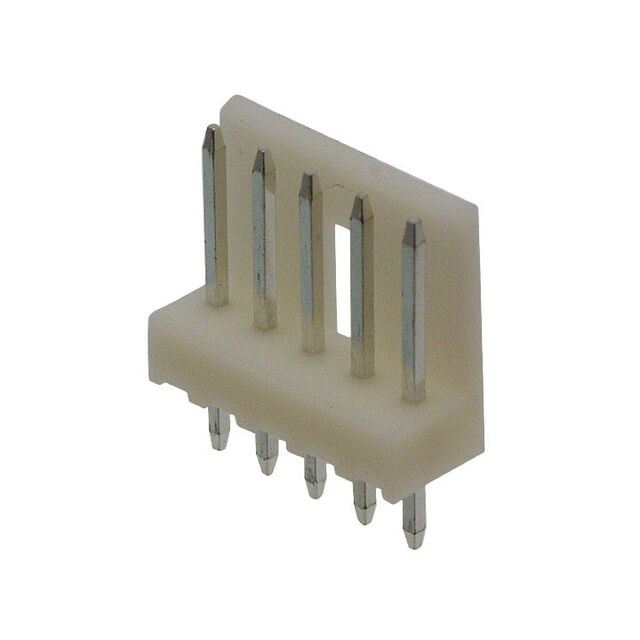

TE Connectivity Raychem Cable Protection 171825-5	Board to Cable/Wire	Latch Holder	Square	31.5 µin	0.8 µm	31.5 µin	0.8 µm		UL94 V-0	All	Solder	2 A	250 VAC 350 V	Natural	Shrouded - 1 Wall	Polyamide (PA66) Nylon 6/6	General Purpose	1	Brass	Through Hole	Header	7.49 mm	0.295 in	0.551 "	14 mm	3.6 mm	0.142 in	2.5 mm	0.098 in	Male Pin	Tin
