32.21.7 Series

Catalog

RELAY GEN PURPOSE SPST 6A 12V

Part	Coil Resistance	Switching Voltage [Max]	Load - Max Switching	Coil Voltage	Contact Material	Contact Form	Contact Rating (Current)	Operate Time	Termination Style	Coil Type	Mounting Type	Approval Agency	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Must Operate Voltage	Coil Current
Finder Relays, Inc. 32.21.7.012.2300	720 Ohms	400 VAC	2400 VA	12 VDC	Silver Cadmium Oxide (AgCdO)	SPST-NO (1 Form A)	6 A	6 ms	PC Pin	Non Latching	Through Hole	cURus VDE	General Purpose	85 °C	-40 C	2 ms	9.4 VDC	16 mA
Finder Relays, Inc. 32.21.7.005.2300	125 Ohms	400 VAC	2400 VA	5 VDC	Silver Cadmium Oxide (AgCdO)	SPST-NO (1 Form A)	6 A	6 ms	PC Pin	Non Latching	Through Hole	cURus VDE	General Purpose	85 °C	-40 C	2 ms	3.9 VDC	40 mA

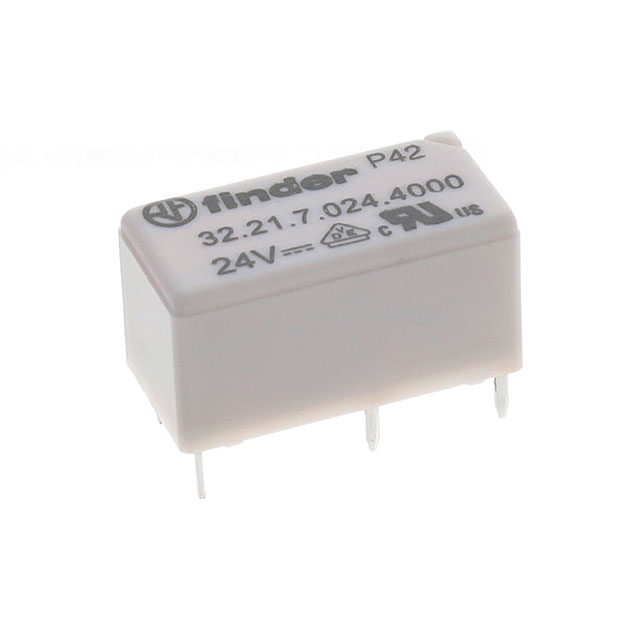

Finder Relays, Inc. 32.21.7.024.4000	2.88 kOhms	400 VAC	2400 VA	24 VDC	Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	6 A	6 ms	PC Pin	Non Latching	Through Hole	cURus EAC VDE	General Purpose	85 °C	-40 C	4 ms	18.7 VDC	8.3 mA
Finder Relays, Inc. 32.21.7.024.2300	2.88 kOhms	400 VAC	2400 VA	24 VDC	Silver Cadmium Oxide (AgCdO)	SPST-NO (1 Form A)	6 A	6 ms	PC Pin	Non Latching	Through Hole	cURus VDE	General Purpose	85 °C	-40 C	2 ms	18.7 VDC	8.3 mA
