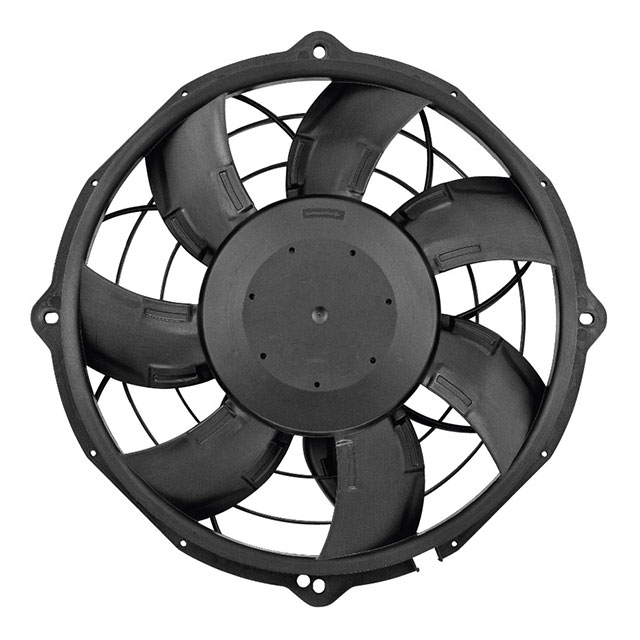

W3G300 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

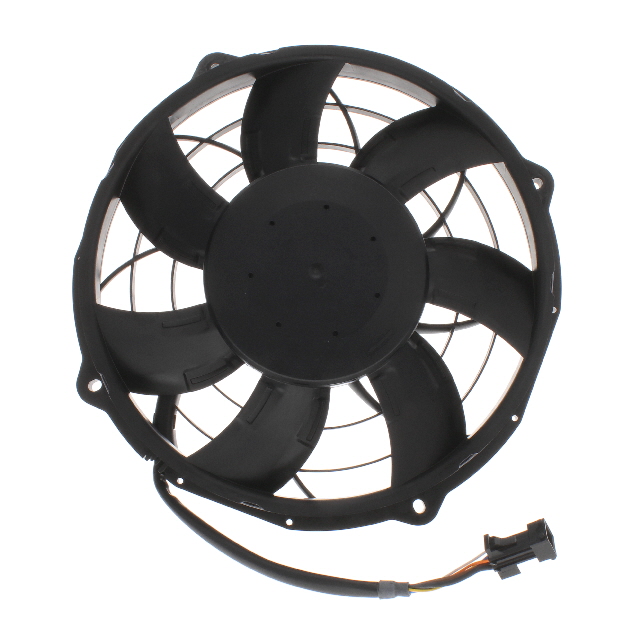

FAN AXIAL 330X76.5MM 26VDC RECT
| Part | Material - Blade | Air Flow | Air Flow | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Current Rating (Amps) | Power (Watts) | Termination | Width [y] | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension | Size / Dimension [diameter] | Fan Type | RPM | Weight [custom] | Weight [custom] | Ingress Protection | Voltage - Rated | Features | Bearing Type | Approval Agency | Noise | Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA) Nylon | 1897 CFM | 53.12 m³/min | 32 V | 16 VDC | Nylon Polyamide (PA) | 14.6 A | 380 W | 6 Position Rectangular Connector | 76.5 mm | -40 C | 85 °C | Round | 330 mm | Tubeaxial | 3940 RPM | 2 kg | 4.4 lbs | IP69K - Dust Tight High Temp Water Jets Waterproof | 26 VDC | PWM Control | Ball | |||
 ebm-papst Inc. | Polyamide (PA) Nylon | 942.4 CFM | 26.39 m³/min | 16 V | 9 V | Nylon Polyamide (PA) | 16.7 A | 220 W | 6 Position Rectangular Connector | 76.5 mm | -40 C | 85 °C | Round | 340 mm | Tubeaxial | 3200 RPM | 13 V | Ball | EAC | 75 dB(A) | |||||
 ebm-papst Inc. | Round | 340 mm | Tubeaxial | 27.5 VDC | Ball | 87 dB(A) | 94 mm |
