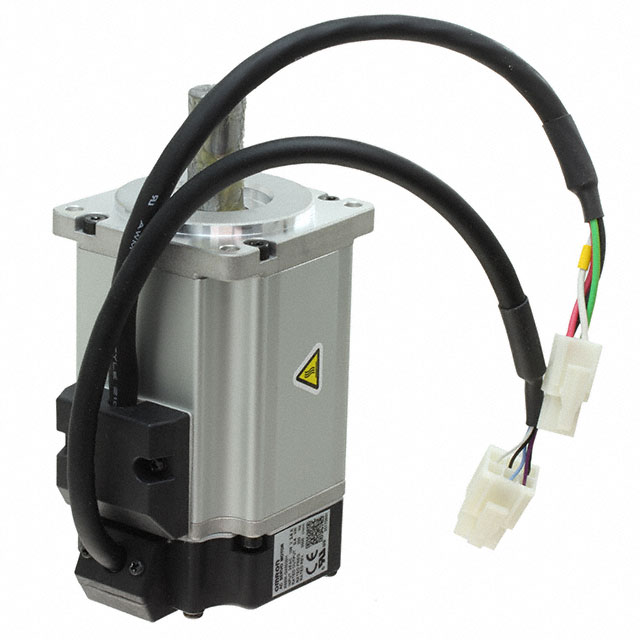

R88M-G40030 Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SERVOMOTOR 3000 RPM 100V

Part	Encoder Type	RPM	Type	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Mounting Hole Spacing	Mounting Hole Spacing	Weight	Weight	Operating Temperature [Max]	Function	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Approval Agency	Features	Power - Rated	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Termination Style	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]
Omron Electronics Inc-EMC Div R88M-G40030S-S2	Absolute	3000 RPM	AC Motor	509.8 oz-in	3600 mNm	70 mm	2.756 in	2.6 lbs	1.2 kg	40 °C	Servomotor	1300 mNm	184.1 oz-in	CSA UL	Key	400 W	2.362 in	2.362 in	60 mm	60 mm	100 VAC	30 mm	1.181 in	Cable with Connector	14 mm	0.551 in
Omron Electronics Inc-EMC Div R88M-G40030L-BO	Incremental	3000 RPM	AC Motor	509.8 oz-in	3600 mNm	70 mm	2.756 in	3.7 lbs	1.7 kg	40 °C	Servomotor	1300 mNm	184.1 oz-in	CSA UL	Brake Oil Seal	400 W	2.362 in	2.362 in	60 mm	60 mm	100 VAC	30 mm	1.181 in	Cable with Connector	14 mm	0.551 in
Omron Electronics Inc-EMC Div R88M-G40030H-BOS2	Incremental	3000 RPM	AC Motor	509.8 oz-in	3600 mNm	70 mm	2.756 in	3.7 lbs	1.7 kg	40 °C	Servomotor	1300 mNm	184.1 oz-in	CSA UL	Brake Key Oil Seal	400 W	2.362 in	2.362 in	60 mm	60 mm	200 VAC	30 mm	1.181 in	Cable with Connector	14 mm	0.551 in
Omron Electronics Inc-EMC Div R88M-G40030T-S2	Absolute	3000 RPM	AC Motor	509.8 oz-in	3600 mNm	70 mm	2.756 in	2.6 lbs	1.2 kg	40 °C	Servomotor	1300 mNm	184.1 oz-in	CSA UL	Key	400 W	2.362 in	2.362 in	60 mm	60 mm	200 VAC	30 mm	1.181 in	Cable with Connector	14 mm	0.551 in
Omron Electronics Inc-EMC Div R88M-G40030H-O	Incremental	3000 RPM	AC Motor	509.8 oz-in	3600 mNm	70 mm	2.756 in	2.6 lbs	1.2 kg	40 °C	Servomotor	1300 mNm	184.1 oz-in	CSA UL	Oil Seal	400 W	2.362 in	2.362 in	60 mm	60 mm	200 VAC	30 mm	1.181 in	Cable with Connector	14 mm	0.551 in
Omron Electronics Inc-EMC Div R88M-G40030T-O	Absolute	3000 RPM	AC Motor	509.8 oz-in	3600 mNm	70 mm	2.756 in	2.6 lbs	1.2 kg	40 °C	Servomotor	1300 mNm	184.1 oz-in	CSA UL	Oil Seal	400 W	2.362 in	2.362 in	60 mm	60 mm	200 VAC	30 mm	1.181 in	Cable with Connector	14 mm	0.551 in
Omron Electronics Inc-EMC Div R88M-G40030T-BO	Absolute	3000 RPM	AC Motor	509.8 oz-in	3600 mNm	70 mm	2.756 in	3.7 lbs	1.7 kg	40 °C	Servomotor	1300 mNm	184.1 oz-in	CSA UL	Brake Oil Seal	400 W	2.362 in	2.362 in	60 mm	60 mm	200 VAC	30 mm	1.181 in	Cable with Connector	14 mm	0.551 in
Omron Electronics Inc-EMC Div R88M-G40030H	Incremental	3000 RPM	AC Motor	509.8 oz-in	3600 mNm	70 mm	2.756 in	2.6 lbs	1.2 kg	40 °C	Servomotor	1300 mNm	184.1 oz-in	CSA UL		400 W	2.362 in	2.362 in	60 mm	60 mm	200 VAC	30 mm	1.181 in	Cable with Connector	14 mm	0.551 in
Omron Electronics Inc-EMC Div R88M-G40030H-B	Incremental	3000 RPM	AC Motor	509.8 oz-in	3600 mNm	70 mm	2.756 in	3.7 lbs	1.7 kg	40 °C	Servomotor	1300 mNm	184.1 oz-in	CSA UL	Brake	400 W	2.362 in	2.362 in	60 mm	60 mm	200 VAC	30 mm	1.181 in	Cable with Connector	14 mm	0.551 in
Omron Electronics Inc-EMC Div R88M-G40030S-B	Absolute	3000 RPM	AC Motor	509.8 oz-in	3600 mNm	70 mm	2.756 in	3.7 lbs	1.7 kg	40 °C	Servomotor	1300 mNm	184.1 oz-in	CSA UL	Brake	400 W	2.362 in	2.362 in	60 mm	60 mm	100 VAC	30 mm	1.181 in	Cable with Connector	14 mm	0.551 in
