1986692 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK PLUG 21POS STR 3.5MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Mounting Type	Contact Material	Current - UL	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Features	Type	Number of Levels	Termination Style	Positions Per Level	Pitch [x]	Pitch [x]	Contact Mating Finish	Voltage - UL	Insulation Height	Insulation Height	Color	Number of Positions	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Housing Material	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]

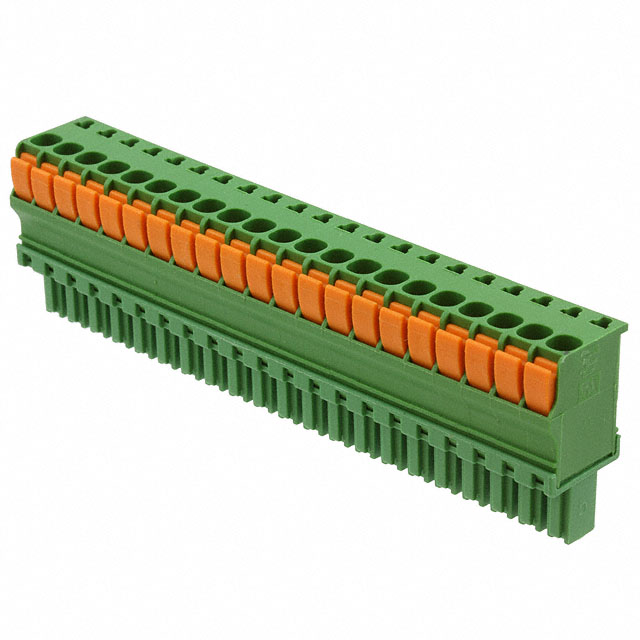

TE Connectivity Raychem Cable Protection 2-1986692-1	-40 °C	110 °C	UL94 V-0	Free Hanging (In-Line)	Copper Alloy	9 A	0.05 mm²	2 mm²	Side Stacking	Plug Female Sockets	1	Push-In Spring Screwless - Leg Spring	21	3.5 mm	0.138 in	Tin	300 V	11.66 mm	0.459 in	Green	21	14 AWG	30 AWG	Polyamide (PA) Nylon
TE Connectivity Raychem Cable Protection 1-1986692-7	-40 °C	110 °C	UL94 V-0	Free Hanging (In-Line)	Copper Alloy	9 A			Side Stacking	Plug Female Sockets	1	Push-In Spring Screwless - Leg Spring	17	3.5 mm	0.138 in	Tin	300 V	11.66 mm	0.459 in	Green		14 AWG	30 AWG	Polyamide (PA) Nylon	2 mm˛	0.05 mm˛

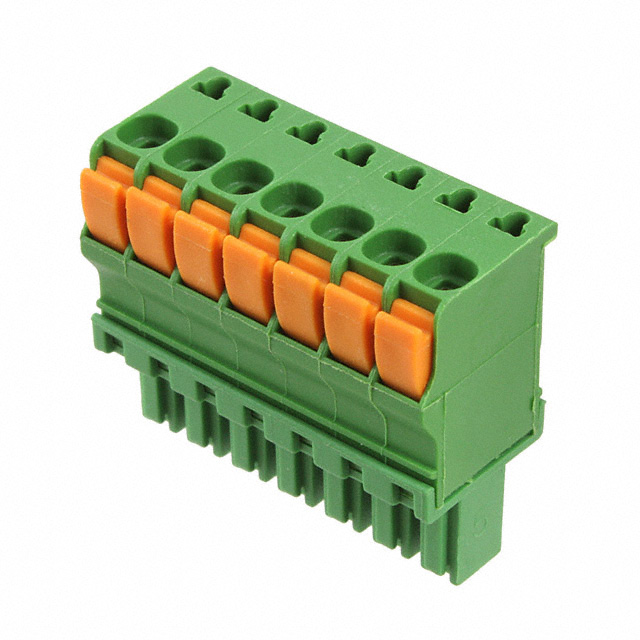

TE Connectivity Raychem Cable Protection 1986692-7	-40 °C	110 °C	UL94 V-0	Free Hanging (In-Line)	Copper Alloy	9 A	0.05 mm²	2 mm²	Side Stacking	Plug Female Sockets	1	Push-In Spring Screwless - Leg Spring	7	3.5 mm	0.138 in	Tin	300 V	11.66 mm	0.459 in	Green	7	14 AWG	30 AWG	Polyamide (PA) Nylon

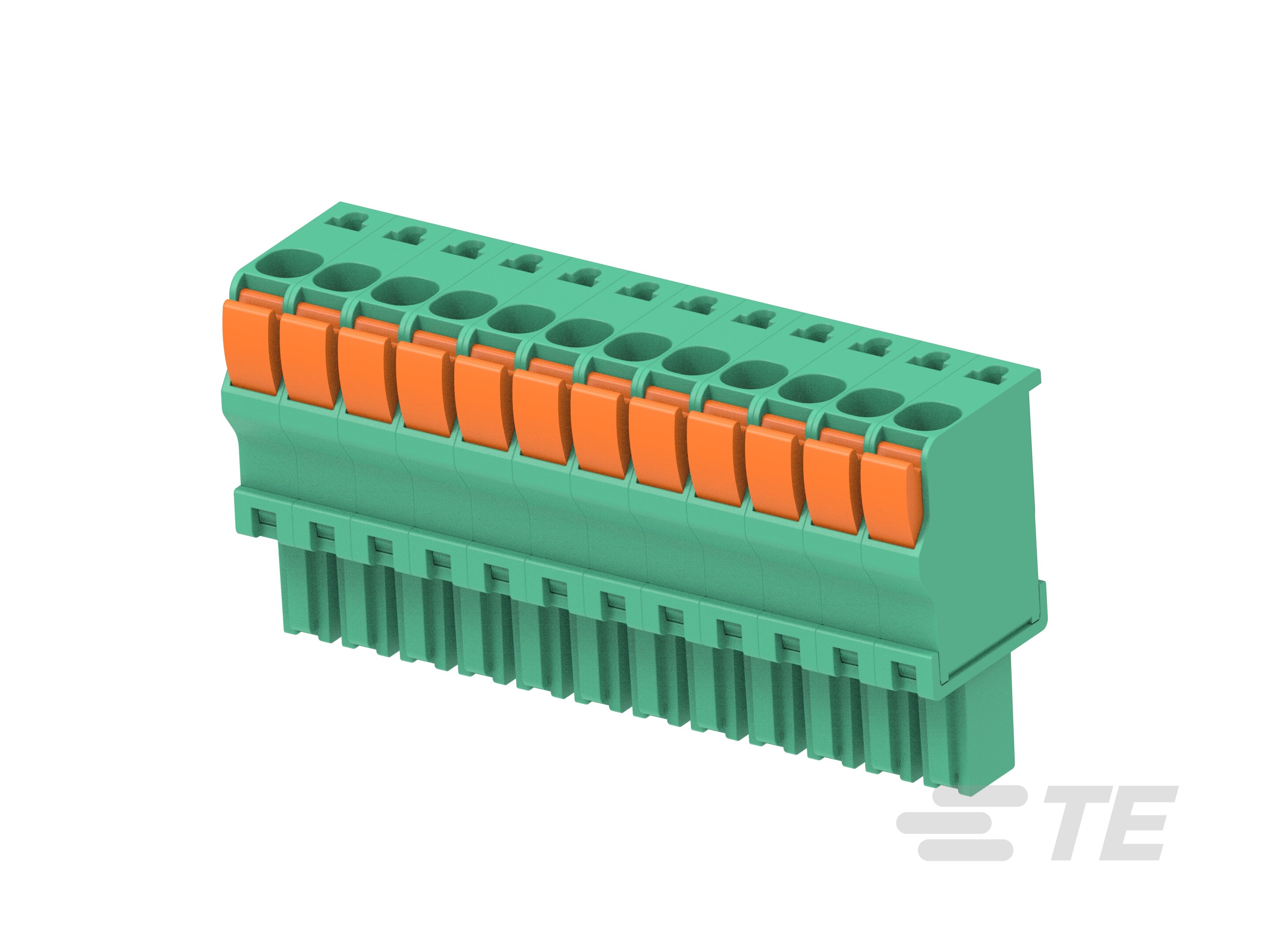

TE Connectivity Raychem Cable Protection 1-1986692-2	-40 °C	110 °C	UL94 V-0	Free Hanging (In-Line)	Copper Alloy	9 A	0.05 mm²	2 mm²	Side Stacking	Plug Female Sockets	1	Push-In Spring Screwless - Leg Spring	12	3.5 mm	0.138 in	Tin	300 V	11.66 mm	0.459 in	Green	12	14 AWG	30 AWG	Polyamide (PA) Nylon
TE Connectivity Raychem Cable Protection 1-1986692-5	-40 °C	110 °C	UL94 V-0	Free Hanging (In-Line)	Copper Alloy	9 A			Side Stacking	Plug Female Sockets	1	Push-In Spring Screwless - Leg Spring	15	3.5 mm	0.138 in	Tin	300 V	11.66 mm	0.459 in	Green	15	14 AWG	30 AWG	Polyamide (PA) Nylon	2 mm˛	0.05 mm˛

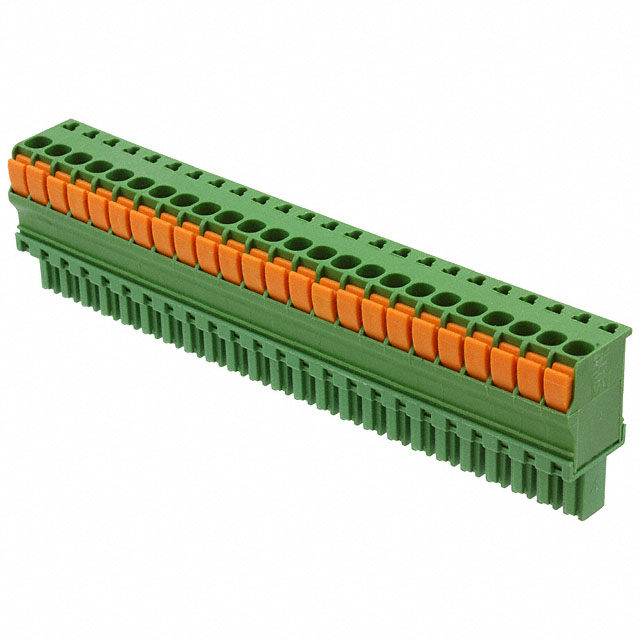

TE Connectivity Raychem Cable Protection 2-1986692-4	-40 °C	110 °C	UL94 V-0	Free Hanging (In-Line)	Copper Alloy	9 A	0.05 mm²	2 mm²	Side Stacking	Plug Female Sockets	1	Push-In Spring Screwless - Leg Spring		3.5 mm	0.138 in	Tin	300 V	11.66 mm	0.459 in	Green	24	14 AWG	30 AWG	Polyamide (PA) Nylon

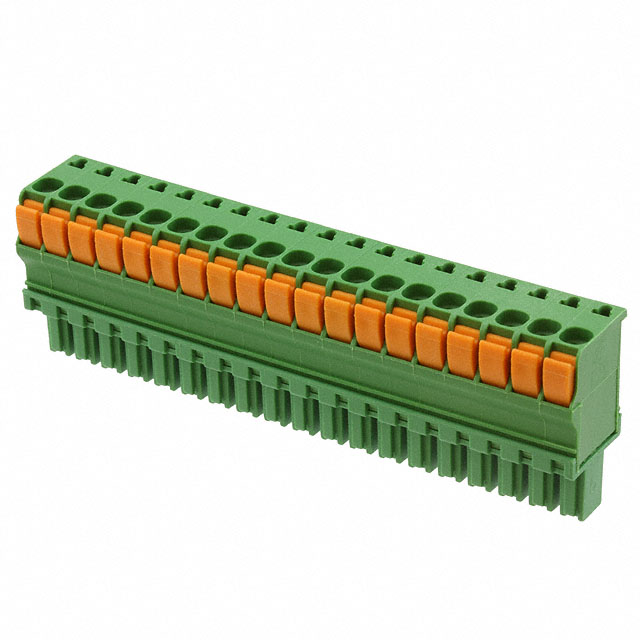

TE Connectivity Raychem Cable Protection 1-1986692-9	-40 °C	110 °C	UL94 V-0	Free Hanging (In-Line)	Copper Alloy	9 A	0.05 mm²	2 mm²	Side Stacking	Plug Female Sockets	1	Push-In Spring Screwless - Leg Spring	19	3.5 mm	0.138 in	Tin	300 V	11.66 mm	0.459 in	Green	19	14 AWG	30 AWG	Polyamide (PA) Nylon

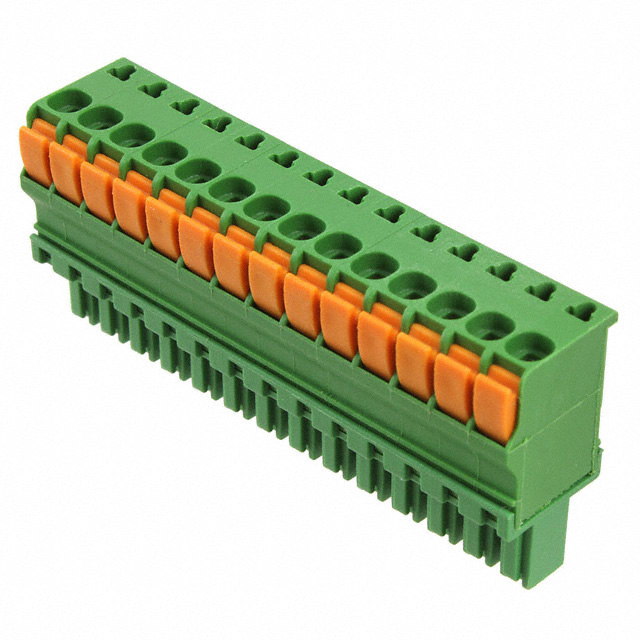

TE Connectivity Raychem Cable Protection 1-1986692-4	-40 °C	110 °C	UL94 V-0	Free Hanging (In-Line)	Copper Alloy	9 A	0.05 mm²	2 mm²	Side Stacking	Plug Female Sockets	1	Push-In Spring Screwless - Leg Spring	14	3.5 mm	0.138 in	Tin	300 V	11.66 mm	0.459 in	Green	14	14 AWG	30 AWG	Polyamide (PA) Nylon

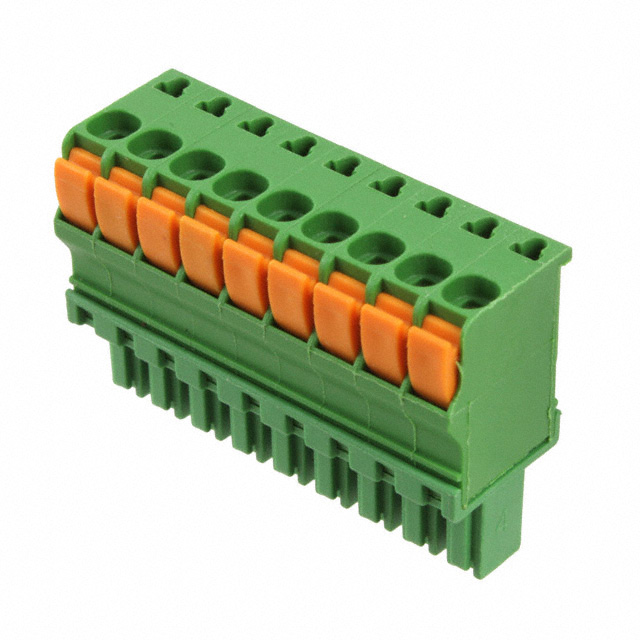

TE Connectivity Raychem Cable Protection 1986692-9	-40 °C	110 °C	UL94 V-0	Free Hanging (In-Line)	Copper Alloy	9 A	0.05 mm²	2 mm²	Side Stacking	Plug Female Sockets	1	Push-In Spring Screwless - Leg Spring	9	3.5 mm	0.138 in	Tin	300 V	11.66 mm	0.459 in	Green	9	14 AWG	30 AWG	Polyamide (PA) Nylon

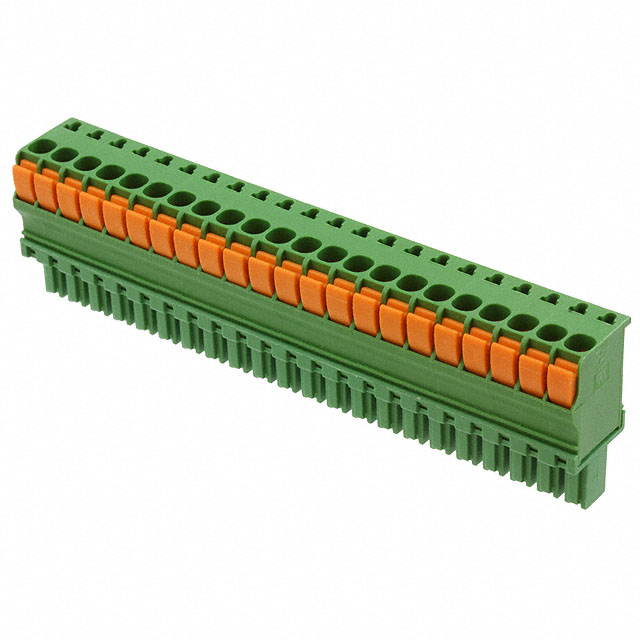

TE Connectivity Raychem Cable Protection 2-1986692-2	-40 °C	110 °C	UL94 V-0	Free Hanging (In-Line)	Copper Alloy	9 A			Side Stacking	Plug Female Sockets	1	Push-In Spring Screwless - Leg Spring	22	3.5 mm	0.138 in	Tin	300 V	11.66 mm	0.459 in	Green	22 positions	14 AWG	30 AWG	Polyamide (PA) Nylon	2 mm˛	0.05 mm˛
