S08 Series
Manufacturer: Harwin Inc.
Beta
⌘K

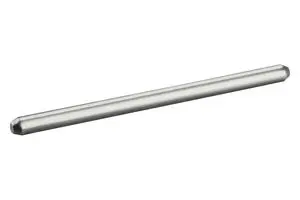

BRIDGE PIN, REMOVABLE, 0.7MM X 15MM ROHS COMPLIANT: YES
| Part | Pin Size - Below Flange | Pin Size - Below Flange | Pin Size - Above Flange | Pin Size - Above Flange | Termination | Insulation | Terminal Style | Length - Overall [x] | Length - Overall [x] | Contact Finish | Terminal Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 0.7 mm | 0.028 in | 0.028 in | 0.7 mm | Solder | Non-Insulated | Smooth | 15 mm | 0.591 in | Tin | Single Post | Phosphor Bronze |
