745-094 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 94POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Gender	Read Out	Termination	Card Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Contact Type	Number of Positions/Bay/Row	Color	Contact Finish	Mounting Type
EDAC Inc. 745-094-522-206	2	Polyester Thermoplastic	-40 C	105 ░C	94	Female	Dual	Press-Fit	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	47	Black	Gold	Through Hole

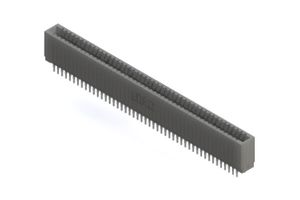

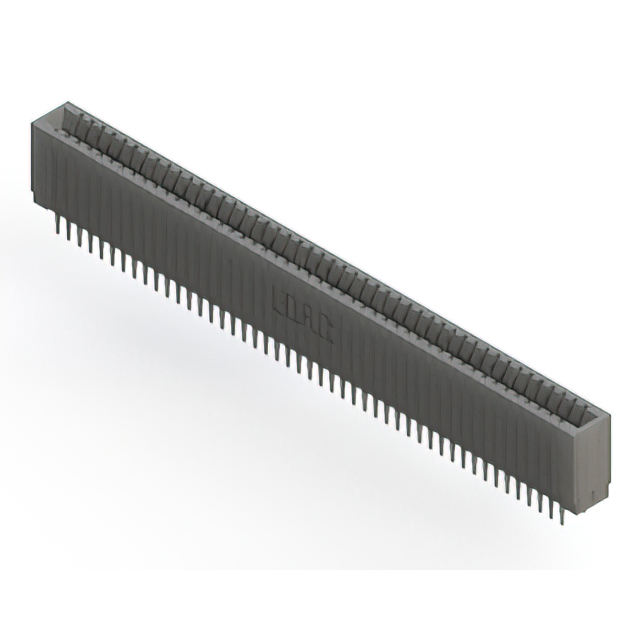

EDAC Inc. 745-094-520-201	2	Polyester Thermoplastic	-40 C	105 ░C	94	Female	Dual	Press-Fit	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	47	Black	Gold	Through Hole
EDAC Inc. 745-094-545-201	2	Polyester Thermoplastic	-40 C	105 ░C	94	Female	Dual	Press-Fit	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	47	Black	Gold	Through Hole
EDAC Inc. 745-094-541-201	2	Polyester Thermoplastic	-40 C	105 ░C	94	Female	Dual	Press-Fit Wire Wrap	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	47	Black	Gold	Through Hole
EDAC Inc. 745-094-541-206	2	Polyester Thermoplastic	-40 C	105 ░C	94	Female	Dual	Press-Fit Wire Wrap	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	47	Black	Gold	Through Hole
EDAC Inc. 745-094-520-206	2	Polyester Thermoplastic	-40 C	105 ░C	94	Female	Dual	Press-Fit	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	47	Black	Gold	Through Hole
EDAC Inc. 745-094-540-206	2	Polyester Thermoplastic	-40 C	105 ░C	94	Female	Dual	Press-Fit Wire Wrap	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	47	Black	Gold	Through Hole
EDAC Inc. 745-094-522-201	2	Polyester Thermoplastic	-40 C	105 ░C	94	Female	Dual	Press-Fit	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	47	Black	Gold	Through Hole
EDAC Inc. 745-094-540-201	2	Polyester Thermoplastic	-40 C	105 ░C	94	Female	Dual	Press-Fit Wire Wrap	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	47	Black	Gold	Through Hole
EDAC Inc. 745-094-525-206	2	Polyester Thermoplastic	-40 C	105 ░C	94	Female	Dual	Press-Fit	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	47	Black	Gold	Through Hole
