FW Series

Board to Board & Mezzanine Connectors Flexible Micro Board Stacking Header, 0.050" Pitch

Catalog

Board to Board & Mezzanine Connectors Flexible Micro Board Stacking Header, 0.050" Pitch

Part	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Mounting Type	Termination	Number of Rows	Length - Overall Pin	Length - Overall Pin	Contact Finish - Post (Mating)	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Color	Length - Stack Height [x]	Length - Stack Height [x]	Number of Positions	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Stack Height [custom]	Length - Stack Height [custom]

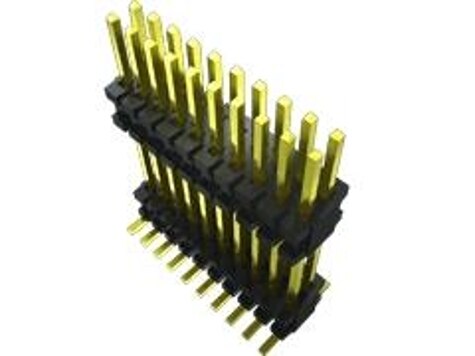

Samtec Inc. FW-35-03-S-D-263-075-ES-A-P	0.075 in	1.905 mm	30 µin	0.76 µm	Surface Mount	Solder	2	0.338 in	8.585 mm	Gold	1.27 mm	0.05 in	0.05 in	1.27 mm	Black	0.263 in	6.68 mm	70
Samtec Inc. FW-35-05-S-D-310-145-A-P-TR	0.145 in	3.683 mm	30 µin	0.76 µm	Surface Mount	Solder	2			Gold	1.27 mm	0.05 in	0.05 in	1.27 mm	Black	0.31 in	7.874 mm	70	11.557 mm	0.455 in
Samtec Inc. FW-22-05-S-D-503-065-A-P-TR	0.065 in	1.651 mm	30 µin	0.76 µm	Surface Mount	Solder	2			Gold	1.27 mm	0.05 in	0.05 in	1.27 mm	Black	0.503 in	12.776 mm	44	14.427 mm	0.568 in
Samtec Inc. FW-35-05-S-D-270-145-A-P-TR	0.145 in	3.683 mm	30 µin	0.76 µm	Surface Mount	Solder	2			Gold	1.27 mm	0.05 in	0.05 in	1.27 mm	Black	0.27 in	6.858 mm	70	10.541 mm	0.415 in
Samtec Inc. FW-35-05-S-D-597-065-A-P	0.065 in	1.651 mm	30 µin	0.76 µm	Surface Mount	Solder	2		16.815 mm	Gold	1.27 mm	0.05 in	0.05 in	1.27 mm	Black			70		0.662 "	15.164 mm	0.597 in
