747053 Series

Catalog

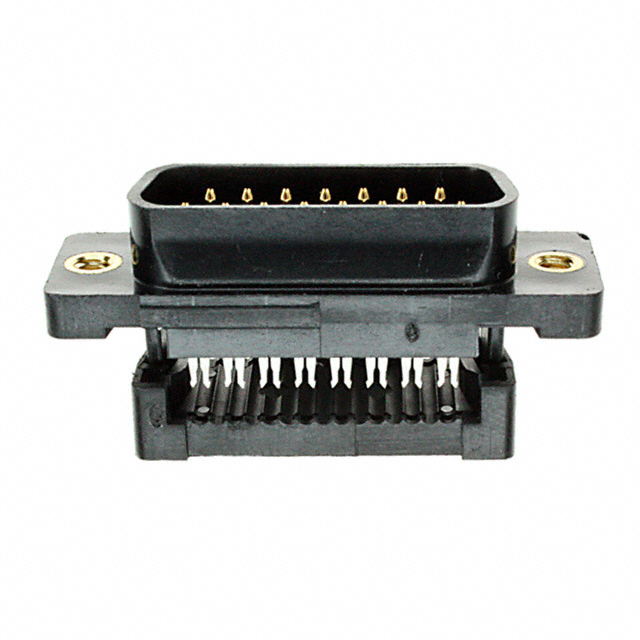

CONN D-SUB PLUG 25POS IDC

Part	Color	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Flange Feature	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Features	Contact Type	Number of Positions	Number of Rows [custom]	Termination	Connector Type	Connector Style	Material Flammability Rating	Contact Finish	Mounting Type	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
TE Connectivity AMP Connectors 747053-2	Black	Thermoplastic	-55 C	105 ░C	Phosphor Bronze	Housing/Shell	4-40	30 Áin	0.76 Ám	1.25 A	Feed Through	Signal	25	2	IDC Ribbon Cable	Plug Male Pins	D-Sub	UL94 V-0	Gold	Free Hanging (In-Line)	B DB	3
TE Connectivity AMP Connectors 747053-3	Black	Thermoplastic	-55 C	105 ░C	Phosphor Bronze	Housing/Shell	4-40	30 Áin	0.76 Ám	1.25 A	Feed Through	Signal	15	2	IDC Ribbon Cable	Plug Male Pins	D-Sub	UL94 V-0	Gold	Free Hanging (In-Line)			2
TE Connectivity AMP Connectors 747053-4	Black	Thermoplastic	-55 C	105 ░C	Phosphor Bronze	Housing/Shell	4-40	30 Áin	0.76 Ám	1.25 A	Feed Through	Signal	9	2	IDC Ribbon Cable	Plug Male Pins	D-Sub	UL94 V-0	Gold	Free Hanging (In-Line)				1	DE E
