A3AA-90L Series

Catalog

SWITCH PUSH SPST-NO 6A 125V

Part	Mechanical Life	Electrical Life	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Actuator Marking	Circuit	Voltage Rating - AC	Mounting Type	Current Rating (Amps)	Type	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - DC	Ingress Protection	Actuator Type	Termination Style
Omron Automation and Safety A3AA-90L1-00Y	50000 Cycles	50000 Cycles	11.5 mm	11.5 mm	No Marking	SPST-NO	125 V	Panel Mount Rear	4 A 6 A	Standard	Yellow	55 °C	-10 °C	Off-On	30 V	IP00	Button Square	Solder Lug

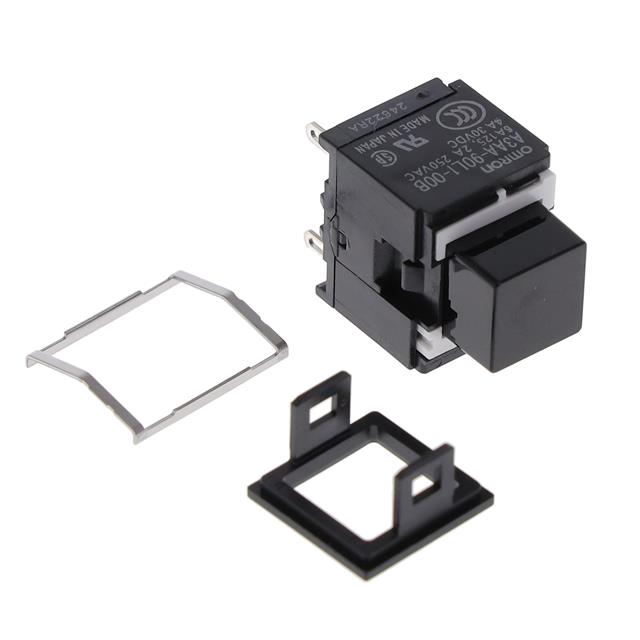

Omron Automation and Safety A3AA-90L1-00B	50000 Cycles	50000 Cycles	11.5 mm	11.5 mm	No Marking	SPST-NO	125 V	Panel Mount Rear	4 A 6 A	Standard	Black	55 °C	-10 °C	Off-On	30 V	IP00	Button Square	Solder Lug
Omron Automation and Safety A3AA-90L1-00D	50000 Cycles	50000 Cycles	11.5 mm	11.5 mm	No Marking	SPST-NO	125 V	Panel Mount Rear	4 A 6 A	Standard	Dark Gray	55 °C	-10 °C	Off-On	30 V	IP00	Button Square	Solder Lug
