2317581 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

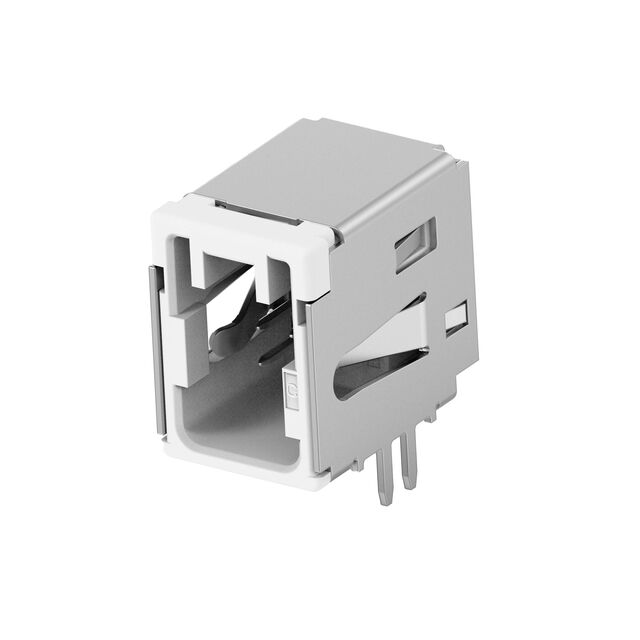

4POS,HSL,0.50,HDR ASSY,COD C,WO
| Part | Voltage Rating | Contact Type | Contact Shape | Insulation Material | Contact Material | Pitch - Mating | Pitch - Mating | Number of Positions | Insulation Height | Insulation Height | Mounting Type | Features | Contact Finish - Post | Style | Number of Rows | Current Rating (Amps) | Number of Positions Loaded | Termination | Connector Type | Insulation Color | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 5 V | Tab | Square | Polyphenylene Sulfide (PPS) | Brass | 0.02 in | 0.5 mm | 4 | 13.5 mm | 0.531 in | Surface Mount | Board Guide Solder Retention | Tin | Board to Cable/Wire | 2 | 2.5 A | All | Solder | Header | Natural | Shrouded - 4 Wall | 85 °C | -40 °C |
