CK05BX Series
Manufacturer: KEMET
Beta
⌘K

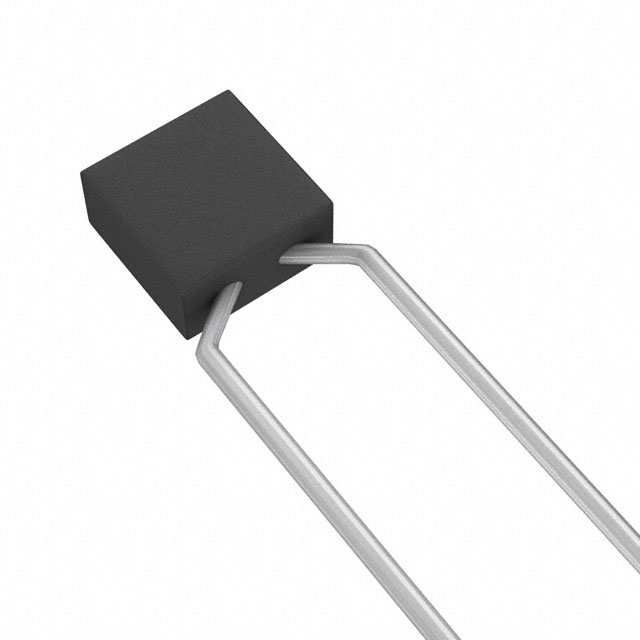

CAP CER 10000PF 100V BX RADIAL
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Tolerance | Lead Spacing | Lead Spacing | Voltage - Rated | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Capacitance | Temperature Coefficient | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 2.29 mm | 4.83 mm | 0.09 " | 0.19 " | Through Hole | 10 % | 0.2 in | 5.08 mm | 100 V | High Reliability | -55 C | 125 °C | Radial | 5.08 mm | 0.2 in | 10000 pF | BX | Formed Leads |
KEMET | 2.29 mm | 4.83 mm | 0.09 " | 0.19 " | Through Hole | 10 % | 0.2 in | 5.08 mm | 200 VDC | High Reliability | -55 C | 125 °C | Radial | 5.08 mm | 0.2 in | 220 pF | BX | Formed Leads |
 KEMET | 2.29 mm | 4.83 mm | 0.09 " | 0.19 " | Through Hole | 10 % | 0.2 in | 5.08 mm | 200 VDC | High Reliability | -55 C | 125 °C | Radial | 5.08 mm | 0.2 in | 470 pF | BX | Formed Leads |
KEMET | 2.29 mm | 4.83 mm | 0.09 " | 0.19 " | Through Hole | 10 % | 0.2 in | 5.08 mm | 200 VDC | High Reliability | -55 C | 125 °C | Radial | 5.08 mm | 0.2 in | 15 pF | BX | Formed Leads |
 KEMET | 2.29 mm | 4.83 mm | 0.09 " | 0.19 " | Through Hole | 10 % | 0.2 in | 5.08 mm | 50 VDC | High Reliability | -55 C | 125 °C | Radial | 5.08 mm | 0.2 in | 100000 pF | BX | Formed Leads |
