CSD86350Q5D Series

25-V, N channel synchronous buck NexFET™ power MOSFET, SON 5 mm x 6 mm power block, 40 A

Catalog

25-V, N channel synchronous buck NexFET™ power MOSFET, SON 5 mm x 6 mm power block, 40 A

Part	Main Purpose	Outputs and Type	Outputs and Type	Board Type	Utilized IC / Part	Supplied Contents	Frequency - Switching	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Current - Output	Voltage - Output	Technology	Power - Max [Max]	Mounting Type	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs	Gate Charge (Qg) (Max) @ Vgs	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Configuration	Supplier Device Package	FET Feature

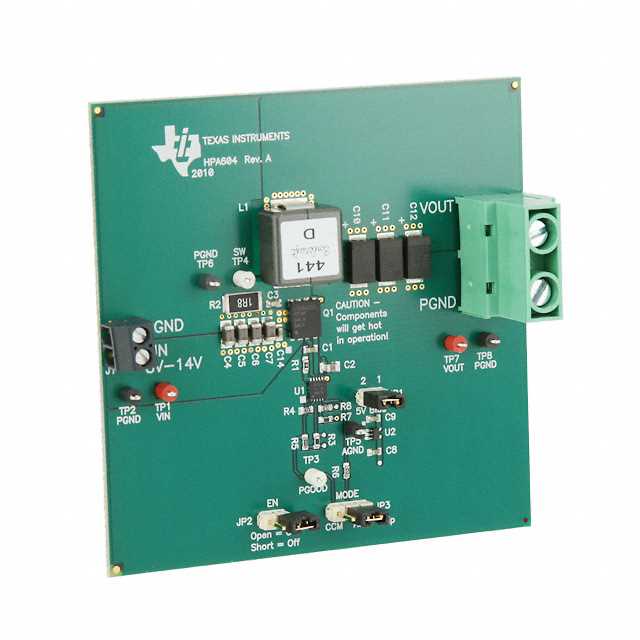

Texas Instruments CSD86350Q5DEVM-604	DC/DC Step Down	Non-Isolated	1	Fully Populated	CSD86350Q	Board(s)	290 kHz	8 V	13 V	Buck	25 A	1.2 V

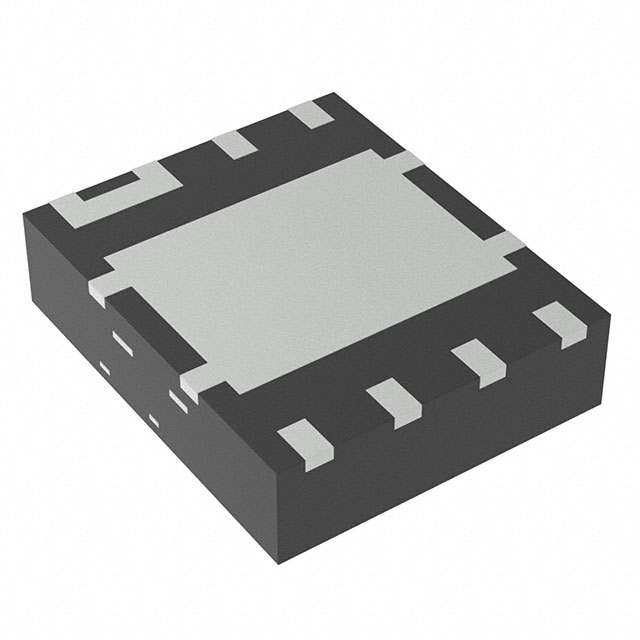

Texas Instruments CSD86350Q5DT													MOSFET (Metal Oxide)	13 W	Surface Mount	1.1 mOhm 5 mOhm	10.7 nC	25 nC	25 V	1870 pF 4000 pF	-55 °C	150 °C	8-PowerLDFN	40 A	1.6 V 2.1 V	2 N-Channel (Half Bridge)	8-LSON (5x6)
Texas Instruments CSD86350Q5D													MOSFET (Metal Oxide)	13 W	Surface Mount	6 mOhm	10.7 nC		25 V	1870 pF	-55 °C	150 °C	8-PowerLDFN	40 A	2.1 V	2 N-Channel (Half Bridge)	8-LSON (5x6)	Logic Level Gate

Catalog

25-V, N channel synchronous buck NexFET™ power MOSFET, SON 5 mm x 6 mm power block, 40 A

Key Features

• Half-Bridge Power Block90% System Efficiency at 25 AUp to 40-A OperationHigh-Frequency Operation (up to 1.5 MHz)High-Density SON 5-mm × 6-mm FootprintOptimized for 5-V Gate DriveLow-Switching LossesUltra-Low Inductance PackageRoHS CompliantHalogen FreeLead-Free Terminal PlatingAPPLICATIONSSynchronous Buck ConvertersHigh-Frequency ApplicationsHigh-Current, Low-Duty Cycle ApplicationsMultiphase Synchronous Buck ConvertersPOL DC-DC ConvertersIMVP, VRM, and VRD ApplicationsAll other trademarks are the property of their respective ownersHalf-Bridge Power Block90% System Efficiency at 25 AUp to 40-A OperationHigh-Frequency Operation (up to 1.5 MHz)High-Density SON 5-mm × 6-mm FootprintOptimized for 5-V Gate DriveLow-Switching LossesUltra-Low Inductance PackageRoHS CompliantHalogen FreeLead-Free Terminal PlatingAPPLICATIONSSynchronous Buck ConvertersHigh-Frequency ApplicationsHigh-Current, Low-Duty Cycle ApplicationsMultiphase Synchronous Buck ConvertersPOL DC-DC ConvertersIMVP, VRM, and VRD ApplicationsAll other trademarks are the property of their respective owners

Description

The CSD86350Q5D NexFET™ power block is an optimized design for synchronous buck applications offering high-current, high-efficiency, and high-frequency capability in a small 5-mm × 6-mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution capable of offering a high-density power supply when paired with any 5-V gate drive from an external controller/driver. The CSD86350Q5D NexFET™ power block is an optimized design for synchronous buck applications offering high-current, high-efficiency, and high-frequency capability in a small 5-mm × 6-mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution capable of offering a high-density power supply when paired with any 5-V gate drive from an external controller/driver.
