QTC Series

DIN Rail Terminal Blocks QTC 1.5/ 1P BU

Manufacturer: Phoenix Contact

Catalog

DIN Rail Terminal Blocks QTC 1.5/ 1P BU

Catalog

DIN Rail Terminal Blocks QTC 1.5/ 1P BU

Part	Material - Insulation	Material Flammability Rating	Termination Style	Voltage - IEC	Current - IEC	Type	Terminal - Width [y]	Color	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Disconnect Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Voltage - UL	Number of Positions	Current - UL	Mounting Type	Housing Color
Phoenix Contact 3050413	Nylon Polyamide (PA)	UL94 V-0	IDC	400 V	17.5 A	Disconnect	5.2 mm	Gray	0.25 mm²	1.5 mm²	Open	16 AWG	24 AWG	1

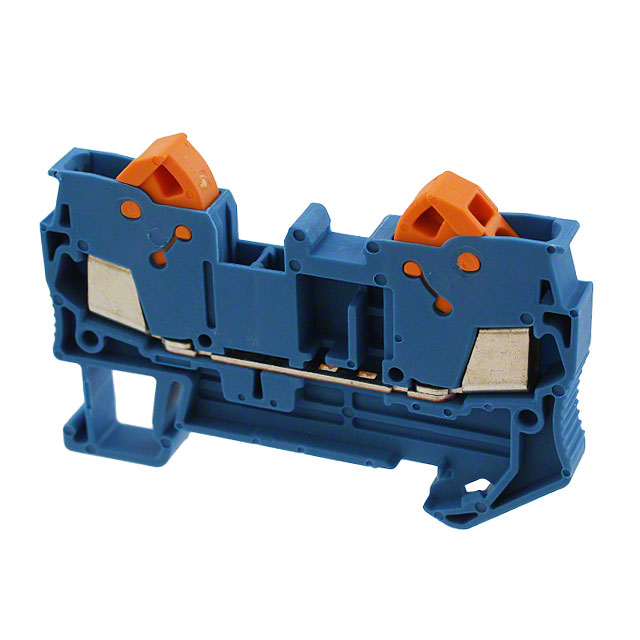

Phoenix Contact 3206429	Nylon Polyamide (PA)	UL94 V-0	IDC	800 V	24 A	Feed Through	6.2 mm	Blue	0.5 mm²	2.5 mm²		14 AWG	20 AWG	1	600 V	2
Phoenix Contact 3205051			IDC	800 V	17.5 A	Feed Through	5.2 mm	Blue	0.25 mm²	1.5 mm²		16 AWG	24 AWG	1	600 V		10 A
Phoenix Contact 3205048			IDC	800 V	17.5 A	Feed Through	5.2 mm	Gray	0.25 mm²	1.5 mm²		16 AWG	24 AWG	1	600 V		10 A
Phoenix Contact 3050086			IDC Plug Receptacles	500 V	17.5 A	Plug Connection	5.2 mm		0.25 mm²	1.5 mm²		16 AWG	24 AWG	1		2	10 A	DIN Rail	Blue
