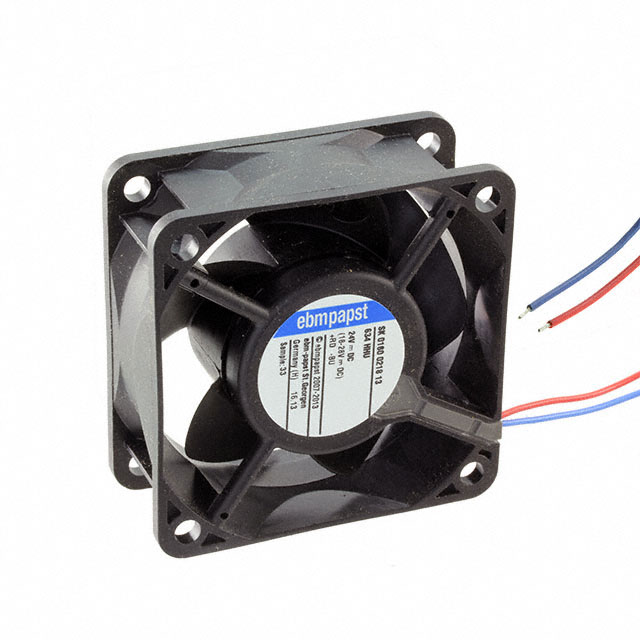

634H Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
DC FAN AXIAL BALL BEARING 24V 18V TO 28V 34.1CFM 44DB 60 X 60 X 25.4MM
| Part | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Noise | RPM | Power (Watts) | Ingress Protection | Size / Dimension [z] | Size / Dimension [x] | Width [y] | Bearing Type | Termination | Air Flow | Air Flow | Voltage - Rated | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Weight | Weight | Fan Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 18 VDC | 28 V | Polyamide (PA) Nylon Fiberglass Reinforced | 44 dB(A) | 8500 RPM | 3.2 W | IP68 - Dust Tight Waterproof | 60 mm | 60 mm | 25.4 mm | Ball | 2 Wire Leads | 0.955 m³/min | 34.1 CFM | 24 VDC | UL | -20 ░C | 70 °C | 0.154 lb | 69.85 g | Tubeaxial |
