25SEPF Series

Manufacturer: Panasonic Electronic Components

Catalog

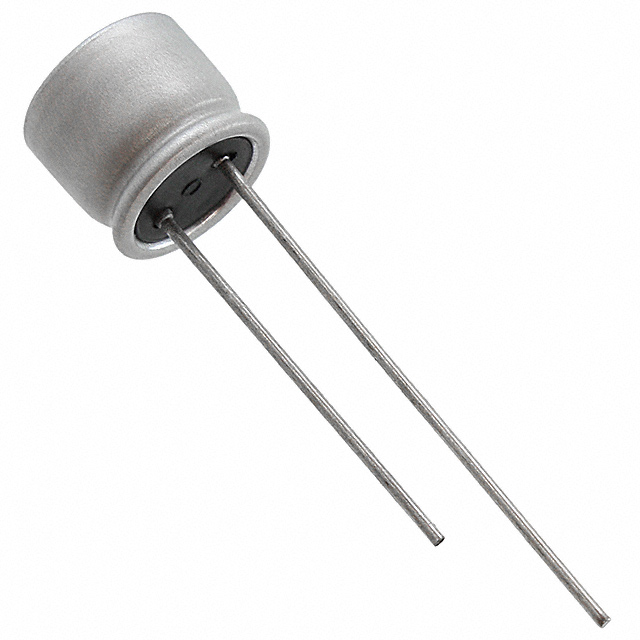

CAP ALUM POLY 82UF 20% 25V TH

Part	Package / Case	Ripple Current @ High Frequency	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Type	Capacitance	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components 25SEPF82M+TSS	Can Radial	3000 mA	20 %	-55 C	105 ░C	0.315 in	8 mm	General Purpose	Through Hole	0.276 in	7 mm	25 VDC	150 mA	0.138 in	3.5 mm	28 mOhm	5000 Hrs	Polymer	0.082 mF
Panasonic Electronic Components 25SEPF180M	Can Radial	4.65 A	20 %	-55 C	105 ░C	0.315 in	8 mm	General Purpose	Through Hole	0.472 in		25 VDC	232.5 mA	0.138 in	3.5 mm	16 mOhm	5000 Hrs	Polymer	180 µF	12 mm
Panasonic Electronic Components 25SEPF56M+TSS	Can Radial	2.8 A	20 %	-55 C	105 ░C	0.248 "	6.3 mm	General Purpose	Through Hole	0.236 "		25 VDC	140 mA	0.098 in	2.5 mm	30 mOhms	5000 Hrs	Polymer	56 µF	6 mm
Panasonic Electronic Components 25SEPF330M	Can Radial		20 %	-55 C	105 ░C	0.394 in	10 mm	General Purpose	Through Hole			25 VDC	250 mA	0.197 "	5 mm	14 mOhms	5000 Hrs	Polymer	330 µF		0.512 "	13 mm
Panasonic Electronic Components 25SEPF180M+TSS	Can Radial	4.65 A	20 %	-55 C	105 ░C	0.315 in	8 mm	General Purpose	Through Hole	0.472 in		25 VDC	232.5 mA	0.138 in	3.5 mm	16 mOhm	5000 Hrs	Polymer	180 µF	12 mm
Panasonic Electronic Components 25SEPF82M	Can Radial	3000 mA	20 %	-55 C	105 ░C	0.315 in	8 mm	General Purpose	Through Hole	0.276 in	7 mm	25 VDC	150 mA	0.138 in	3.5 mm	28 mOhm	5000 Hrs	Polymer	0.082 mF
Panasonic Electronic Components 25SEPF56M	Can Radial	2.8 A	20 %	-55 C	105 ░C	0.248 "	6.3 mm	General Purpose	Through Hole	0.236 "		25 VDC	140 mA	0.098 in	2.5 mm	30 mOhms	5000 Hrs	Polymer	56 µF	6 mm
