892-035 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 35POS 0.100
| Part | Material - Insulation | Termination Rows | Read Out | Contact Type | Termination | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Positions | Card Type | Contact Material | Gender | Contact Finish | Flange Feature | Card Thickness [Max] | Card Thickness [Min] | Number of Rows | Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

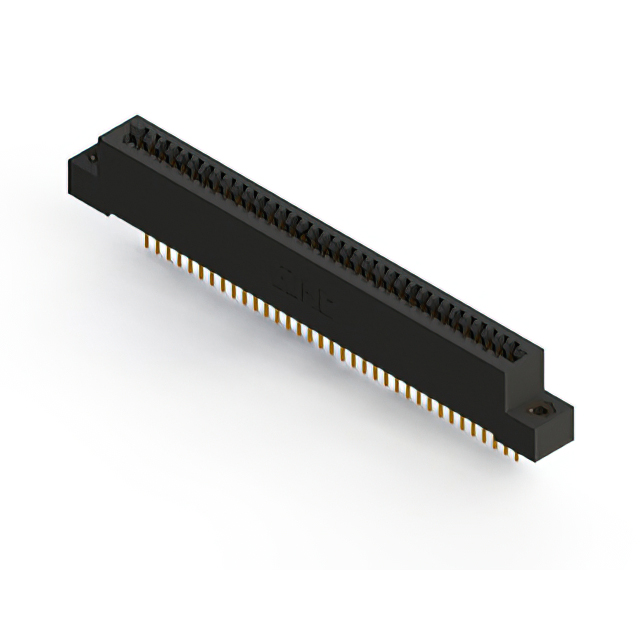

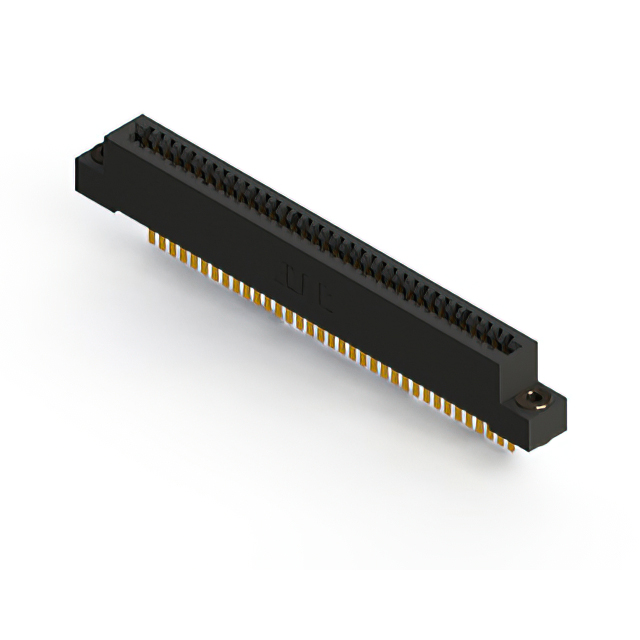

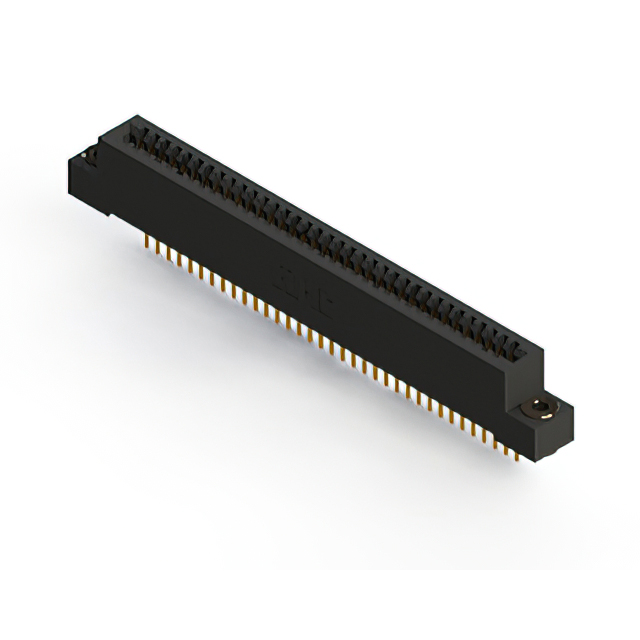

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Single | Cantilever | Solder | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Through Hole | 35 | Non Specified - Single Edge | Copper Alloy | Female | Gold | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Black | 125 °C | -40 C | 35 | ||

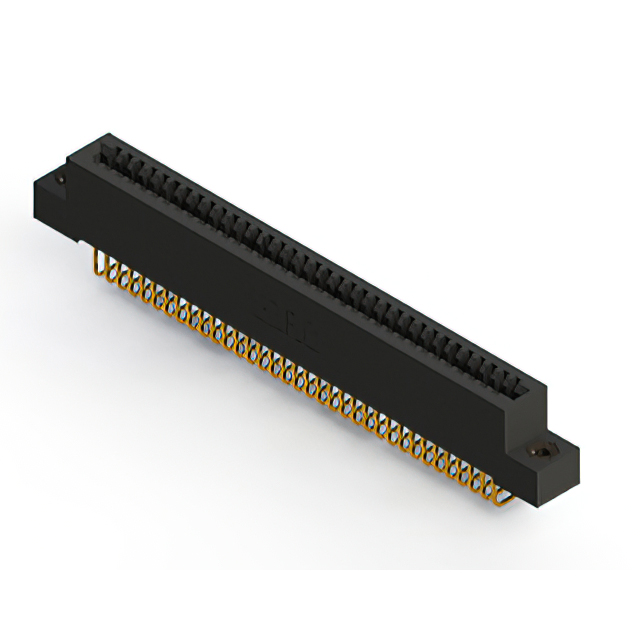

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Single | Cantilever | Wire Wrap | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Through Hole | 35 | Non Specified - Single Edge | Copper Alloy | Female | Gold | Floating Bobbin Flush Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Black | 125 °C | -40 C | 35 | 0.116 " | 2.95 mm |

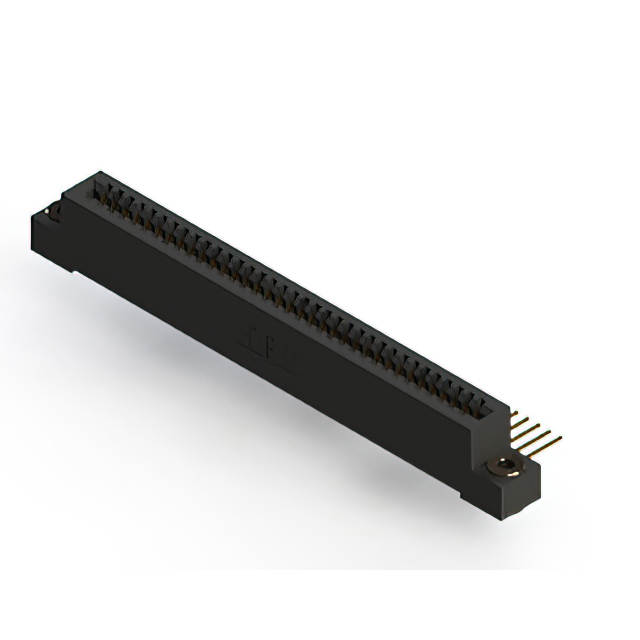

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Single | Cantilever | Solder | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Right Angle Through Hole | 35 | Non Specified - Single Edge | Copper Alloy | Female | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Black | 125 °C | -40 C | 35 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Single | Cantilever | Solder | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Through Hole | 35 | Non Specified - Single Edge | Copper Alloy | Female | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Black | 125 °C | -40 C | 35 | |||

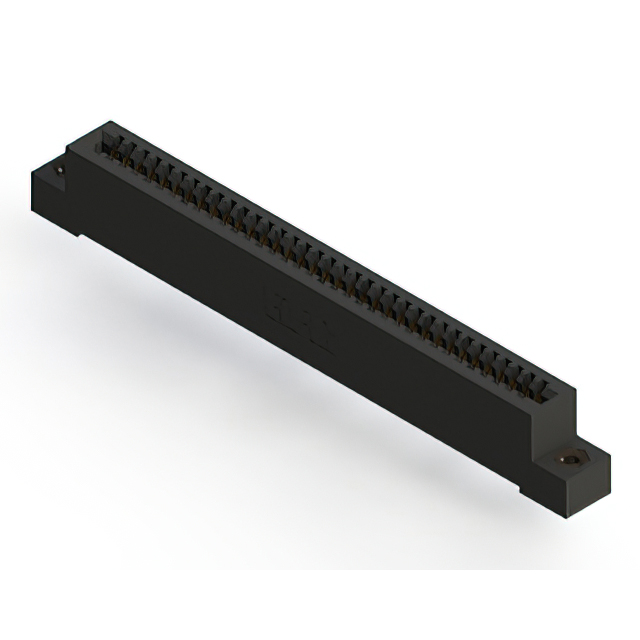

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Single | Cantilever | Solder Eyelet(s) | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Through Hole | 35 | Non Specified - Single Edge | Copper Alloy | Female | Gold | Flush Mount Side Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Black | 125 °C | -40 C | 35 | 0.128 " | 3.25 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Single | Cantilever | Wire Wrap | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Through Hole | 35 | Non Specified - Single Edge | Copper Alloy | Female | Gold | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Black | 125 °C | -40 C | 35 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Single | Cantilever | Solder | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Through Hole | 35 | Non Specified - Single Edge | Copper Alloy | Female | Gold | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Black | 125 °C | -40 C | 35 | 0.128 " | 3.25 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Single | Cantilever | Solder | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Through Hole | 35 | Non Specified - Single Edge | Copper Alloy | Female | Gold | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Black | 125 °C | -40 C | 35 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Single | Cantilever | Solder | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Through Hole | 35 | Non Specified - Single Edge | Copper Alloy | Female | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Black | 125 °C | -40 C | 35 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Single | Cantilever | Solder | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Right Angle Through Hole | 35 | Non Specified - Single Edge | Copper Alloy | Female | Gold | Floating Bobbin Flush Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Black | 125 °C | -40 C | 35 | 0.116 " | 2.95 mm |
