CPC7512 Series

DUAL 1-FORM-A HIGH VOLTAGE ANALOG MOSFET

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

DUAL 1-FORM-A HIGH VOLTAGE ANALOG MOSFET

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels [custom]	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Mounting Type	Applications	On-State Resistance (Max) [Max]	Multiplexer/Demultiplexer Circuit	Features	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [y]
Littelfuse/Commercial Vehicle Products CPC7512Z	85 °C	-40 °C	2	5.5 V	4.5 V	Surface Mount	Ultrasound	29 Ohm	3:1	Fault Protection T-Switch Configuration	20-SOIC	20-SOIC	0.295 in	7.5 mm
Littelfuse/Commercial Vehicle Products CPC7512ZTR	85 °C	-40 °C	2	5.5 V	4.5 V	Surface Mount	Ultrasound	29 Ohm	3:1	Fault Protection T-Switch Configuration	20-SOIC	20-SOIC	0.295 in	7.5 mm

Catalog

DUAL 1-FORM-A HIGH VOLTAGE ANALOG MOSFET

Key Features

• Guaranteed Break-Before-Make

• Low, Matched On-Resistance

• Switch Voltage up to ±320 V

• 60dB Off Isolation at 1MHz

• Flexible Switch Configuration

• Smart Logic for Power-Up/Hot-Plug State Control

• 5V Operation with Very Low Power Consumption

• Thermal Shutdown Protects Against Fault Conditions

• TTL Logic-Level Inputs

• Input Latch

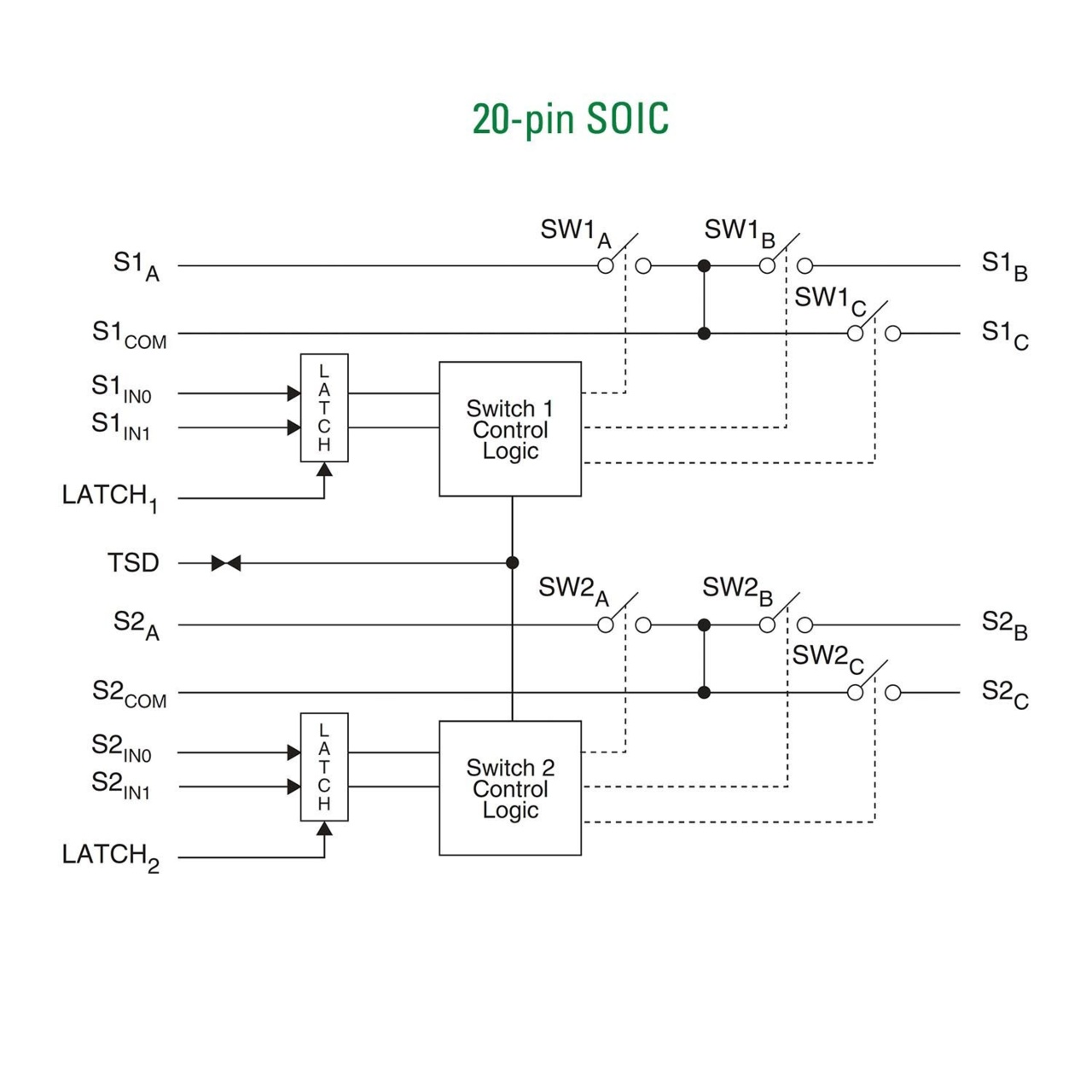

Description

The CPC7512 dual 1-Form-A high voltage, high frequency, isolated analog switch builds upon our design and fabrication expertise for industrial applications. This monolithic solid state device provides the switching functionality of two normally open (1-Form-A) solid state relays for high frequency applications in one small economical package. Both switches incorporate a compensation method to minimize open-state capacitance for improved off-isolation over frequency. Designed to provide flexible single-ended or differential access to high voltage networks, the CPC7512 is configured as two independent switches with optimized state control. The self-biasing switches do not require external high-voltage supplies for proper operation. An integrated thermal shutdown feature provides not only enhanced protection for devices connected to high voltage networks up to +320V, but also an external signal to indicate the device is shut down.
