1241.6823 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

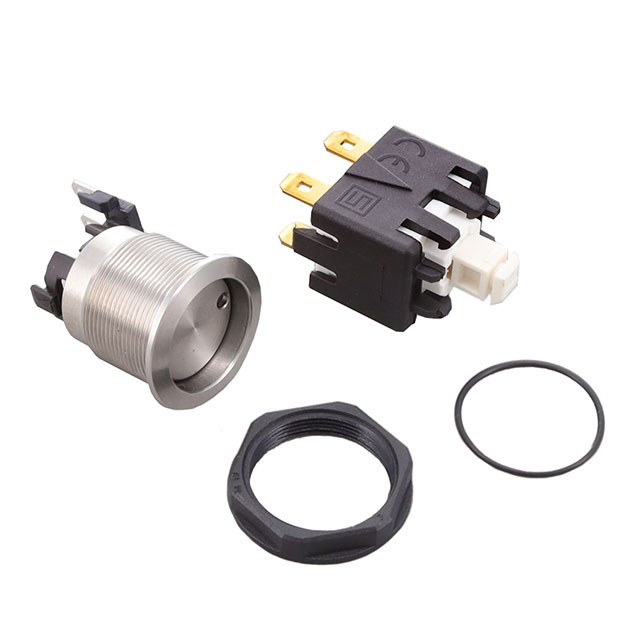

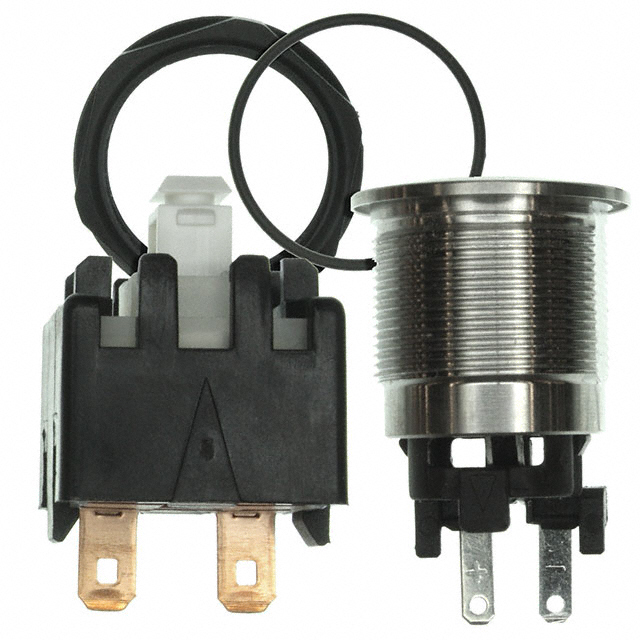

SWITCH PUSHBUTTON DPST 12A 250V
| Part | Electrical Life | Mechanical Life | Type | Actuator Marking | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Voltage (Nominal) | Voltage Rating - DC | Color - Actuator/Cap | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Ingress Protection | Circuit | Illumination Type, Color | Voltage Rating - AC | Termination Style | Mounting Type | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 50000 Cycles | 100000 Cycles | Anti-Vandal Illuminated | No Marking | Off-On | 85 °C | -20 ░C | 1.9 VDC | 30 V | Silver | 19.1 mm | 12 A | IP64 - Dust Tight Water Resistant | DPST | LED Red | 250 V | Quick Connect | Panel Mount Front | Button Round |
 SCHURTER Inc. | 50000 Cycles | 100000 Cycles | Anti-Vandal Illuminated | No Marking | Off-On | 85 °C | -20 ░C | 3.7 VDC | 30 V | Silver | 19.1 mm | 12 A | IP64 - Dust Tight Water Resistant | SPST | Blue LED | 250 V | Quick Connect | Panel Mount Front | Button Round |
