CQT1 Series

Catalog

TAPE FILM AMBER 1"X36YDS

Part	Shelf Life Start	Shelf Life	Color	Backing, Carrier	Thickness	Thickness	Thickness	Temperature Range [Max]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Min]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Width [x]	Width [x]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Tape Type	Adhesive	Length	Length	Length	Width	Width	Width

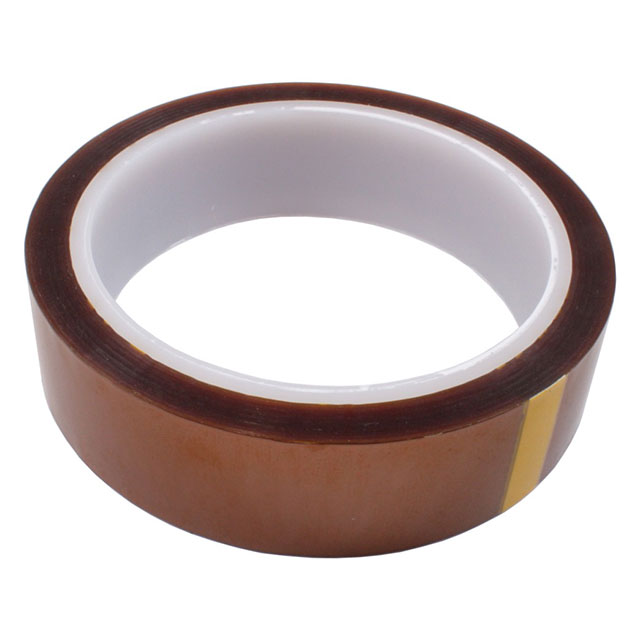

Chip Quik Inc. CQT1-1.000	Date of Manufacture	36 Months	Amber	Polyimide	2 mils	0.002 in	0.051 mm	260 °C	260 °C	-73 °C	-100 °F	1 mils	0.025 mm	0.001 "	25.4 mm	1 in	1 mils	0.025 mm	0.001 in	Film	Silicone	32.9 m	108 ft	36 yd

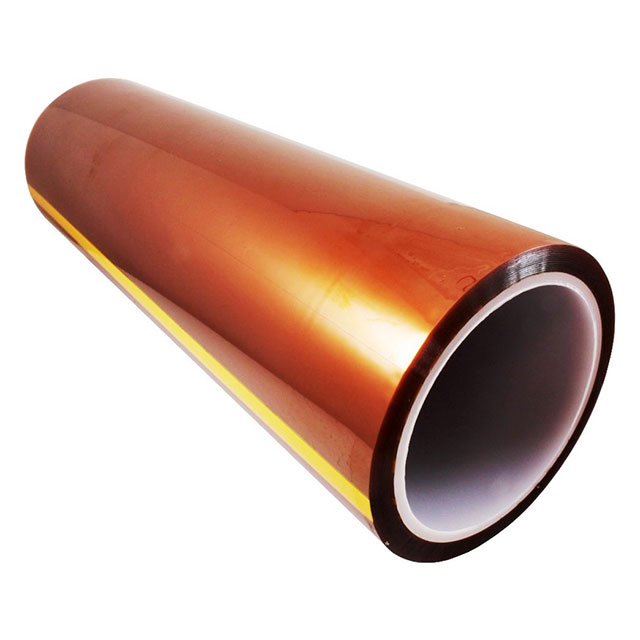

Chip Quik Inc. CQT1-12.000	Date of Manufacture	36 Months	Amber	Polyimide	2 mils	0.002 in	0.051 mm	260 °C	260 °C	-73 °C	-100 °F	1 mils	0.025 mm	0.001 "	304.8 mm	12 "	1 mils	0.025 mm	0.001 in	Film	Silicone	32.9 m	108 ft	36 yd

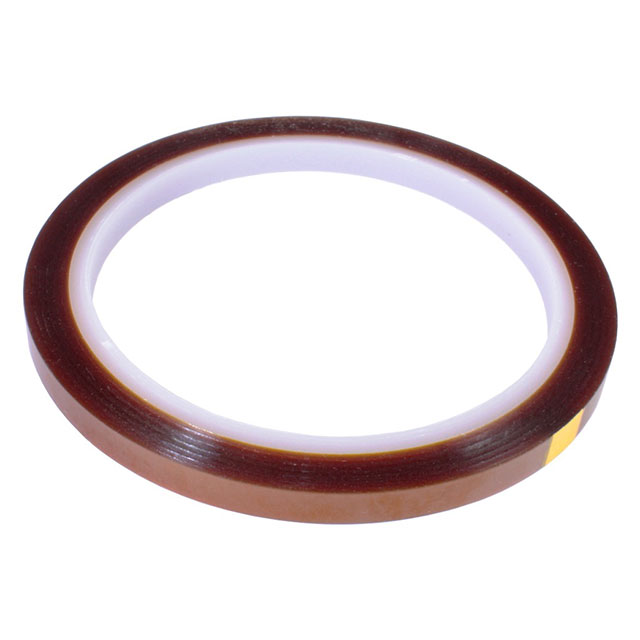

Chip Quik Inc. CQT1-0.250	Date of Manufacture	36 Months	Amber	Polyimide	2 mils	0.002 in	0.051 mm	260 °C	260 °C	-73 °C	-100 °F	1 mils	0.025 mm	0.001 "			1 mils	0.025 mm	0.001 in	Film	Silicone	32.9 m	108 ft	36 yd	0.25 in	0.25 in	6.35 mm

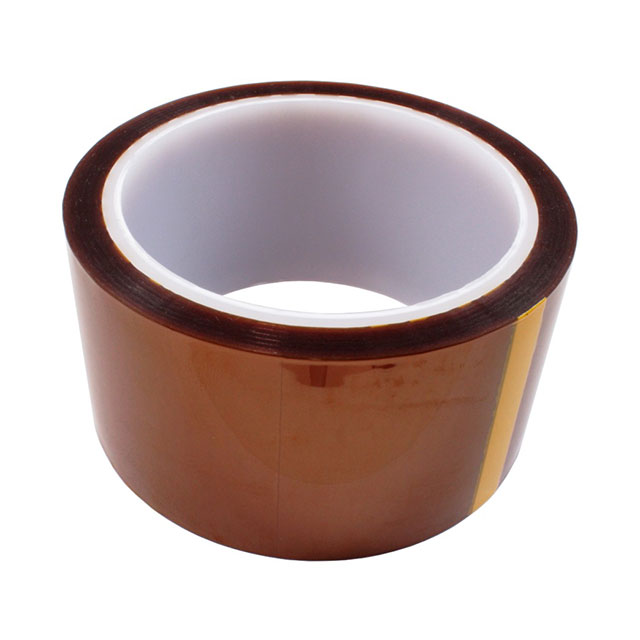

Chip Quik Inc. CQT1-2.000	Date of Manufacture	36 Months	Amber	Polyimide	2 mils	0.002 in	0.051 mm	260 °C	260 °C	-73 °C	-100 °F	1 mils	0.025 mm	0.001 "	50.8 mm	2 in	1 mils	0.025 mm	0.001 in	Film	Silicone	32.9 m	108 ft	36 yd

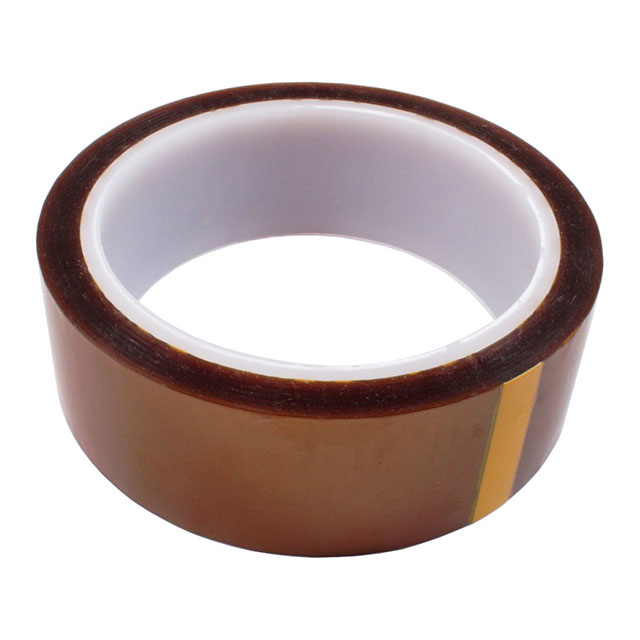

Chip Quik Inc. CQT1-1.250	Date of Manufacture	36 Months	Amber	Polyimide	2 mils	0.002 in	0.051 mm	260 °C	260 °C	-73 °C	-100 °F	1 mils	0.025 mm	0.001 "			1 mils	0.025 mm	0.001 in	Film	Silicone	32.9 m	108 ft	36 yd	31.75 mm		1.25 in

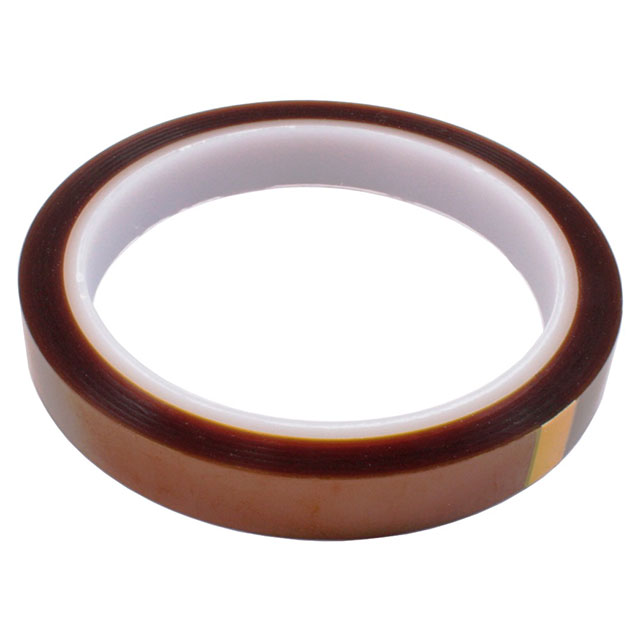

Chip Quik Inc. CQT1-0.500	Date of Manufacture	36 Months	Amber	Polyimide	2 mils	0.002 in	0.051 mm	260 °C	260 °C	-73 °C	-100 °F	1 mils	0.025 mm	0.001 "			1 mils	0.025 mm	0.001 in	Film	Silicone	32.9 m	108 ft	36 yd	0.5 "	0.5 in	12.7 mm
