D38999/26WA Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

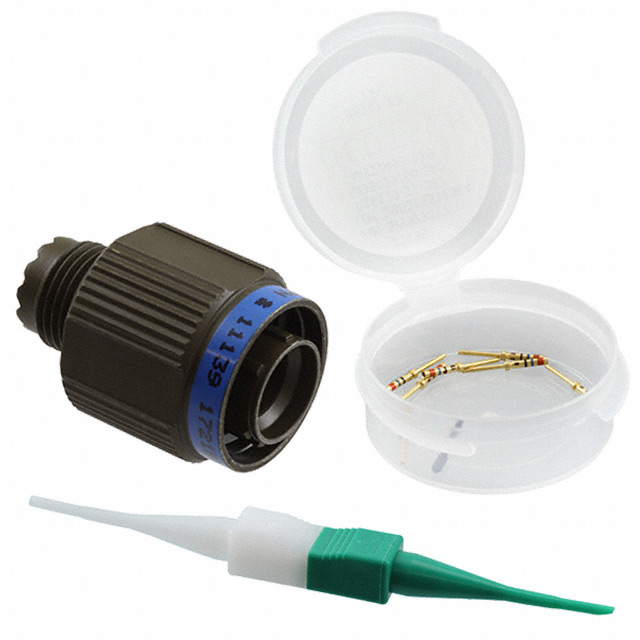

CONN PLUG MALE 6POS GOLD CRIMP
| Part | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Contact Material | Primary Material | Qualification | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Color | Connector Type | Features | Shell Size, MIL | Shielding | Ingress Protection | Grade | Shell Material | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Mounting Type | Fastening Type | Number of Positions | Current Rating (Amps) | Contact Finish - Mating | Termination | Shell Finish | Contact Shape | Contact Type | Housing Color | Note | Contact Size | Type | Voltage Rating | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Thermoplastic | 50 µin | 1.27 µm | Aviation Communication Systems Industrial Military | Copper Alloy | Metal | MIL-DTL-38999 Series III | -65 ░C | 175 °C | N (Normal) | Olive Drab | Plug Male Pins | Self Locking | A | Shielded | Environment Resistant | Military | Aluminum | 35 | 9 | Free Hanging (In-Line) | Threaded | 6 | 5 A | Gold | Crimp | Olive Drab Cadmium | ||||||||
TE Connectivity AMP Connectors | Thermoplastic | Metal | MIL-DTL-38999 Series III | -65 ░C | 175 °C | B | Plug Housing | Coupling Nut | A | Shielded | Environment Resistant | Military | Aluminum | 35 | 9 | Free Hanging (In-Line) | Threaded | 6 | Cadmium | Circular | Crimp | Olive Drab | Contacts Not Included | 22D | For Female Sockets | ||||||||||
 TE Connectivity AMP Connectors | Thermoplastic | 50 µin | 1.27 µm | Aviation Communication Systems Industrial Military | Copper Alloy | Metal | MIL-DTL-38999 Series III | -65 ░C | 175 °C | N (Normal) | Olive Drab | Plug Female Sockets | Self Locking | A | Shielded | Environment Resistant | Military | Aluminum | 35 | 9 | Free Hanging (In-Line) | Threaded | 6 | 5 A | Gold | Crimp | Olive Drab Cadmium | ||||||||
TE Connectivity AMP Connectors | Thermoplastic | 50 µin | 1.27 µm | Aviation Communication Systems Industrial Military | Copper Alloy | Metal | MIL-DTL-38999 Series III | -65 ░C | 175 °C | C | Olive Drab | Plug Female Sockets | Coupling Nut | Shielded | Environment Resistant | Military | Aluminum | 98 | 9 | Free Hanging (In-Line) | Threaded | Gold | Crimp | Olive Drab Cadmium | 600 VAC | 850 VDC |
