121R Series

Manufacturer: Serpac

Catalog

ENCLOSURES, BOXES, & CASES 121RI ALMOND ENCLOSURE

Part	Weight [custom]	Weight [custom]	Area (L x W)	Area (L x W)	Container Type	Design	Color	Material Flammability Rating	Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Thickness	Thickness	Ratings	Height	Height	Features

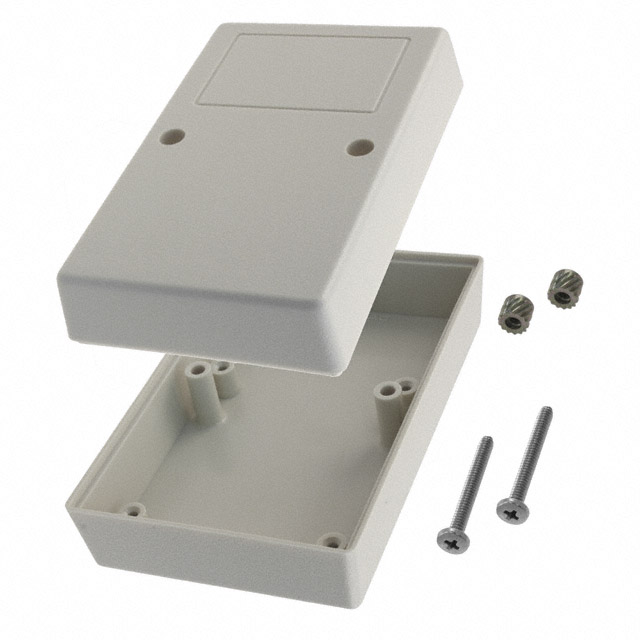

Serpac 121RI,AL	0.158 lb	71.67 g	69 cm²	10.7 in²	Box	Hand Held Split Sides	Almond	UL94 HB	ABS Plastic	2.6 in	104.14 mm	4.1 "	66.04 mm	2.54 mm	0.1 in	IP40 NEMA 1	1.5 in	38.1 mm	Front Access PCB Supports

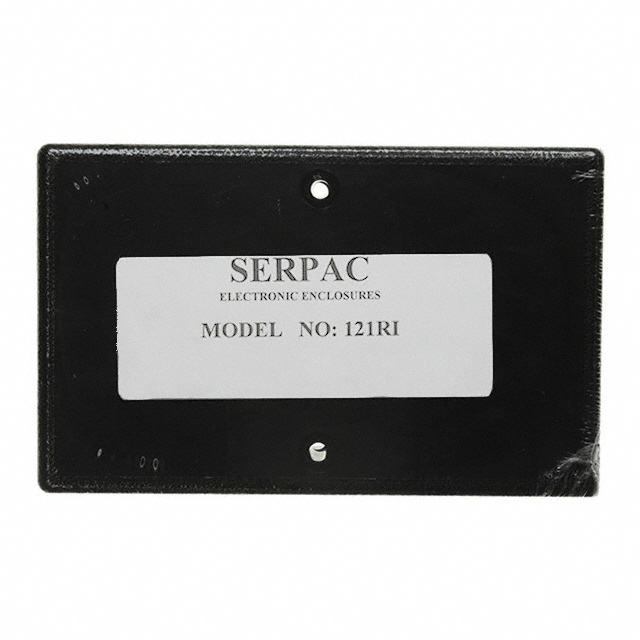

Serpac 121RI,BK	0.158 lb	71.67 g	69 cm²	10.7 in²	Box	Hand Held Split Sides	Black	UL94 HB	ABS Plastic	2.6 in	104.14 mm	4.1 "	66.04 mm	2.54 mm	0.1 in	IP40 NEMA 1	1.5 in	38.1 mm	Front Access PCB Supports

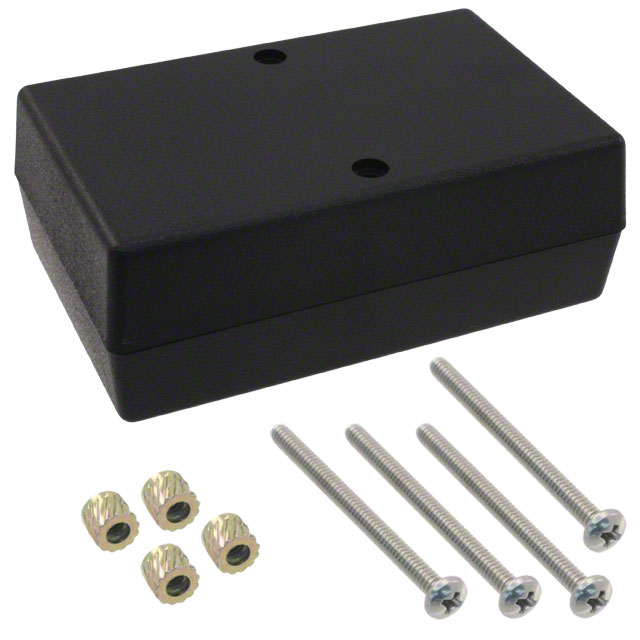

Serpac 121R,BK	0.158 lb	71.67 g	69 cm²	10.7 in²	Box	Hand Held Split Sides	Black	UL94 HB	ABS Plastic	2.6 in	104.14 mm	4.1 "	66.04 mm	2.54 mm	0.1 in	IP40 NEMA 1	1.5 in	38.1 mm	Front Access PCB Supports

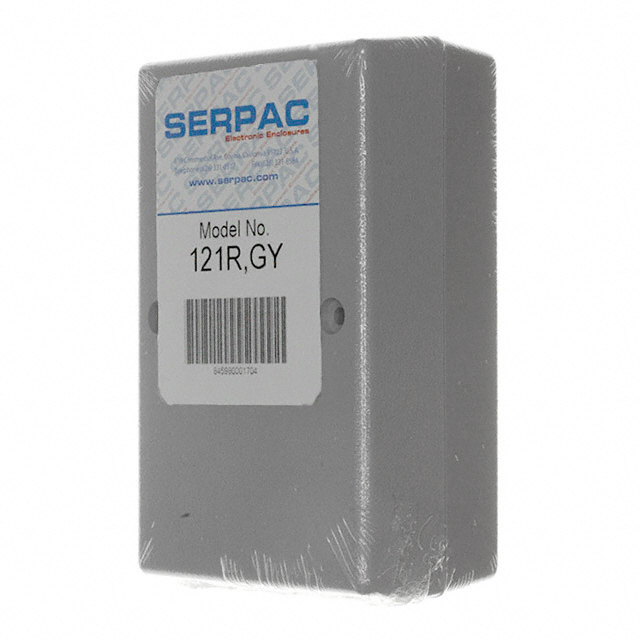

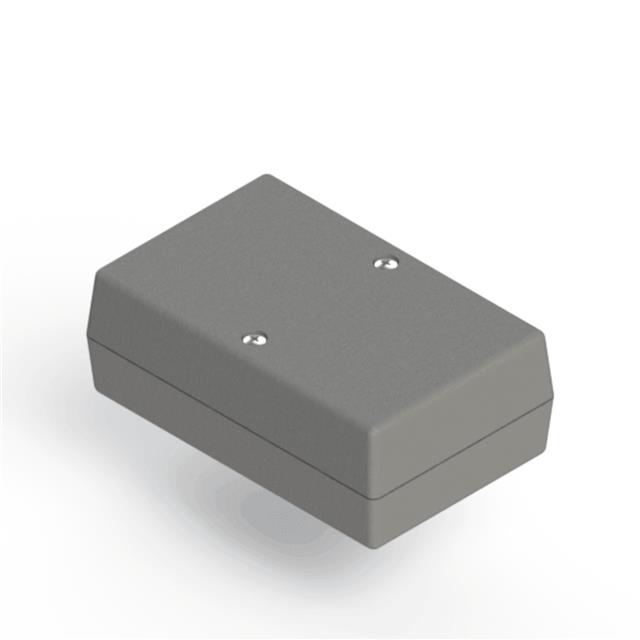

Serpac 121R,GY	0.158 lb	71.67 g	69 cm²	10.7 in²	Box	Hand Held Split Sides	Gray	UL94 HB	ABS Plastic	2.6 in	104.14 mm	4.1 "	66.04 mm	2.54 mm	0.1 in	IP40 NEMA 1	1.5 in	38.1 mm	Front Access PCB Supports

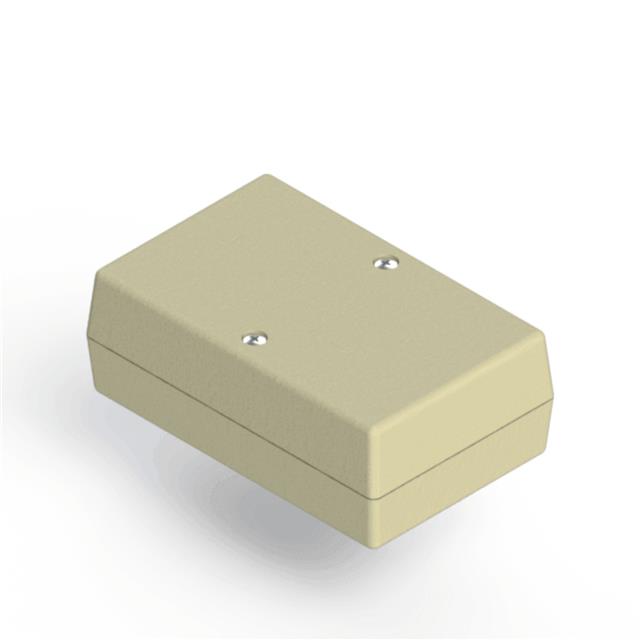

Serpac 121R,AL	0.158 lb	71.67 g	69 cm²	10.7 in²	Box	Hand Held Split Sides	Almond	UL94 HB	ABS Plastic	2.6 in	104.14 mm	4.1 "	66.04 mm	2.54 mm	0.1 in	IP40 NEMA 1	1.5 in	38.1 mm	Front Access PCB Supports

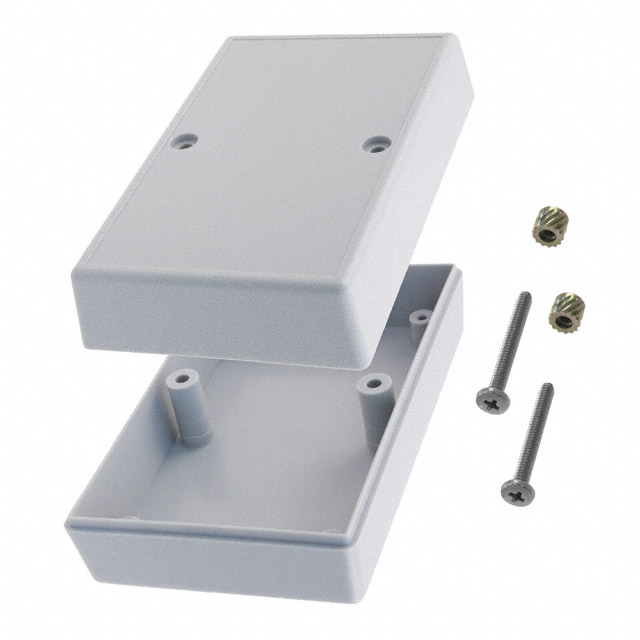

Serpac 121RI,GY	0.158 lb	71.67 g	69 cm²	10.7 in²	Box	Hand Held Split Sides	Gray	UL94 HB	ABS Plastic	2.6 in	104.14 mm	4.1 "	66.04 mm	2.54 mm	0.1 in	IP40 NEMA 1	1.5 in	38.1 mm	Front Access PCB Supports
