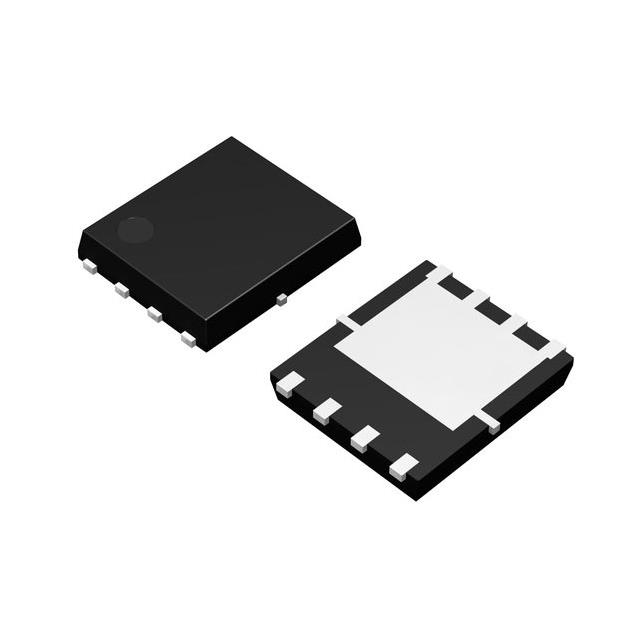

Pch -80V -43A, HSOP8, Power MOSFET
Description
AI
RS1N110AT is a power MOSFET with low-on resistance and High power small mold package, suitable for switching and motor drives.
Beta
⌘K
Pch -80V -43A, HSOP8, Power MOSFET
Pch -80V -43A, HSOP8, Power MOSFET
| Part | Technology | Current - Continuous Drain (Id) @ 25°C | Current - Continuous Drain (Id) @ 25°C | FET Type | Mounting Type | Rds On (Max) @ Id, Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Package / Case | Input Capacitance (Ciss) (Max) @ Vds | Drive Voltage (Max Rds On, Min Rds On) | Gate Charge (Qg) (Max) @ Vgs [Max] | Supplier Device Package | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | MOSFET (Metal Oxide) | 43 A | 11 A | P-Channel | Surface Mount | 21 mOhm | 80 V | 20 V | 8-PowerTDFN | 5800 pF | 6 V 10 V | 135 nC | 8-HSOP | 150 °C |
