19400061 Series

Manufacturer: HARTING

Catalog

6B HPR PANEL FEED THROUGH HOUSING, SCREW LOCKING, OUTSIDE MOUNTING, 1XM32

Part	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Size	Housing Finish	Housing Material	Style	Housing Color	Features	Thread Size	Connector Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
HARTING 19400061117	125 °C	-40 C	Screw Locks on Hood	6B	Powder Coated	Aluminum Die Cast	Top Entry	Black	Corrosion Resistant	M32	Base - Panel Mount

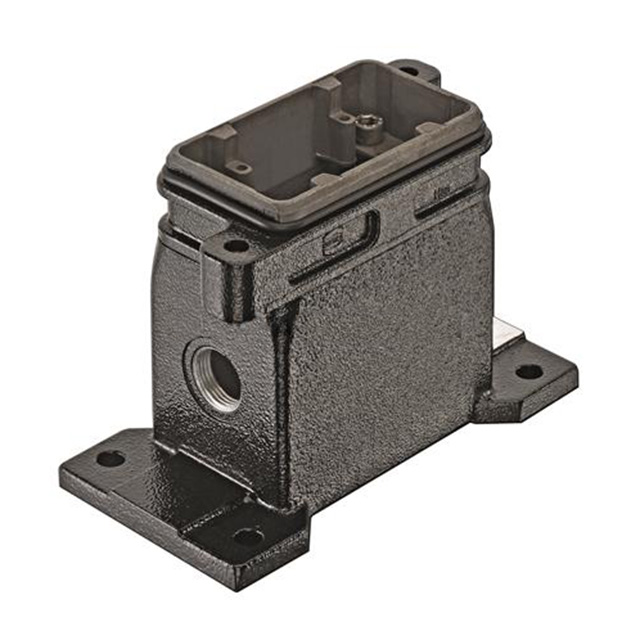

HARTING 19400061262	125 °C	-40 C	Screw Locks on Hood	6B	Powder Coated	Aluminum Die Cast	Side Entry	Black		M32	Base - Box Mount
HARTING 19400061213	125 °C	-40 C	Screw Locks on Hood	6B	Powder Coated	Aluminum Die Cast	Top Entry	Black	Corrosion Resistant		Base - Panel Mount	6.102 in	3.941 in	80 mm	100.1 mm	155 mm	3.15 in

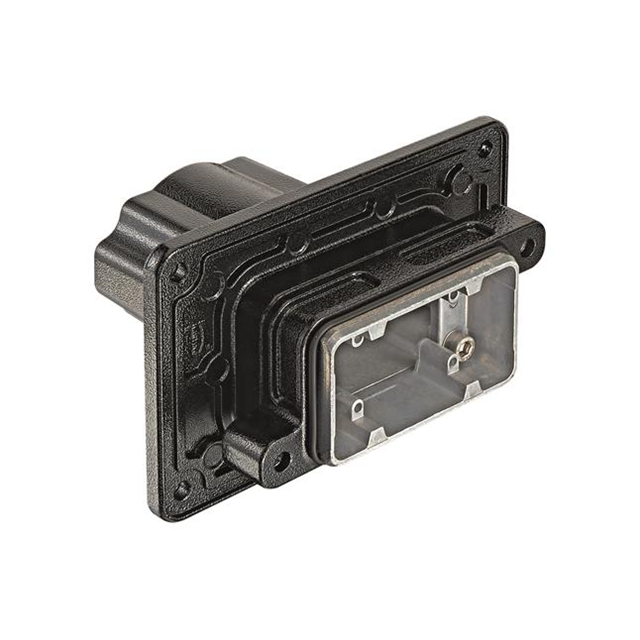

HARTING 19400061118	125 °C	-40 C	Screw Locks on Hood	6B		Aluminum Die Cast	Top Entry	Black	Corrosion Resistant	M32 M40	Base - Panel Mount	6.378 "	4.626 "	106 mm	117.5 mm	162 mm	4.173 "
