QBLP631 Series

Catalog

LED RED CLEAR 0805 SMD

Part	Configuration	Mounting Type	Wavelength - Dominant	Lens Transparency	Current - Test	Height (Max) [Max] [z]	Color	Size / Dimension [x]	Size / Dimension [y]	Lens Color	Supplier Device Package	Lens Size [y]	Lens Size [x]	Voltage - Forward (Vf) (Typ)	Lens Style	Package / Case	Millicandela Rating	Viewing Angle	Wavelength - Peak

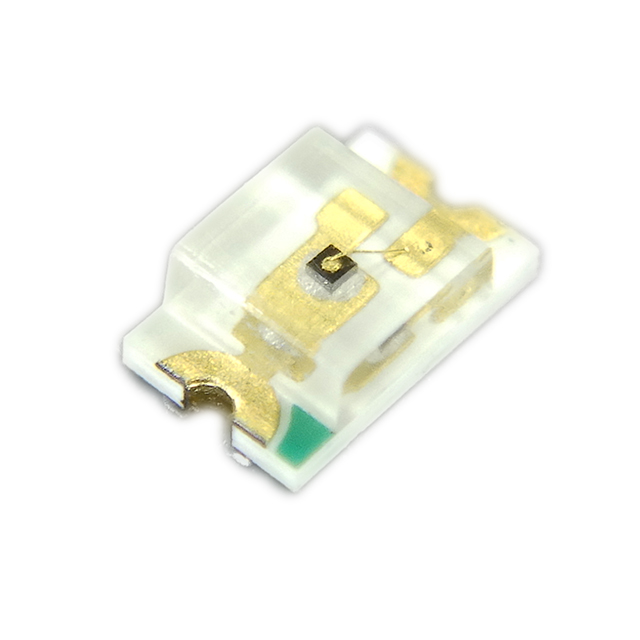

QT Brightek (QTB) QBLP631-S	Standard	Surface Mount	640 nm	Clear	20 mA	0.9 mm	Red	2 mm	1.25 mm	Colorless	0805	1.25 mm	1.3 mm	2 V	Rectangle with Flat Top	0805	50 mcd
QT Brightek (QTB) QBLP631-R	Standard	Surface Mount	625 nm	Clear	20 mA	0.9 mm	Red	2 mm	1.25 mm	Colorless	0805	1.25 mm	1.3 mm	2 V	Rectangle with Flat Top	0805	100 mcd	140 °

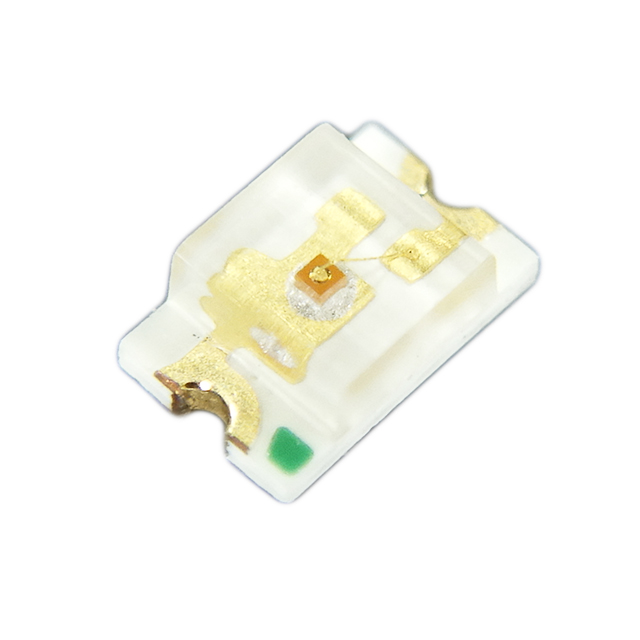

QT Brightek (QTB) QBLP631-AG1	Standard	Surface Mount	570 nm	Clear	20 mA	0.9 mm	Green	2 mm	1.25 mm	Colorless	0805	1.25 mm	1.3 mm	2 V	Rectangle with Flat Top	0805	63 mcd	140 °

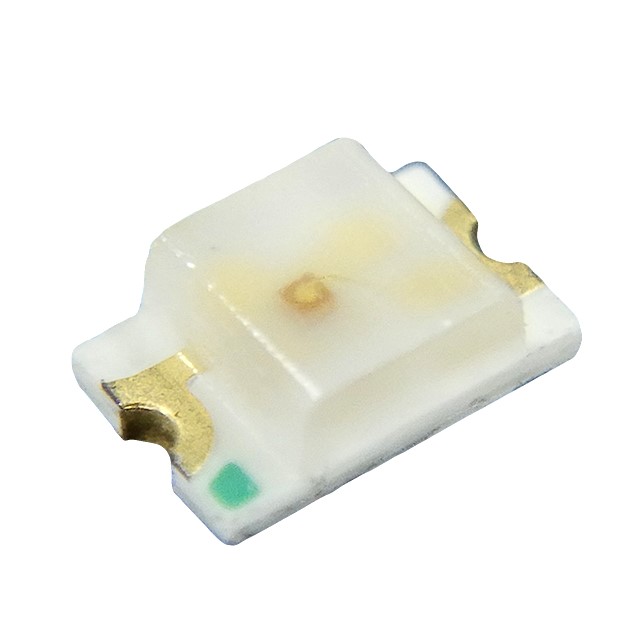

QT Brightek (QTB) QBLP631-YG1-2943	Standard	Surface Mount	570 nm	Diffused	20 mA	0.9 mm	Green	2 mm	1.25 mm	White	0805	1.25 mm	1.3 mm	2 V	Rectangle with Flat Top	0805	15 mcd	140 °	565 nm

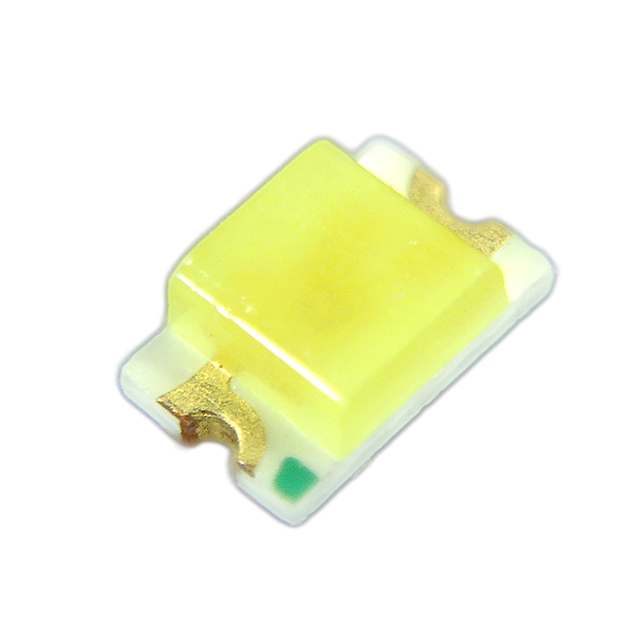

QT Brightek (QTB) QBLP631-IW5-2897	Standard	Surface Mount		Diffused	5 mA	0.9 mm	White	2 mm	1.25 mm	Yellow	0805	1.25 mm	1.3 mm	2.8 V	Rectangle with Flat Top	0805	240 mcd	140 °
QT Brightek (QTB) QBLP631-S3	Standard	Surface Mount	640 nm	Clear	20 mA	0.9 mm	Red	2 mm	1.25 mm	Colorless	0805	1.25 mm	1.3 mm	1.9 V	Rectangle with Flat Top	0805	25 mcd	140 °	660 nm
