ATS-03F Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

HEATSINK 60X60X10MM XCUT T412

...

Part	Type	Material Finish	Width [y]	Width [y]	Package Cooled	Fin Height [custom]	Fin Height [custom]	Length [x]	Length [x]	Material	Thermal Resistance @ Forced Air Flow	Shape	Attachment Method	Length	Length	Width [x]	Width [x]	Fin Height [z]	Fin Height [z]	Fin Height	Fin Height	Shape [custom]	Shape [custom]	Length	Width	Width
Advanced Thermal Solutions Inc. ATS-03F-129-C3-R0	Top Mount	Blue Anodized	2.362 in	60 mm	ASIC BGA CPU LGA	0.394 "	10 mm	2.362 in	60 mm	Aluminum	8.71 °C/W	Fins Square	Push Pin
Advanced Thermal Solutions Inc. ATS-03F-125-C2-R0	Top Mount	Blue Anodized			ASIC BGA CPU LGA	0.394 "	10 mm			Aluminum	8.92 °C/W	Fins Square	Push Pin	2.126 in	54 mm	54 mm	2.126 in
Advanced Thermal Solutions Inc. ATS-03F-03-C2-R0	Top Mount	Blue Anodized	1.575 in	40 mm	ASIC BGA CPU LGA					Aluminum	15.85 °C/W	Fins Square	Push Pin					15 mm	0.59 in
Advanced Thermal Solutions Inc. ATS-03F-15-C2-R0	Top Mount	Blue Anodized			ASIC BGA CPU LGA			1.969 in	50 mm	Aluminum	7.44 °C/W	Fins Square	Push Pin			50 mm	1.969 in			25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-03F-31-C3-R0	Top Mount	Blue Anodized			ASIC BGA CPU LGA					Aluminum	25.33 °C/W		Push Pin		2.28 in	36.83 mm	1.45 in			5.84 mm	0.23 in	Rectangular	Fins	57.9 mm
Advanced Thermal Solutions Inc. ATS-03F-93-C3-R0	Top Mount	Blue Anodized	1.575 in	40 mm	ASIC BGA CPU LGA					Aluminum	12.42 °C/W	Fins Square	Push Pin					20 mm	0.79 in
Advanced Thermal Solutions Inc. ATS-03F-142-C3-R0	Top Mount	Blue Anodized			ASIC BGA CPU LGA					Aluminum	10.26 °C/W	Fins Square	Push Pin	1.181 in	0.03 m	30 mm	1.181 in	15 mm	0.59 in
Advanced Thermal Solutions Inc. ATS-03F-149-C2-R0	Top Mount	Blue Anodized	1.378 "	35 mm	ASIC BGA CPU LGA			1.378 "		Aluminum	6.21 °C/W	Fins Square	Push Pin		35 mm			20 mm	0.79 in
Advanced Thermal Solutions Inc. ATS-03F-117-C2-R0	Top Mount	Blue Anodized			ASIC BGA CPU LGA	0.394 "	10 mm	1.772 in	45 mm	Aluminum	10.48 °C/W	Fins Square	Push Pin												1.772 in	45 mm

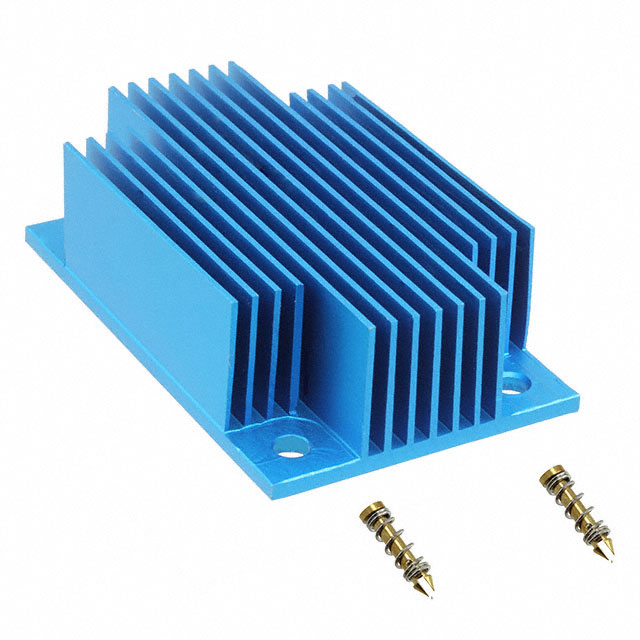

Advanced Thermal Solutions Inc. ATS-03F-33-C3-R0	Top Mount	Blue Anodized			ASIC BGA CPU LGA	0.7 in	17.78 mm			Aluminum	17.5 °C/W		Push Pin		2.28 in	36.83 mm	1.45 in					Rectangular	Fins	57.9 mm
