88189 Series

Catalog

026 HOUSING FFC PIN DR 100CL ROHS COMPLIANT: YES

Part	Insulation Diameter	Insulation Diameter [Min]	Insulation Diameter [Max]	Current Rating (Amps)	Note	Wire Gauge [Max]	Wire Gauge [Min]	Housing Color	Connector Type	Number of Rows [custom]	Number of Positions	Pitch	Pitch	Features	Locking Feature	Operating Temperature [Max]	Operating Temperature [Min]	Flat Flex Type	Housing Material	Material Flammability Rating	FFC, FCB Thickness	Voltage Rating

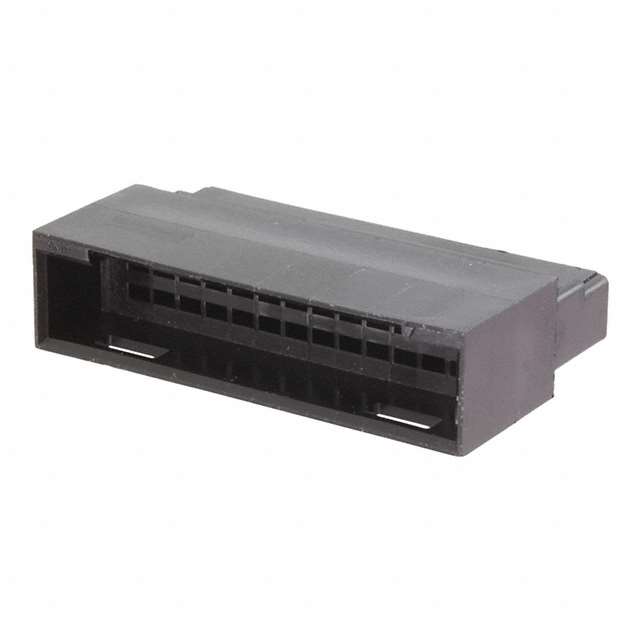

TE Connectivity AMP Connectors 1-88189-0	1.55 mm 1.75 mm	0.061 in	0.069 in	1.5 A	Contacts Not Included	24 AWG	22 AWG	Black	Housing for Male Contacts	2	26	0.1 "	2.54 mm	Positions Stamped	Detent Lock	105 ░C	-65 ░C	Discrete Wire FFC	Glass Filled Nylon Polyamide (PA)	UL94 V-0	0.015 mm	300 VDC

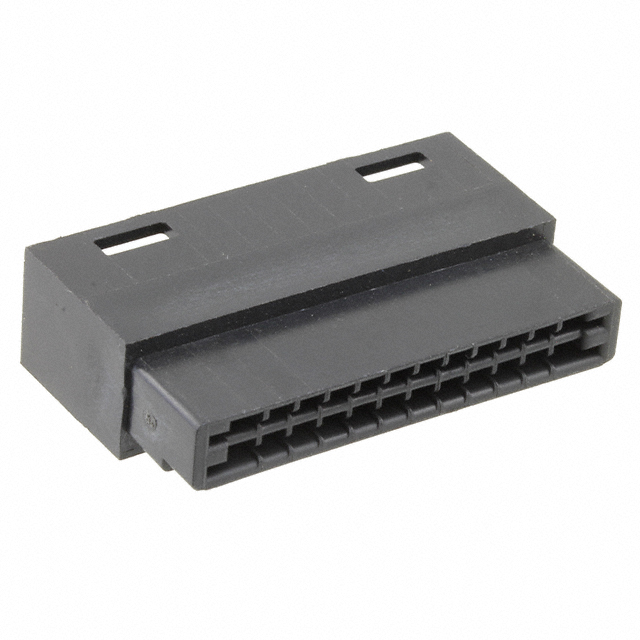

TE Connectivity AMP Connectors 88189-8	1.55 mm 1.75 mm	0.061 in	0.069 in	1.5 A	Contacts Not Included	24 AWG	22 AWG	Black	Housing for Male Contacts	2	24	0.1 "	2.54 mm	Positions Stamped	Detent Lock	105 ░C	-65 ░C	Discrete Wire FFC	Glass Filled Nylon Polyamide (PA)	UL94 V-0	0.015 mm	300 VDC

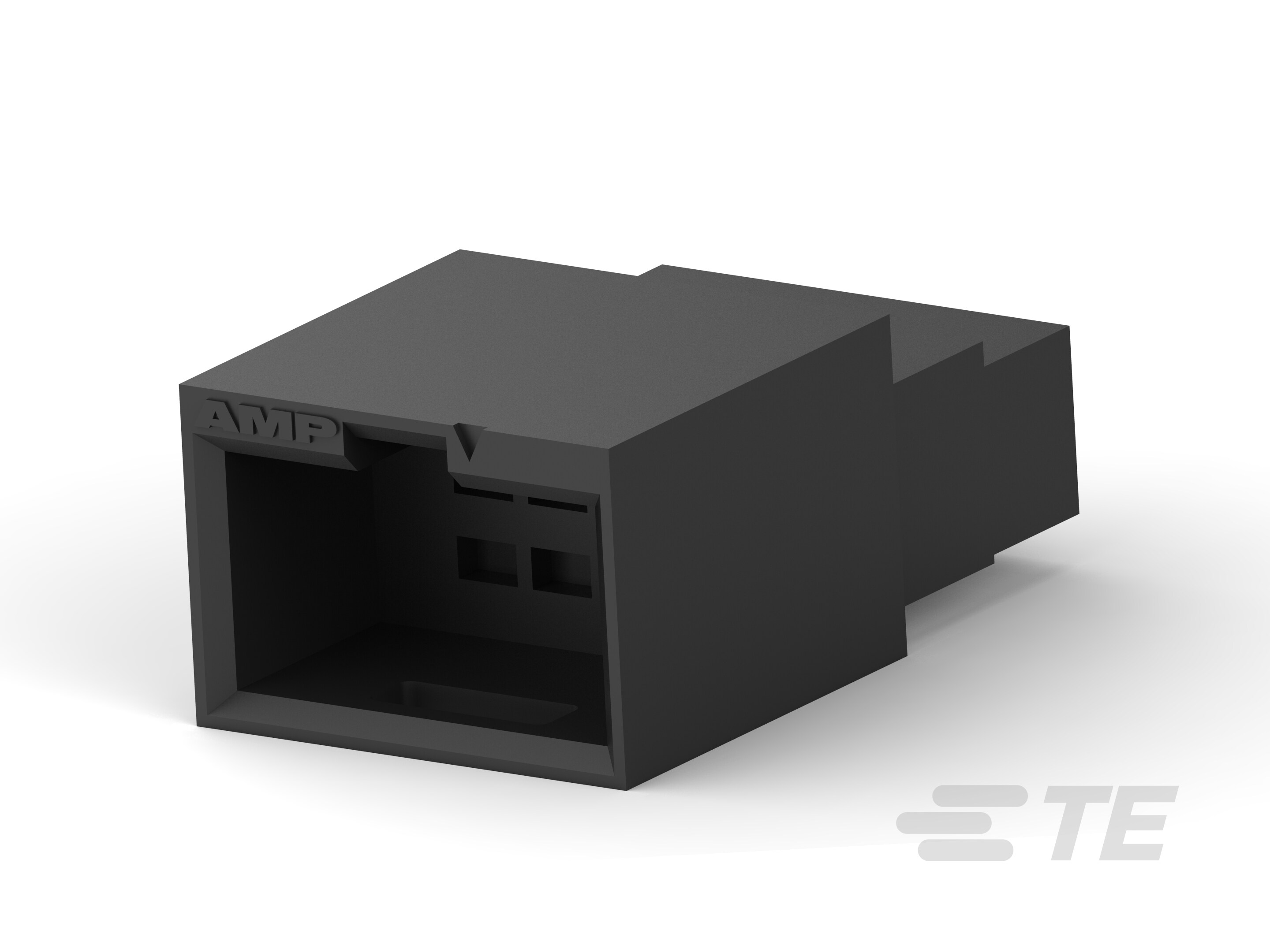

TE Connectivity AMP Connectors 3-88189-2	1.55 mm 1.75 mm	0.061 in	0.069 in	1.5 A	Contacts Not Included	24 AWG	22 AWG	Black	Housing for Male Contacts	2	6	0.1 "	2.54 mm	Positions Stamped	Detent Lock	105 ░C	-65 ░C	Discrete Wire FFC	Glass Filled Nylon Polyamide (PA)	UL94 V-0	0.015 mm	300 VDC
