MCH4021 Series

Catalog

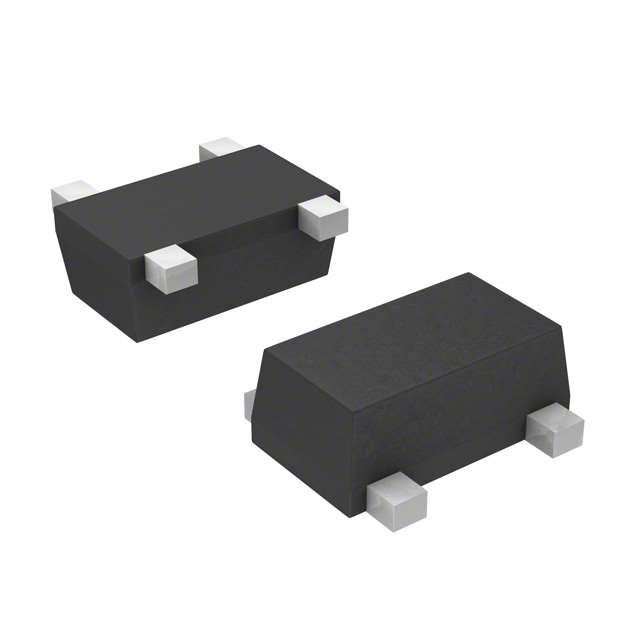

RF TRANS NPN 8V 16GHZ 4MCPH

Part	Supplier Device Package	Gain	Voltage - Collector Emitter Breakdown (Max) [Max]	Transistor Type	Current - Collector (Ic) (Max) [Max]	Operating Temperature	Package / Case	Mounting Type	Noise Figure (dB Typ @ f)	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Power - Max [Max]	Frequency - Transition
ON Semiconductor MCH4021-TL-H	4-MCPH	17.5 dBi	8 V	NPN	150 mA	150 °C	4-SMD Flat Leads	Surface Mount	1.2 dB	60	400 mW	16 GHz
