KX15-100 Series
Manufacturer: JAE Electronics
Beta
⌘K
CONNECTOR
| Part | Number of Positions | Height Above Board [z] | Height Above Board [z] | Pitch | Pitch | Number of Rows [custom] | Mounting Type | Features | Contact Finish Thickness | Contact Finish Thickness | Mated Stacking Heights | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | ||||||||||||

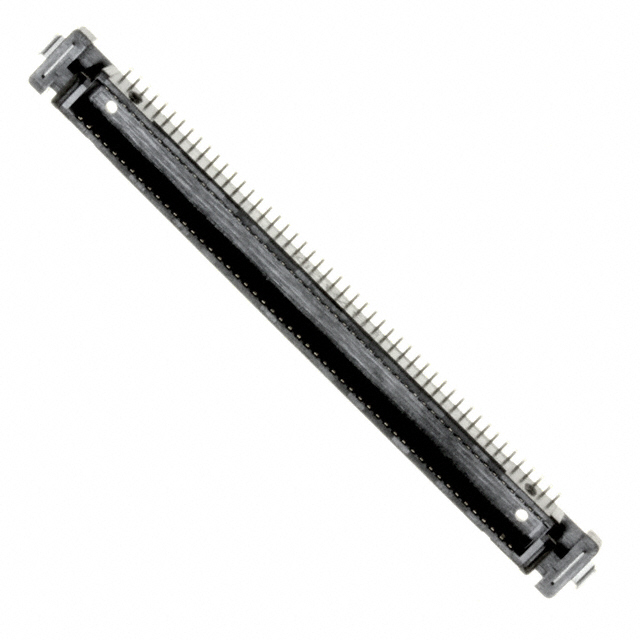

 JAE Electronics | 100 | 5.74 mm | 0.226 " | 0.8 mm | 0.031 in | 2 | Surface Mount | Board Guide Solder Retention | 0.1 Ám | 4 Áin | 6 mm 9 mm 12 mm 15 mm 18 mm | Gold |

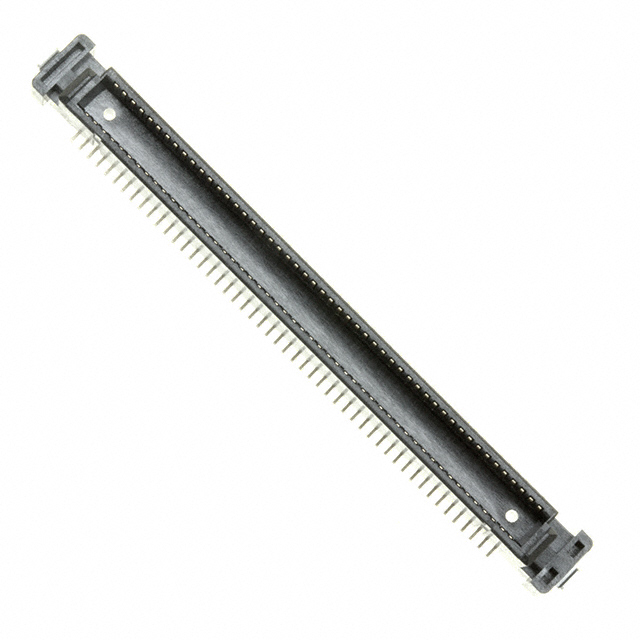

 JAE Electronics | 100 | 3.75 mm | 0.148 in | 0.8 mm | 0.031 in | 2 | Surface Mount | Board Guide Solder Retention | 0.1 Ám | 4 Áin | 4 mm 7 mm 10 mm 13 mm 16 mm | Gold |
