EEC-RG Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP 1F -20% +80% 3.6V T/H

Part	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance [Max]	Tolerance [Min]	Termination	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Voltage - Rated	Lead Spacing [x]	Lead Spacing [x]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max)

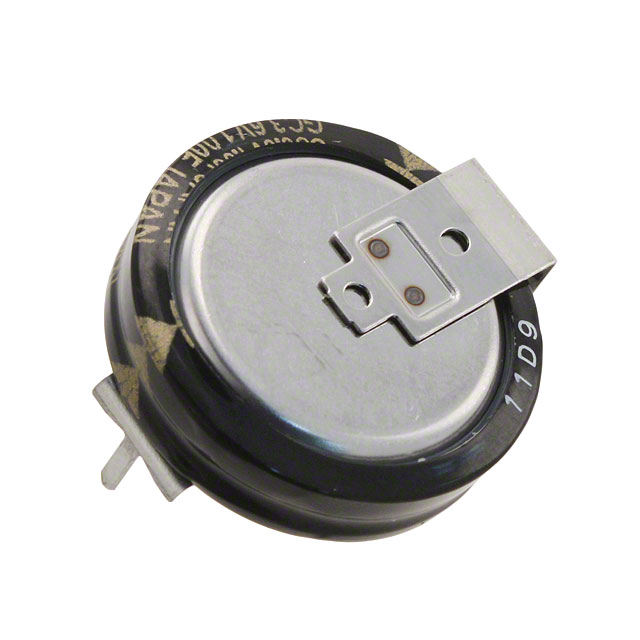

Panasonic Electronic Components EEC-RG0V105HN	Through Hole	6.5 mm	0.256 in	1 F	Axial Can - Horizontal	85 °C	-40 C	80 %	-20 %	PC Pins	0.748 "	19 mm	2000 Hrs	3.6 VDC	0.787 in	20 mm	20 Ohm

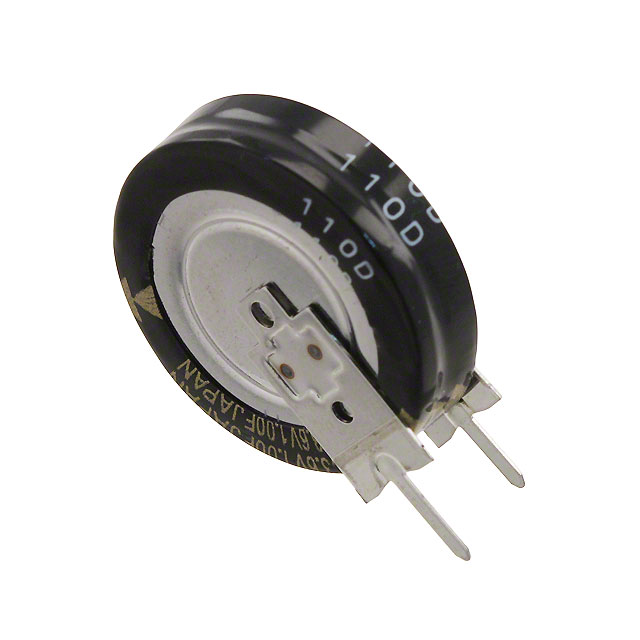

Panasonic Electronic Components EEC-RG0V105VN	Through Hole		21 mm	1 F	Axial Can - Vertical	85 °C	-40 C	80 %	-20 %	PC Pins			2000 Hrs	3.6 VDC			20 Ohm	0.827 "	0.197 "	5 mm	0.217 in	0.748 in	19 mm	5.5 mm
Panasonic Electronic Components EEC-RG0V105HA	Through Hole	6.5 mm	0.256 in	1 F	Axial Can - Horizontal	85 °C	-25 °C	80 %	-20 %	PC Pins	0.748 "	19 mm	2000 Hrs	3.6 VDC	0.787 in	20 mm
Panasonic Electronic Components EEC-RG0V155VN	Through Hole		21 mm	1.5 F	Axial Can - Vertical	85 °C	-40 C	80 %	-20 %	PC Pins			2000 Hrs	3.6 VDC			20 Ohm	0.827 "	0.197 "	5 mm	0.217 in	0.748 in	19 mm	5.5 mm
Panasonic Electronic Components EEC-RG0V224VA	Through Hole		5 mm	220 mF	Axial Can - Vertical	85 °C	-25 °C	80 %	-20 %	PC Pins	0.413 in	10.5 mm	2000 Hrs	3.6 VDC					0.197 "	5 mm					0.197 in

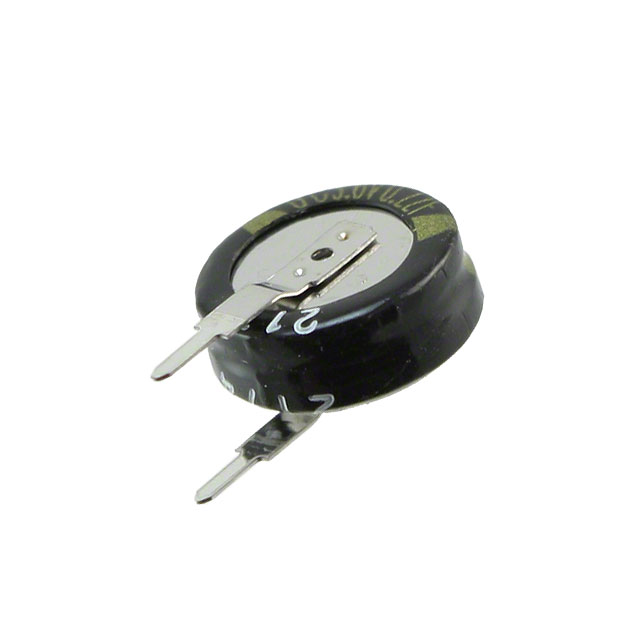

Panasonic Electronic Components EEC-RG0V224V	Through Hole	11.5 mm	0.453 in	220 mF	Axial Can - Vertical	85 °C	-25 °C	80 %	-20 %	PC Pins	0.413 in	10.5 mm	2000 Hrs	3.6 VDC					0.197 "	5 mm	0.197 "			5 mm
Panasonic Electronic Components EEC-RG0V105H	Through Hole	6.5 mm	0.256 in	1 F	Axial Can - Horizontal	85 °C	-25 °C	80 %	-20 %	PC Pins	0.748 "	19 mm	2000 Hrs	3.6 VDC	0.787 in	20 mm	20 Ohm

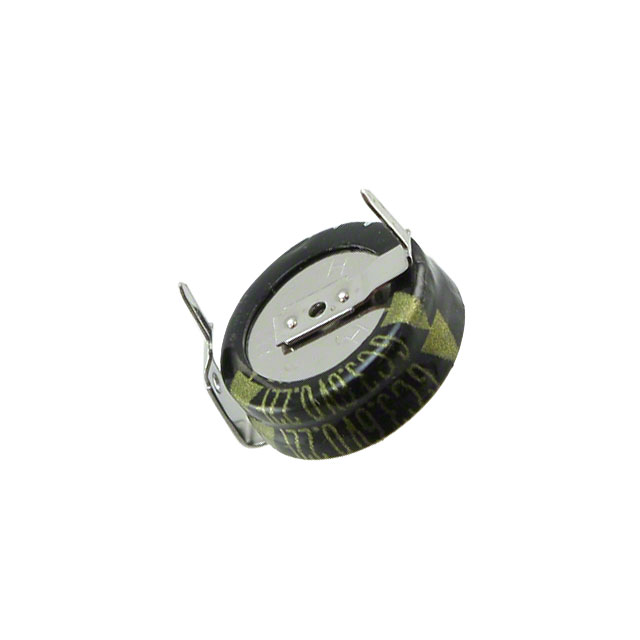

Panasonic Electronic Components EEC-RG0V224HN	Through Hole			220 mF	Axial Can - Horizontal	85 °C	-40 C	80 %	-20 %	PC Pins	0.413 in	10.5 mm	2000 Hrs	3.6 VDC					0.394 in	10 mm					0.236 "	6 mm
Panasonic Electronic Components EEC-RG0V155H	Through Hole	6.5 mm	0.256 in	1.5 F	Axial Can - Horizontal	85 °C	-25 °C	80 %	-20 %	PC Pins	0.748 "	19 mm	2000 Hrs	3.6 VDC	0.787 in	20 mm	20 Ohm
