88874 Series

Catalog

CONN HEADER R/A 10POS 2.54MM

Part	Contact Finish - Mating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Number of Positions	Number of Positions Loaded	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Number of Rows	Contact Length - Mating [x]	Contact Length - Mating	Insulation Height	Insulation Height	Features	Pitch - Mating	Pitch - Mating	Contact Shape	Mounting Type	Contact Type	Termination	Shrouding	Style	Contact Material	Insulation Color	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]
Amphenol ICC (FCI) 88874-410	Gold	Push-Pull	30 Áin	0.76 Ám	Polyester Glass Filled	10	All	UL94 V-0	2.54 mm	0.1 in	Header	2	0.23 in	5.84 mm	8.38 mm	0.33 in	Keying Slot	0.1 in	2.54 mm	Square	Through Hole Right Angle	Male Pin	Solder	Shrouded - 4 Wall	Board to Board Cable	Phosphor Bronze	Blue	2.67 mm	0.105 in
Amphenol ICC (FCI) 88874-016LF	Gold	Push-Pull	30 Áin	0.76 Ám	Polyester Glass Filled		All	UL94 V-0	2.54 mm	0.1 in	Header	2	0.23 in	5.84 mm	8.38 mm	0.33 in	Keying Slot	0.1 in	2.54 mm	Circular	Through Hole Right Angle	Male Pin	Solder	Shrouded - 4 Wall	Board to Board Cable	Phosphor Bronze	Blue	2.67 mm	0.105 in	16
Amphenol ICC (FCI) 88874-020	Gold	Push-Pull	30 Áin	0.76 Ám	Polyester Glass Filled	20	All	UL94 V-0	2.54 mm	0.1 in	Header	2	0.23 in	5.84 mm	8.38 mm	0.33 in	Keying Slot	0.1 in	2.54 mm	Circular	Through Hole Right Angle	Male Pin	Solder	Shrouded - 4 Wall	Board to Board Cable	Phosphor Bronze	Blue	2.67 mm	0.105 in
Amphenol ICC (FCI) 88874-010	Gold	Push-Pull	30 Áin	0.76 Ám	Polyester Glass Filled	10	All	UL94 V-0	2.54 mm	0.1 in	Header	2	0.23 in	5.84 mm	8.38 mm	0.33 in	Keying Slot	0.1 in	2.54 mm	Circular	Through Hole Right Angle	Male Pin	Solder	Shrouded - 4 Wall	Board to Board Cable	Phosphor Bronze	Blue	2.67 mm	0.105 in
Amphenol ICC (FCI) 88874-214	Gold	Push-Pull	30 Áin	0.76 Ám	Polyester Glass Filled	14	All	UL94 V-0	2.54 mm	0.1 in	Header	2	0.23 in	5.84 mm	8.38 mm	0.33 in	Keying Slot	0.1 in	2.54 mm	Circular	Through Hole Right Angle	Male Pin	Solder	Shrouded - 4 Wall	Board to Board Cable	Phosphor Bronze	Blue				0.15 in	3.81 mm
Amphenol ICC (FCI) 88874-414	Gold	Push-Pull	30 Áin	0.76 Ám	Polyester Glass Filled	14	All	UL94 V-0	2.54 mm	0.1 in	Header	2	0.23 in	5.84 mm	8.38 mm	0.33 in	Keying Slot	0.1 in	2.54 mm	Square	Through Hole Right Angle	Male Pin	Solder	Shrouded - 4 Wall	Board to Board Cable	Phosphor Bronze	Blue	2.67 mm	0.105 in
Amphenol ICC (FCI) 88874-634LF	Gold	Push-Pull	30 Áin	0.76 Ám	Polyester Glass Filled	34	All	UL94 V-0	2.54 mm	0.1 in	Header	2	0.23 in	5.84 mm	8.38 mm	0.33 in	Keying Slot	0.1 in	2.54 mm	Square	Through Hole Right Angle	Male Pin	Solder	Shrouded - 4 Wall	Board to Board Cable	Phosphor Bronze	Blue				0.15 in	3.81 mm

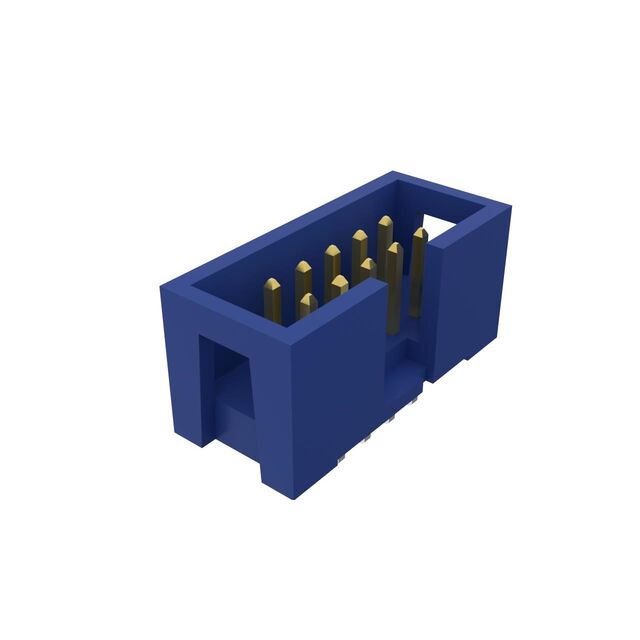

Amphenol ICC (FCI) 88874-610LF	Gold	Push-Pull	30 Áin	0.76 Ám	Polyester Glass Filled	10	All	UL94 V-0	2.54 mm	0.1 in	Header	2	0.23 in	5.84 mm	8.38 mm	0.33 in	Keying Slot	0.1 in	2.54 mm	Square	Through Hole Right Angle	Male Pin	Solder	Shrouded - 4 Wall	Board to Board Cable	Phosphor Bronze	Blue				0.15 in	3.81 mm
Amphenol ICC (FCI) 88874-026	Gold	Push-Pull	30 Áin	0.76 Ám	Polyester Glass Filled	26	All	UL94 V-0	2.54 mm	0.1 in	Header	2	0.23 in	5.84 mm	8.38 mm	0.33 in	Keying Slot	0.1 in	2.54 mm	Circular	Through Hole Right Angle	Male Pin	Solder	Shrouded - 4 Wall	Board to Board Cable	Phosphor Bronze	Blue	2.67 mm	0.105 in
Amphenol ICC (FCI) 88874-134	Gold GXT™	Push-Pull	30 Áin	0.76 Ám	Polyester Glass Filled	34	All	UL94 V-0	2.54 mm	0.1 in	Header	2	0.23 in	5.84 mm	8.38 mm	0.33 in	Keying Slot	0.1 in	2.54 mm	Circular	Through Hole Right Angle	Male Pin	Solder	Shrouded - 4 Wall	Board to Board Cable	Phosphor Bronze	Blue	2.67 mm	0.105 in
