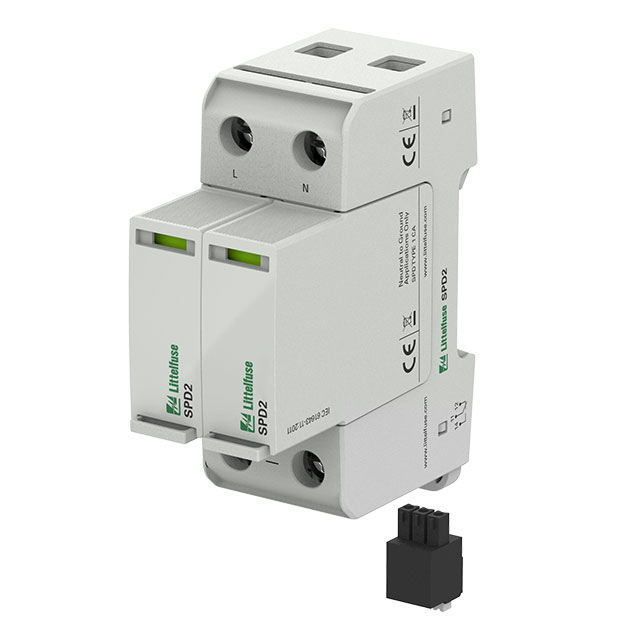

SPD2-150-1P1-R Series

"SPD,DIN RAIL,TYPE 2,1P1,150V,RC"

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

"SPD,DIN RAIL,TYPE 2,1P1,150V,RC"

Part	Number of Poles	Form	Type	Features	Voltage - Protection Level (VP) (2416)	Voltage - Protection Rating (VPR)	Mounting Type	Current - Short Circuit Rating (SCCR)	Voltage - Continuous Operating (Max) (MCOV) [Max]	Current - Discharge (Nom) (8/20µS)	Current - Discharge (Max) (8/20µS) [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Littelfuse/Commercial Vehicle Products SPD2-150-1P1-R	2	Base + Module	Type 1 Type 2	Remote Signaling Contacts Thermally Protected	1.5 kV	1 kV	DIN Rail	200 kA	305 VAC	40 kA	65 kA	-40 °C	80 C

Catalog

"SPD,DIN RAIL,TYPE 2,1P1,150V,RC"

Description

Surge protection devices (SPDs) provide equipment protection from overvoltage events lasting micro-seconds. By limiting the overvoltage to the equipment during these events, costly equipment damage and downtime can be mitigated. The surge protection devices for the 1+1 configuration are available for 60 V to 277 V nominal voltage sub-distribution board applications.
