77142 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

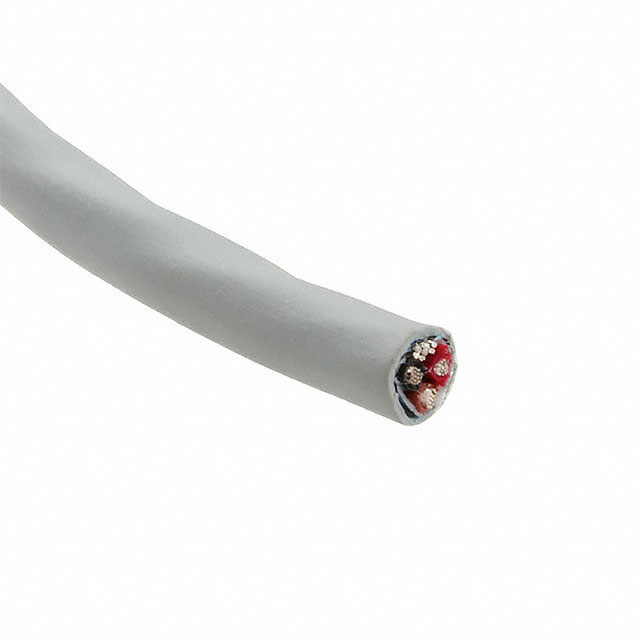

CABLE 3COND 14AWG SLATE SHLD
| Part | Shield Coverage | Shield Material | Voltage | Cable Type | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Features | Length [x] | Length [x] | Wire Gauge | Conductor Insulation | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 600 V | Multi-Conductor | 3 | -50 °C | 105 ░C | Polyphenylene Ether Modified (mPPE) | Copper Tinned | 0.813 mm | 0.032 in | Slate | 41 | 30 | 0.279 in | 7.09 mm | ISO 10993 | Biological Compatibility | 100 ft | 30.5 m | 14.5 AWG | Polyphenylene Ether Modified (mPPE) | Foil |
