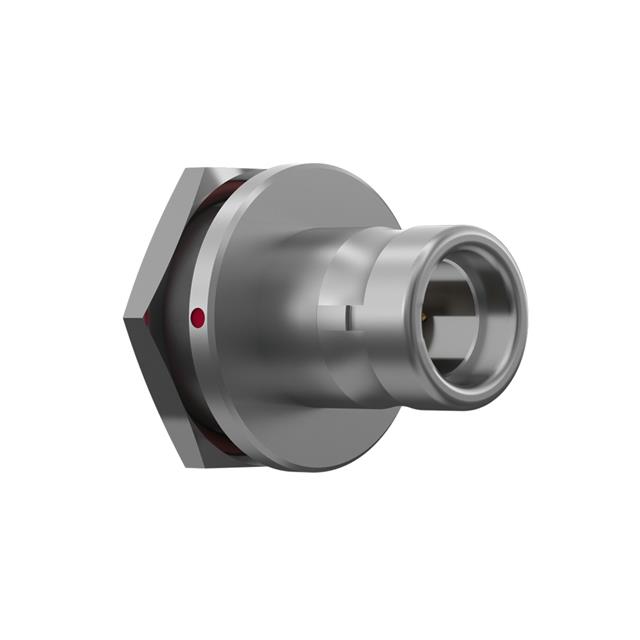

AD3K0C-P Series
Manufacturer: ODU
Beta
⌘K
ODU MINI-SNAP PLUG, PANEL MOUNT,
| Part | Shielding | Ingress Protection | Connector Type | Mounting Feature | Number of Positions | Shell Finish | Insert Material | Current Rating (Amps) | Applications | Color | Shell Size - Insert | Contact Material | Contact Finish - Mating | Shell Material | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Voltage Rating | Fastening Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Shielded | IP68 - Dust Tight Waterproof | Plug Male Pins | Bulkhead - Rear Side Nut | 20 | Chrome over Nickel | Polyetheretherketone (PEEK) | 7.5 A | Industrial Medical Military Testing Equipment & Measurement | Silver | 3 TPI | Brass | Gold | Brass | 0 | 120 °C | -40 C | Metal | 333 V | Push-Pull | Panel Mount | |
Shielded | IP68 - Dust Tight Waterproof | Plug Male Pins | Bulkhead - Rear Side Nut | 14 | Chrome over Nickel | Polyetheretherketone (PEEK) | 7.5 A | Industrial Medical Military Testing Equipment & Measurement | Silver | 3 TPI | Brass | Gold | Brass | 0 | 120 °C | -40 C | Metal | 450 V | Push-Pull | Panel Mount |
