6657S Series
Manufacturer: Bourns Inc.
Beta
⌘K

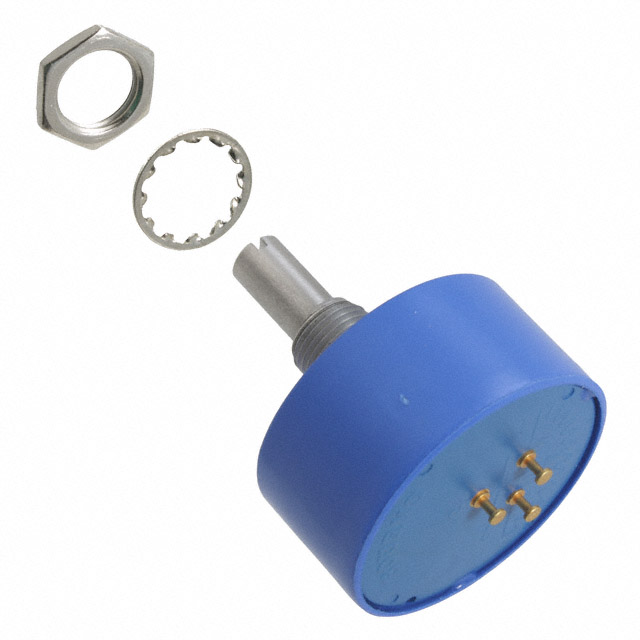

POT 10K OHM 1.5W PLASTIC LINEAR
| Part | Size - Body [diameter] | Size - Body [diameter] | Power (Watts) | Tolerance | Number of Gangs | Mounting Type | Temperature Coefficient | Termination Style | Number of Turns | Resistive Material | Rotation | Resistance (Ohms) | Adjustment Type | Built in Switch | Taper | Actuator Type | Actuator Length [x] | Actuator Length [x] | Bushing Thread | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1.313 " | 33.34 mm | 1.5 W | 10 % | 1 | Panel Mount | 500 ppm/°C | Solder Turret | 1 | Conductive Plastic | Continuous | 10k | User Defined | None | Linear | Slotted | 0.875 in | 22.23 mm | 3/8-32 | 0.2497 in | 6.34 mm | |
Bourns Inc. | 1.313 " | 33.34 mm | 1.5 W | 10 % | 1 | Panel Mount | 500 ppm/°C | Solder Turret | 1 | Conductive Plastic | Continuous | User Defined | None | Linear | Slotted | 0.875 in | 22.23 mm | 3/8-32 | 0.2497 in | 6.34 mm | 20 kOhms |
