158120 Series

Catalog

CABLE 20POS SOCKET TO SOCKET 3"

Part	Shielding	Length [x]	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Cable Termination	Pitch - Cable [custom]	Pitch - Cable [custom]	Number of Rows [custom]	Contact Finish	Pitch [x]	Pitch [x]	Color	Wire Type	Wire Gauge	Contact Type	Features	Row Spacing	Row Spacing	Mounting Type	Length	Length	Length
3M Electronic Specialty 158120-1100-HF625/20-D-3	Unshielded	76.2 mm	3 in	0.25 ft	0.079 "	2 mm	30 Áin	0.76 Ám	Socket to Socket	20	IDC	0.039 in	1 mm	2	Gold

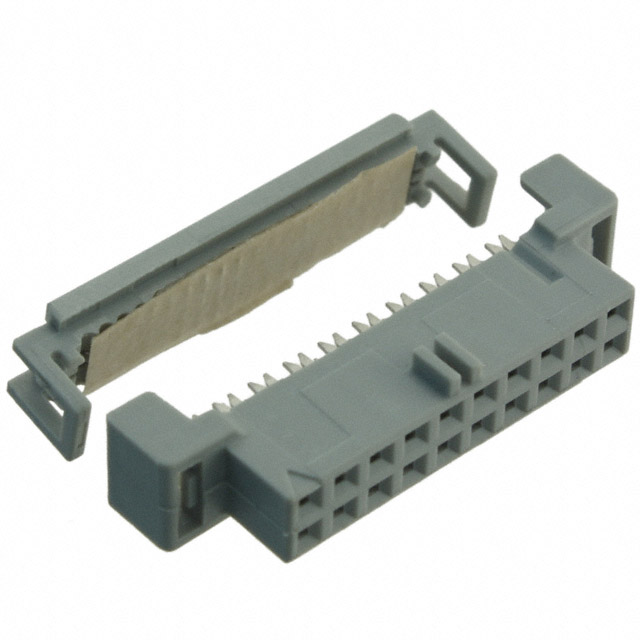

3M Electronic Specialty 158120-1100							30 Áin	0.76 Ám	Socket	20	IDC			2	Gold	0.079 in	2 mm	Gray	Ribbon Cable	28 AWG	Female Socket	Feed Through	2 mm	0.079 in	Free Hanging (In-Line)
3M Electronic Specialty 158120-1100-3625/20-D-6	Unshielded				0.079 "	2 mm	30 Áin	0.76 Ám	Socket to Socket	20	IDC	0.039 in	1 mm	2	Gold											152.4 mm	0.5 '	6 "
3M Electronic Specialty 158120-1100-3625/20-S-6	Unshielded				0.079 "	2 mm	30 Áin	0.76 Ám	Socket to Cable	20	IDC	0.039 in	1 mm	2	Gold											152.4 mm	0.5 '	6 "
