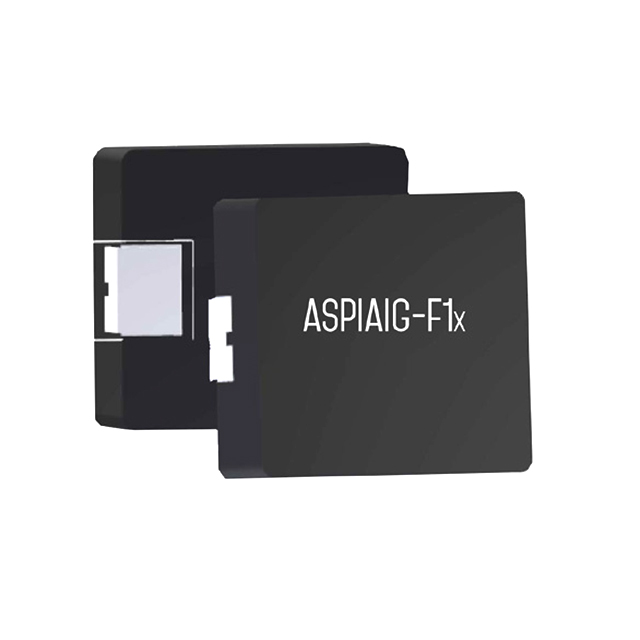

ASPIAIG-F1 Series

Catalog

POWER INDUCTORS - SMD FIXED IND 7UH 11.2A 12.3MOHM AEC

Part	Package / Case	Tolerance	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	DC Resistance (DCR) [Max]	Type	Current - Saturation (Isat)	Inductance	Shielding	Ratings	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	DC Resistance (DCR)	Height - Seated (Max)	Height - Seated (Max) [Max]
Abracon LLC ASPIAIG-F1265-7R0M-T	Nonstandard	20 %	1265	12.5 mm	13.5 mm	0.531 in	0.492 "	125 °C	-40 C	11.2 A	12.3 mOhm	Molded	17.7 A	7 µH	Shielded	AEC-Q200	100 kHz	6.5 mm	0.256 in	Surface Mount
Abracon LLC ASPIAIG-F1265-R56M-T	Nonstandard	20 %	1265	12.5 mm	13.5 mm	0.531 in	0.492 "	125 °C	-40 C	37 A		Molded	58 A	560 nH	Shielded	AEC-Q200	100 kHz	6.5 mm	0.256 in	Surface Mount	1.2 mOhm
Abracon LLC ASPIAIG-F1040-330M-T	Nonstandard	20 %	1040	10 mm	11 mm	0.433 in	0.394 in	125 °C	-40 C	3.5 A		Molded	5 A	33 µH	Shielded	AEC-Q200	100 kHz			Surface Mount	112 mOhm	4 mm	0.157 in
Abracon LLC ASPIAIG-F1040-R45M-T	Nonstandard	20 %	1040	10 mm	11 mm	0.433 in	0.394 in	125 °C	-40 C	29 A	1.5 mOhm	Molded	45 A	450 nH	Shielded	AEC-Q200	100 kHz			Surface Mount		4 mm	0.157 in
Abracon LLC ASPIAIG-F1265-330M-T	Nonstandard	20 %	1265	12.5 mm	13.5 mm	0.531 in	0.492 "	125 °C	-40 C	8 A	58 mOhm	Molded	11 A	33 µH	Shielded	AEC-Q200	100 kHz	6.5 mm	0.256 in	Surface Mount
