TBLH10 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

TERMINAL BLOCK, SCREWLESS, HIGH

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material - Plating	Housing Material	Mating Orientation	Number of Levels	Positions Per Level	Wire Gauge [Max]	Wire Gauge [Min]	Features	Wire Termination	Color	Voltage	Pitch	Pitch	Mounting Type	Current	Positions Per Level [custom]
Same Sky (Formerly CUI Devices) TBLH10-500-11BK	130 °C	-40 C	Copper Alloy - Tin Plated	Liquid Crystal Polymer (LCP)	Horizontal with Board	1	11	24 AWG	16 AWG	Push Button Actuated	Screwless - Push Button Clamp	Black	300 VDC	0.197 in	5 mm	Through Hole	10 A
Same Sky (Formerly CUI Devices) TBLH10-500-03BK	130 °C	-40 C	Copper Alloy - Tin Plated	Liquid Crystal Polymer (LCP)	Horizontal with Board	1	3	24 AWG	16 AWG	Push Button Actuated	Screwless - Push Button Clamp	Black	300 VDC	0.197 in	5 mm	Through Hole	10 A

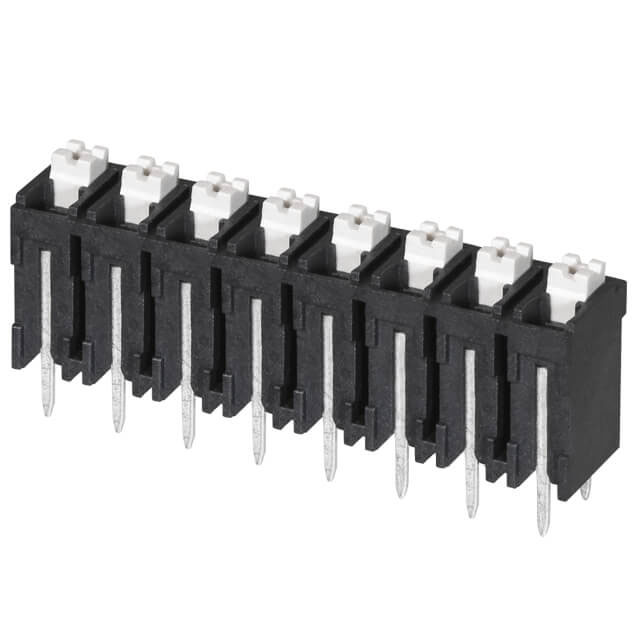

Same Sky (Formerly CUI Devices) TBLH10V-500-08BK	130 °C	-40 C	Copper Alloy - Tin Plated	Liquid Crystal Polymer (LCP)	Vertical with Board	1	8	24 AWG	16 AWG	Push Button Actuated	Screwless - Push Button Clamp	Black	300 VDC	0.197 in	5 mm	Through Hole	10 A

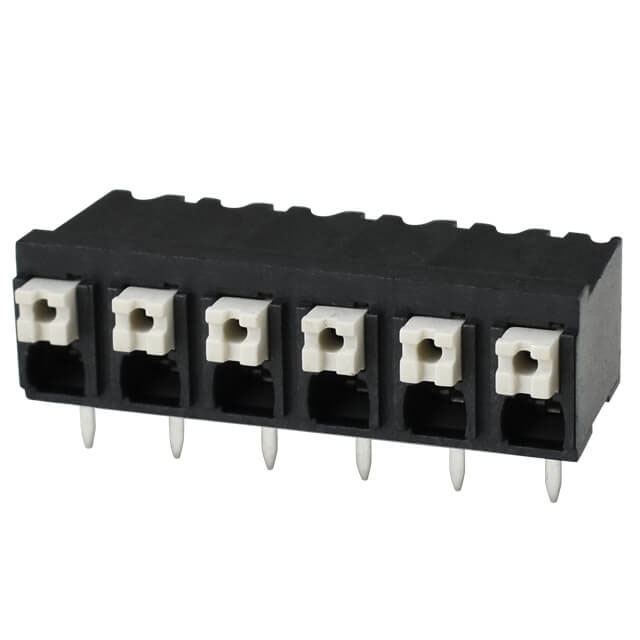

Same Sky (Formerly CUI Devices) TBLH10-500-06BK	130 °C	-40 C	Copper Alloy - Tin Plated	Liquid Crystal Polymer (LCP)	Horizontal with Board	1	6	24 AWG	16 AWG	Push Button Actuated	Screwless - Push Button Clamp	Black	300 VDC	0.197 in	5 mm	Through Hole	10 A

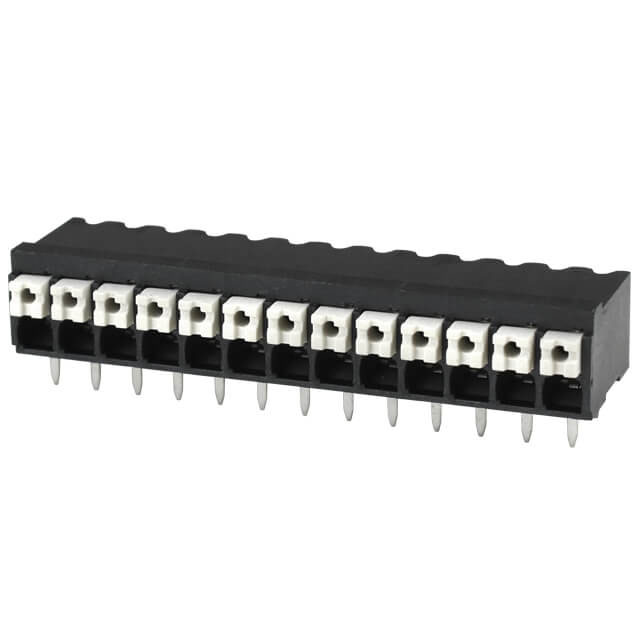

Same Sky (Formerly CUI Devices) TBLH10-350-13BK	130 °C	-40 C	Copper Alloy - Tin Plated	Liquid Crystal Polymer (LCP)	Horizontal with Board	1	13	24 AWG	16 AWG	Push Button Actuated	Screwless - Push Button Clamp	Black	300 VDC	0.138 "	3.5 mm	Through Hole	10 A

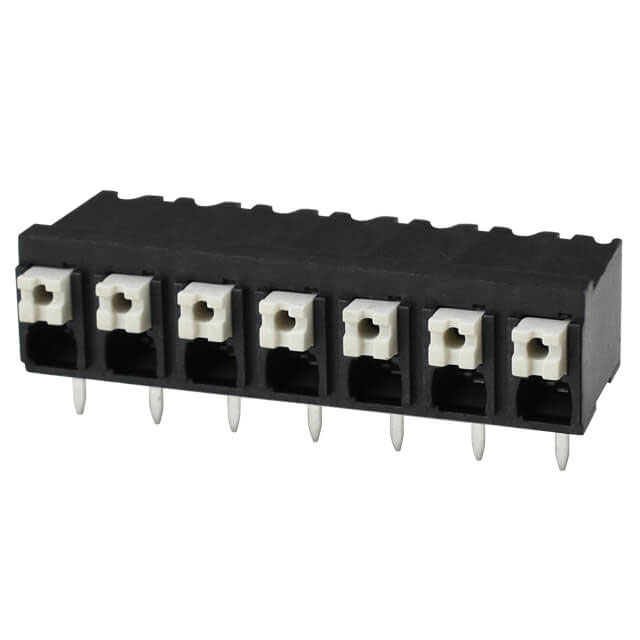

Same Sky (Formerly CUI Devices) TBLH10-500-07BK	130 °C	-40 C	Copper Alloy - Tin Plated	Liquid Crystal Polymer (LCP)	Horizontal with Board	1		24 AWG	16 AWG	Push Button Actuated	Screwless - Push Button Clamp	Black	300 VDC	0.197 in	5 mm	Through Hole	10 A	7
