P-2000 Series

Manufacturer: Nidec Components Corporation

Catalog

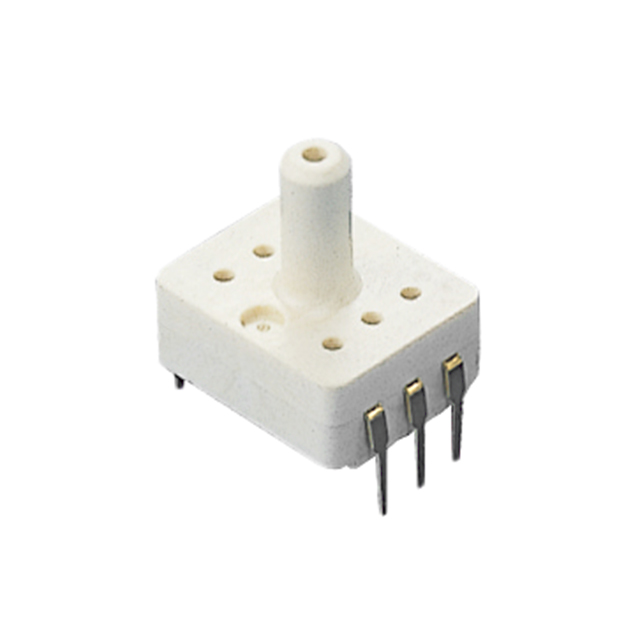

SENSOR 71.07PSIG 0.13" .09V 6DIP

Part	Port Size	Port Size	Port Size	Termination Style	Mounting Type	Pressure Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Port Style	Features	Accuracy	Applications	Maximum Pressure	Maximum Pressure	Output [Max]	Package / Case	Package / Case	Package / Case	Output Type	Operating Pressure	Operating Pressure	Maximum Pressure [Max]
Nidec Components Corporation P-2000-502G-15-BN	0.13 in	3.2 mm	Male Tube	PC Pin	Through Hole	Gauge	80 °C	-20 ░C	6-DIP	Barbless	Temperature Compensated	0.15 %	Board Mount	981 kPa	142.28 PSI	90 mV	12 mm	0.472 in	6-DIP Top Port	Analog Voltage
Nidec Components Corporation P-2000-103G-15-BN	0.13 in	3.2 mm	Male Tube	PC Pin	Through Hole	Gauge	80 °C	-20 ░C	6-DIP	Barbless	Temperature Compensated	0.15 %	Board Mount	1471 kPa	213.35 PSI	90 mV	12 mm	0.472 in	6-DIP Top Port	Analog Voltage	142.28 PSI	981 kPa
Nidec Components Corporation P-2000-102G-15-BN	0.13 in	3.2 mm	Male Tube	PC Pin	Through Hole	Gauge	80 °C	-20 ░C	6-DIP	Barbless	Temperature Compensated	0.15 %	Board Mount	196 kPa	28.43 PSI	90 mV	12 mm	0.472 in	6-DIP Top Port	Analog Voltage	14.23 PSI	98.1 kPa
Nidec Components Corporation P-2000-502G-15-AN	0.13 in	3.2 mm	Male Tube	PC Pin	Through Hole	Gauge	80 °C	-20 ░C	6-DIP	Barbless	Temperature Compensated	0.15 %	Board Mount	981 kPa	142.28 PSI	90 mV			6-DIP	Analog Voltage
Nidec Components Corporation P-2000-102G-15-AN	0.13 in	3.2 mm	Male Tube	PC Pin	Through Hole	Gauge	80 °C	-20 ░C	6-DIP	Barbless	Temperature Compensated	0.15 %	Board Mount	196 kPa	28.43 PSI	90 mV			6-DIP	Analog Voltage	14.23 PSI	98.1 kPa
Nidec Components Corporation P-2000-702G-15-BN	0.13 in	3.2 mm	Male Tube	PC Pin	Through Hole	Gauge	80 °C	-20 ░C	6-DIP	Barbless	Temperature Compensated	0.15 %	Board Mount	1373 kPa		90 mV	12 mm	0.472 in	6-DIP Top Port	Analog Voltage	99.5 PSI	686 kPa	199.14 PSI
Nidec Components Corporation P-2000-352G-15-AN	0.13 in	3.2 mm	Male Tube	PC Pin	Through Hole	Gauge	80 °C	-20 ░C	6-DIP	Barbless	Temperature Compensated	0.15 %	Board Mount	686 kPa	99.5 PSI	90 mV			6-DIP	Analog Voltage	49.75 PSI	343 kPa
Nidec Components Corporation P-2000-101G-15-BN	0.13 in	3.2 mm	Male Tube	PC Pin	Through Hole	Gauge	80 °C	-20 ░C	6-DIP	Barbless	Temperature Compensated	0.15 %	Board Mount	19.6 kPa	2.84 PSI	50 mV	12 mm	0.472 in	6-DIP Top Port	Analog Voltage	1.42 PSI	9.81 kPa
Nidec Components Corporation P-2000-101G-15-AN	0.13 in	3.2 mm	Male Tube	PC Pin	Through Hole	Gauge	80 °C	-20 ░C	6-DIP	Barbless	Temperature Compensated	0.15 %	Board Mount	19.6 kPa	2.84 PSI	50 mV			6-DIP	Analog Voltage	1.42 PSI	9.81 kPa
Nidec Components Corporation P-2000-103G-15-AN	0.13 in	3.2 mm	Male Tube	PC Pin	Through Hole	Gauge	80 °C	-20 ░C	6-DIP	Barbless	Temperature Compensated	0.15 %	Board Mount	1471 kPa	213.35 PSI	90 mV			6-DIP	Analog Voltage	142.28 PSI	981 kPa
