DBA6171 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

DIPOLE,SMAM,SWIVEL,617-7125MHZ,INDOOR TE

Part	VSWR	Gain	Power - Max [Max]	RF Family/Standard	Mounting Type	Frequency (Center/Band)	Height (Max) [z]	Height (Max) [z]	Applications	Frequency Group	Antenna Type	Frequency Range [Min]	Frequency Range [Max]	Number of Bands	Ingress Protection

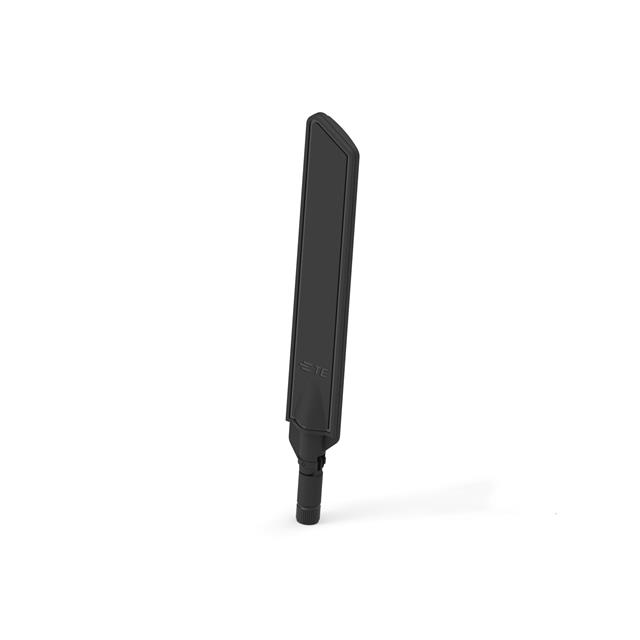

TE Connectivity AMP Connectors DBA6171C1-BSMAM	2 2.3 2.5 3.5	0 dBi 1 dBi 2.1 dBi 3.9 dBi 4.4 dBic	5 W	Cellular	Connector Mount	1.955 GHz 2.5 GHz 3.75 GHz 5.575 GHz 657.5 MHz 829 MHz 1516 MHz	7.244 in	184 mm	4G 5G LTE	Wide Band	Whip Straight	1.427 GHz 1.71 GHz 2.3 GHz 3.3 GHz 5.15 GHz 617 MHz 698 MHz	1.606 GHz 2.2 GHz 2.7 GHz 4.2 GHz 6 GHz 698 MHz 960 MHz	7
TE Connectivity AMP Connectors DBA6171C3-BSMAM	2 2.3 2.5 3.5	0 dBi 1 dBi 2.1 dBi 3.9 dBi 4.4 dBic	5 W	Cellular	Connector Mount	1.955 GHz 2.5 GHz 3.75 GHz 5.575 GHz 657.5 MHz 829 MHz 1516 MHz	7.283 in	185 mm	4G 5G LTE	Wide Band	Whip Straight	1.427 GHz 1.71 GHz 2.3 GHz 3.3 GHz 5.15 GHz 617 MHz 698 MHz	1.606 GHz 2.2 GHz 2.7 GHz 4.2 GHz 6 GHz 698 MHz 960 MHz	7	IP67

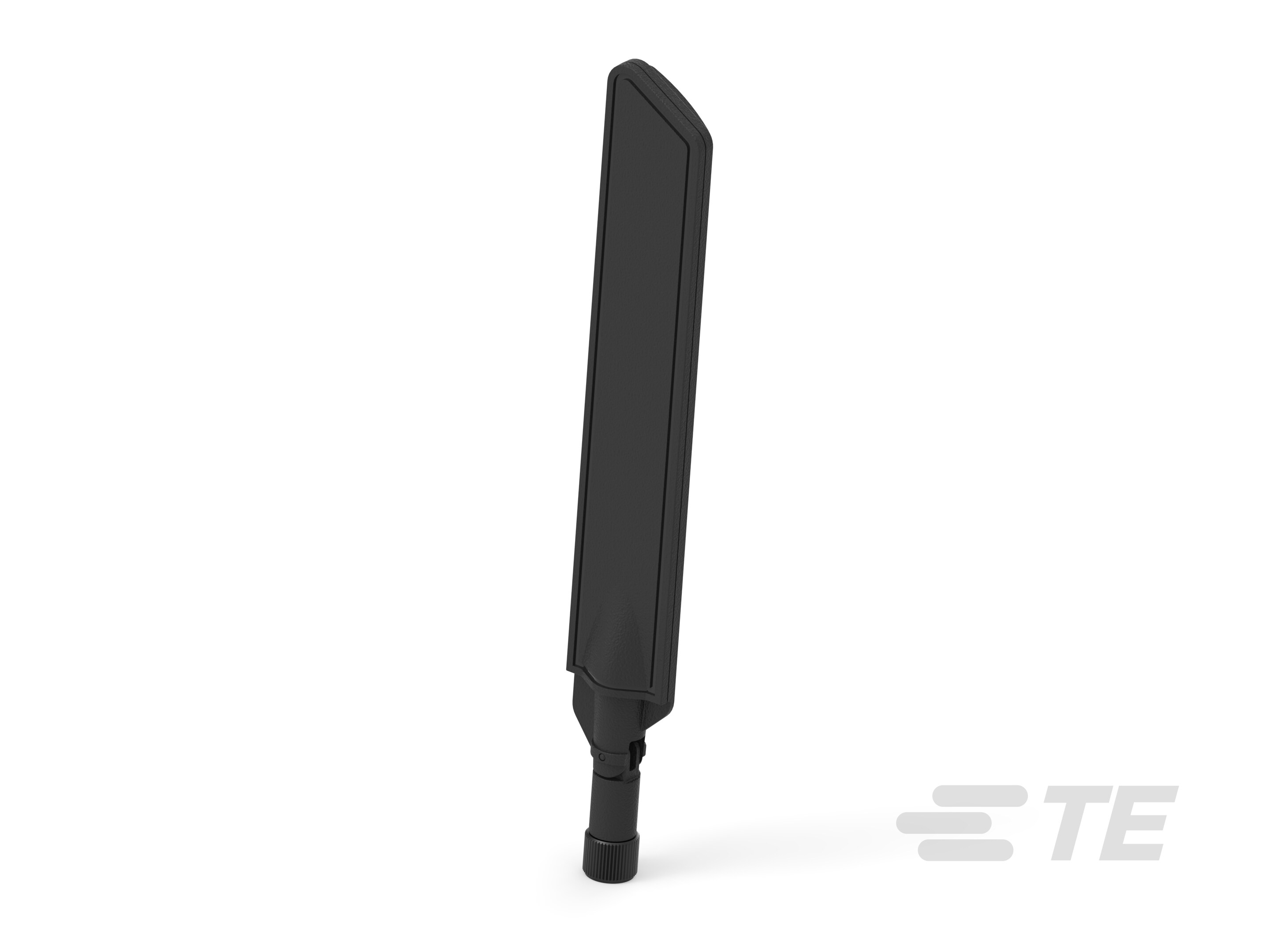

TE Connectivity AMP Connectors DBA6171C4-BSMAM	2 2.3 2.5 3.5	0 dBi 1 dBi 2.1 dBi 3.9 dBi 4.4 dBic	5 W	Cellular	Connector Mount	1.955 GHz 2.5 GHz 3.75 GHz 5.575 GHz 657.5 MHz 829 MHz 1516 MHz	7.283 in	185 mm	4G 5G LTE	Wide Band	Whip Straight	1.427 GHz 1.71 GHz 2.3 GHz 3.3 GHz 5.15 GHz 617 MHz 698 MHz	1.606 GHz 2.2 GHz 2.7 GHz 4.2 GHz 6 GHz 698 MHz 960 MHz	7	IP67
TE Connectivity AMP Connectors DBA6171C2-BSMAM	2 2.3 2.5 3.5	0 dBi 1 dBi 2.1 dBi 3.9 dBi 4.4 dBic	5 W	Cellular	Connector Mount	1.955 GHz 2.5 GHz 3.75 GHz 5.575 GHz 657.5 MHz 829 MHz 1516 MHz	7.244 in	184 mm	4G 5G LTE	Wide Band	Whip Straight	1.427 GHz 1.71 GHz 2.3 GHz 3.3 GHz 5.15 GHz 617 MHz 698 MHz	1.606 GHz 2.2 GHz 2.7 GHz 4.2 GHz 6 GHz 698 MHz 960 MHz	7
TE Connectivity AMP Connectors DBA6171C1-BSMAM	2 2.3 2.5 3.5	0 dBi 1 dBi 2.1 dBi 3.9 dBi 4.4 dBic	5 W	Cellular	Connector Mount	1.955 GHz 2.5 GHz 3.75 GHz 5.575 GHz 657.5 MHz 829 MHz 1516 MHz	7.244 in	184 mm	4G 5G LTE	Wide Band	Whip Straight	1.427 GHz 1.71 GHz 2.3 GHz 3.3 GHz 5.15 GHz 617 MHz 698 MHz	1.606 GHz 2.2 GHz 2.7 GHz 4.2 GHz 6 GHz 698 MHz 960 MHz	7
TE Connectivity AMP Connectors DBA6171C3-BSMAM	2 2.3 2.5 3.5	0 dBi 1 dBi 2.1 dBi 3.9 dBi 4.4 dBic	5 W	Cellular	Connector Mount	1.955 GHz 2.5 GHz 3.75 GHz 5.575 GHz 657.5 MHz 829 MHz 1516 MHz	7.283 in	185 mm	4G 5G LTE	Wide Band	Whip Straight	1.427 GHz 1.71 GHz 2.3 GHz 3.3 GHz 5.15 GHz 617 MHz 698 MHz	1.606 GHz 2.2 GHz 2.7 GHz 4.2 GHz 6 GHz 698 MHz 960 MHz	7	IP67
TE Connectivity AMP Connectors DBA6171C2-BSMAM	2 2.3 2.5 3.5	0 dBi 1 dBi 2.1 dBi 3.9 dBi 4.4 dBic	5 W	Cellular	Connector Mount	1.955 GHz 2.5 GHz 3.75 GHz 5.575 GHz 657.5 MHz 829 MHz 1516 MHz	7.244 in	184 mm	4G 5G LTE	Wide Band	Whip Straight	1.427 GHz 1.71 GHz 2.3 GHz 3.3 GHz 5.15 GHz 617 MHz 698 MHz	1.606 GHz 2.2 GHz 2.7 GHz 4.2 GHz 6 GHz 698 MHz 960 MHz	7
TE Connectivity AMP Connectors DBA6171C4-BSMAM	2 2.3 2.5 3.5	0 dBi 1 dBi 2.1 dBi 3.9 dBi 4.4 dBic	5 W	Cellular	Connector Mount	1.955 GHz 2.5 GHz 3.75 GHz 5.575 GHz 657.5 MHz 829 MHz 1516 MHz	7.283 in	185 mm	4G 5G LTE	Wide Band	Whip Straight	1.427 GHz 1.71 GHz 2.3 GHz 3.3 GHz 5.15 GHz 617 MHz 698 MHz	1.606 GHz 2.2 GHz 2.7 GHz 4.2 GHz 6 GHz 698 MHz 960 MHz	7	IP67
