KW2CFLNM Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

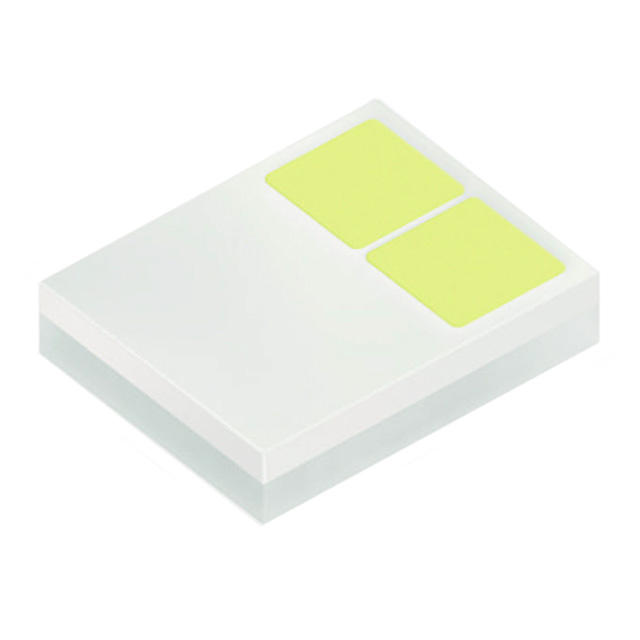

LED OSLON WHITE SMD
| Part | Thermal Resistance of Package | Supplier Device Package | Height - Seated (Max) [Max] | Height - Seated (Max) | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Voltage - Forward (Vf) (Typ) | Flux @ 25°C, Current - Test [Max] | Flux @ 25°C, Current - Test [Min] | Current - Max [Max] | Color | Current - Test | Lumens/Watt @ Current - Test | Viewing Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 3.3 °C/W | SMD | 0.03 in | 0.77 mm | Surface Mount | 0.122 " | 0.097 " | 3.1 mm | 2.46 mm | 2-SMD No Lead Exposed Pad | 6.05 V | 849 lm | 560 lm | 1.5 A | White | 1 A | 117 lm/W | 120 ° |
